Rigging procedures
Flying
Flying a vertical array with A15i-BUMP
Type of deployment own array
Rigging accessories A15i-BUMP
A15i Wide/Focus / KS21i rigging plates
2 x Ø12 mm shackle WLL 1 t (provided)
M-BARi (optional)
A15i-TILT (optional)
Additional accessories M6x18 rigging screws (provided)
M6 nuts (provided)
T30 Torx bit
Min number of operators 3

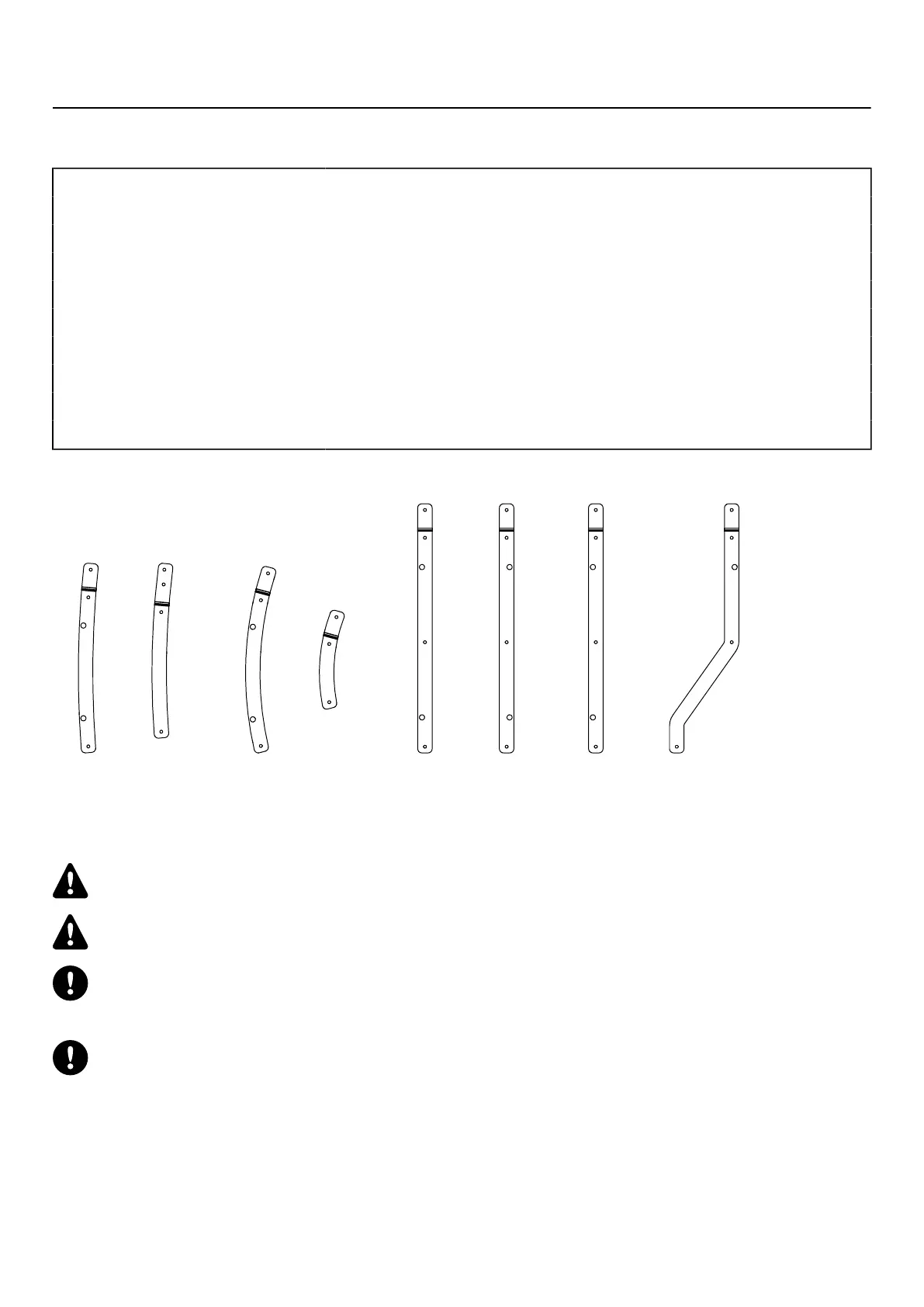

Rigging plates
x2 x2
x2 x2
x2 x2
x2 x2
A15iFOCUS-LINK
Rigging plates
for A15i Focus
A15iWIDE-LINK
Rigging plates
for A15i Wide
KS21i-LINK
Rigging plates
for KS21i
KS21i-SLINK
Rigging plates for
A15i under KS21i
Risk of falling objects
Verify that no unattached items remain on the product or assembly.
Secondary safety
Use available holes on the rigging accessories to implement a secondary safety.
Flying hybrid arrays
The KS21i subwoofers must always be on top of the array.
Refer to Soundvision for maximum congurations.
Array orientation
Under A15i-BUMP, the enclosure HF section can be oriented both ways.
Under KS21i, the HF section is on the same side as the subwoofer vent.
A15i owner's manual (EN) version 1.0 53
