L-Acoustics A15i Series User Manual

Electro-acoustical description
Connectors
Each set of terminal block connectors (+ and −) can be used interchangeably as IN or LINK connector.
FOR OTHER CONFIGURATIONS, CHECK MECHANICAL SAFETY WITH
SOUNDVISION SOFTWARE.
USE ONLY WITH L-ACOUSTICS AMPLIFIED CONTROLLERS.
Znom. = 8Ω
1
1+= IN +
= IN
SAFE USE:
8 A15i WIDE/FOCUS in vertical array or
3 A15i WIDE/FOCUS in horizontal array
A15i FOCUS
Weight: 33 kg / 73 lb
Read manual and safety
instructions before use
Made in France
European Community
1+ 1+11
FOR OTHER CONFIGURATIONS, CHECK MECHANICAL SAFETY WITH
SOUNDVISION SOFTWARE.
USE ONLY WITH L-ACOUSTICS AMPLIFIED CONTROLLERS.
SAFE USE:
8 A15i WIDE/FOCUS in vertical array or
3 A15i WIDE/FOCUS in horizontal array
Znom. = 8Ω
1
1+= IN +
= IN
A15i WIDE
Weight: 29 kg / 64 lb
Read manual and safety
instructions before use
Made in France
European Community
1+ 1+11
A15i Focus

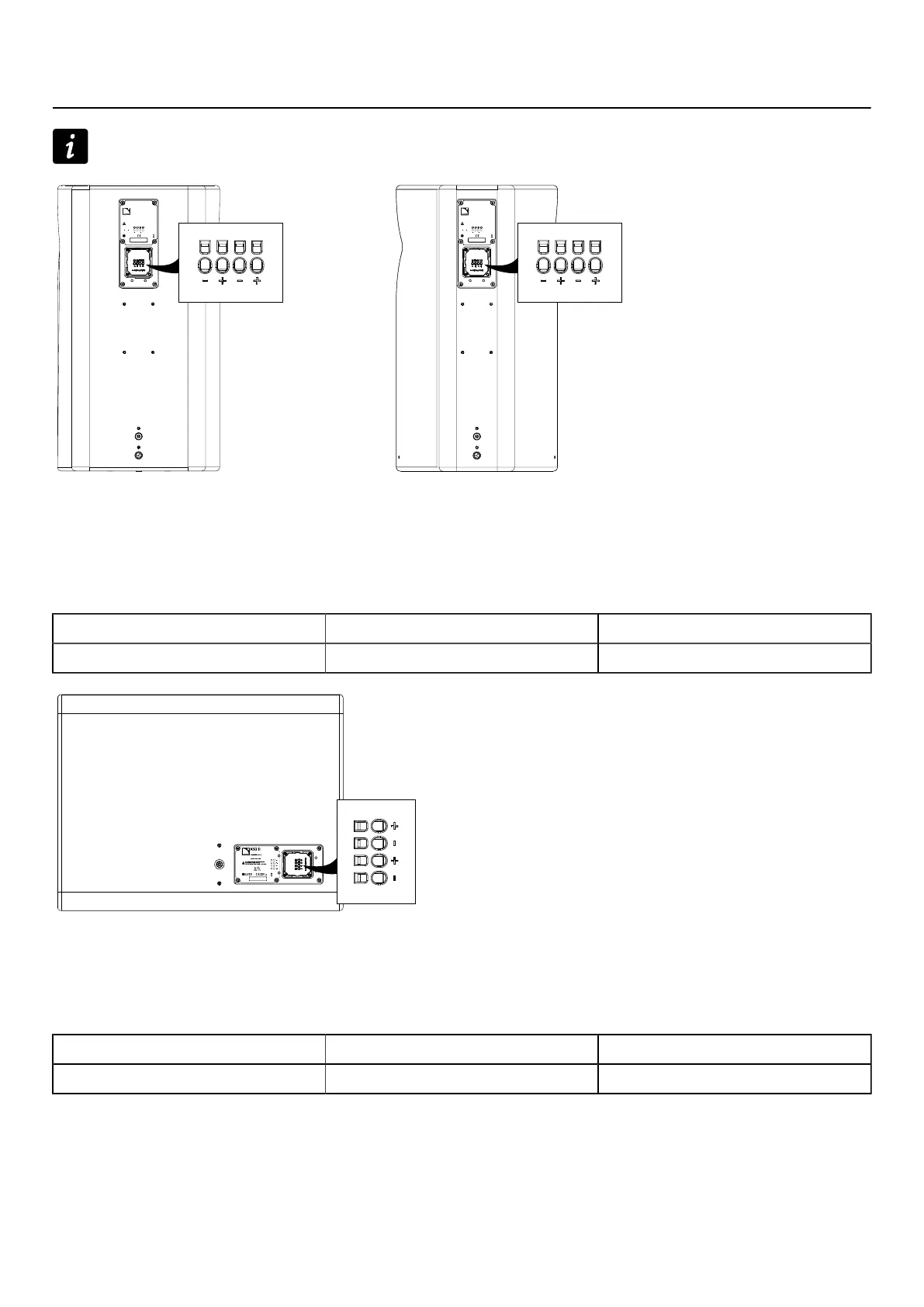

1 × 4-point terminal block with push-in
connection
A15i Wide
1 × 4-point terminal block with push-in
connection
Internal pinout for L-Acoustics 2-way passive enclosures
terminal block points IN + IN -
Transducer connectors + -
KS21i
1 × 4-point terminal block with push-in connection
Internal pinout for L-Acoustics subwoofers
terminal block points IN + IN -
Transducer connectors LF + LF -
A15i owner's manual (EN) version 1.0 21
