Connection to LA amplied controllers
Connection to LA amplied controllers
Enclosure drive capacity per amplied controller
Make sure the total number of connected enclosures does not exceed the maximum number of enclosures per controller
(refer to the footnotes).
LA2Xi LA4X LA8 LA12X
per output
*
/ total per output
*
/ total per output
*
/ total per output
*
/ total
A15i Wide/Focus 1 / 4 (SE), 1 / 2 (BTL) 1 / 4 2 / 8 3 / 12
KS21i 1 / 4 (SE), 1 / 2 (BTL) 1 / 4
2 / 6
**
2 / 8

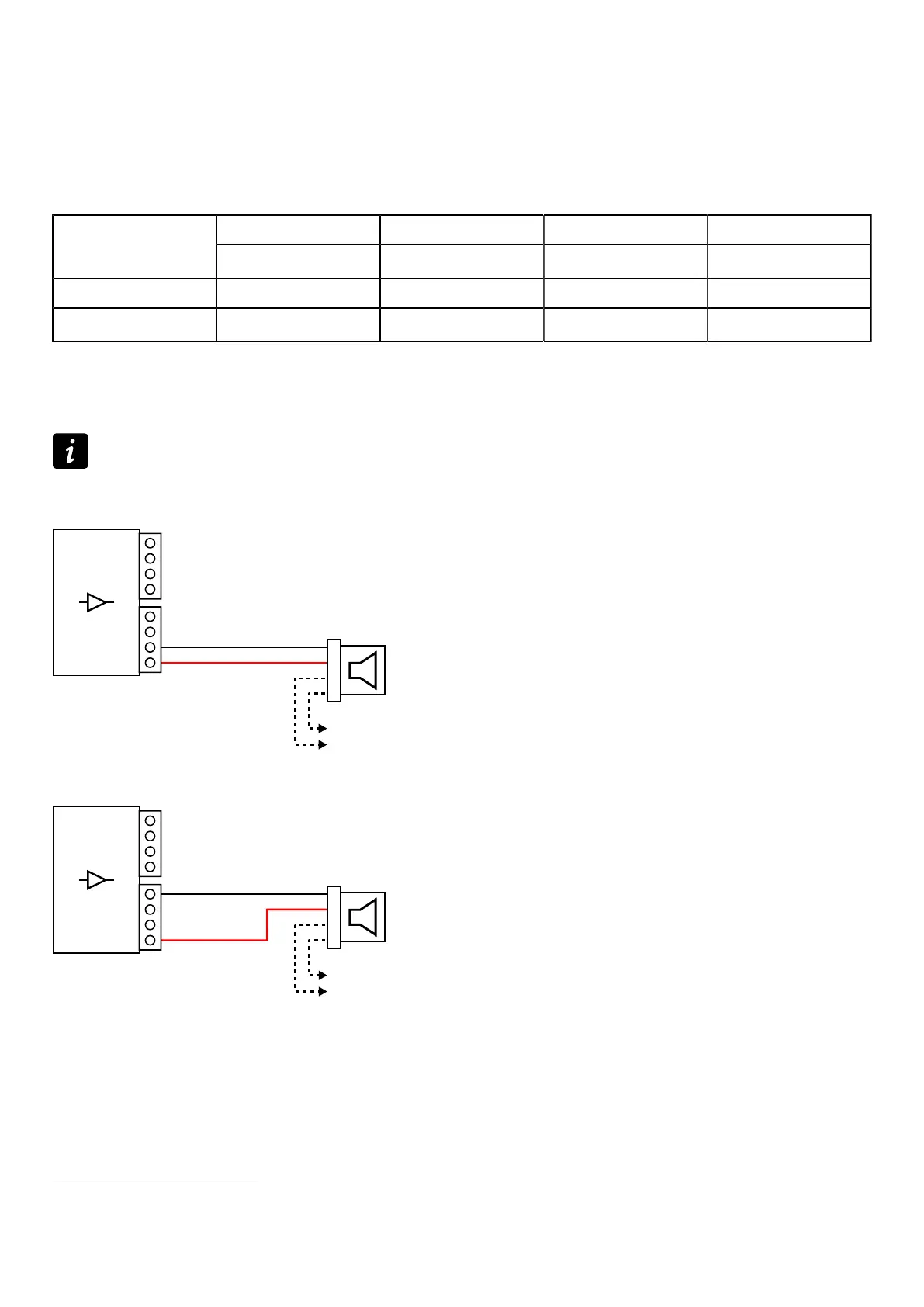

Cabling schemes for A15i Wide/Focus / KS21i (LA2Xi)
Refer to the cabling schemes to connect the enclosures to different types of output congurations.
Refer to the LA2Xi owner's manual for more information on output congurations.
Terminal block output (SE)
1+
1−
2+
2−
3+
3−
4+
4−
+
-
+
-
Terminal block output (BTL)
1+
1−
2+
2−
3+
3−
4+
4−
+
-
+
-
*
For passive loudspeakers, the value corresponds to the number of enclosures in parallel on the output. For active
loudspeakers, the value corresponds to the number of sections in parallel on the output.
**
LA8 can drive up to two KS21 or KS21i per output, but no more than six per controller at high level.
A15i owner's manual (EN) version 1.0 97
