Rigging procedures
Assembly
Procedure
Fasteners for wall-mounting or ceiling-mounting
Select screw length and anchors applicable to the wall or ceiling properties.

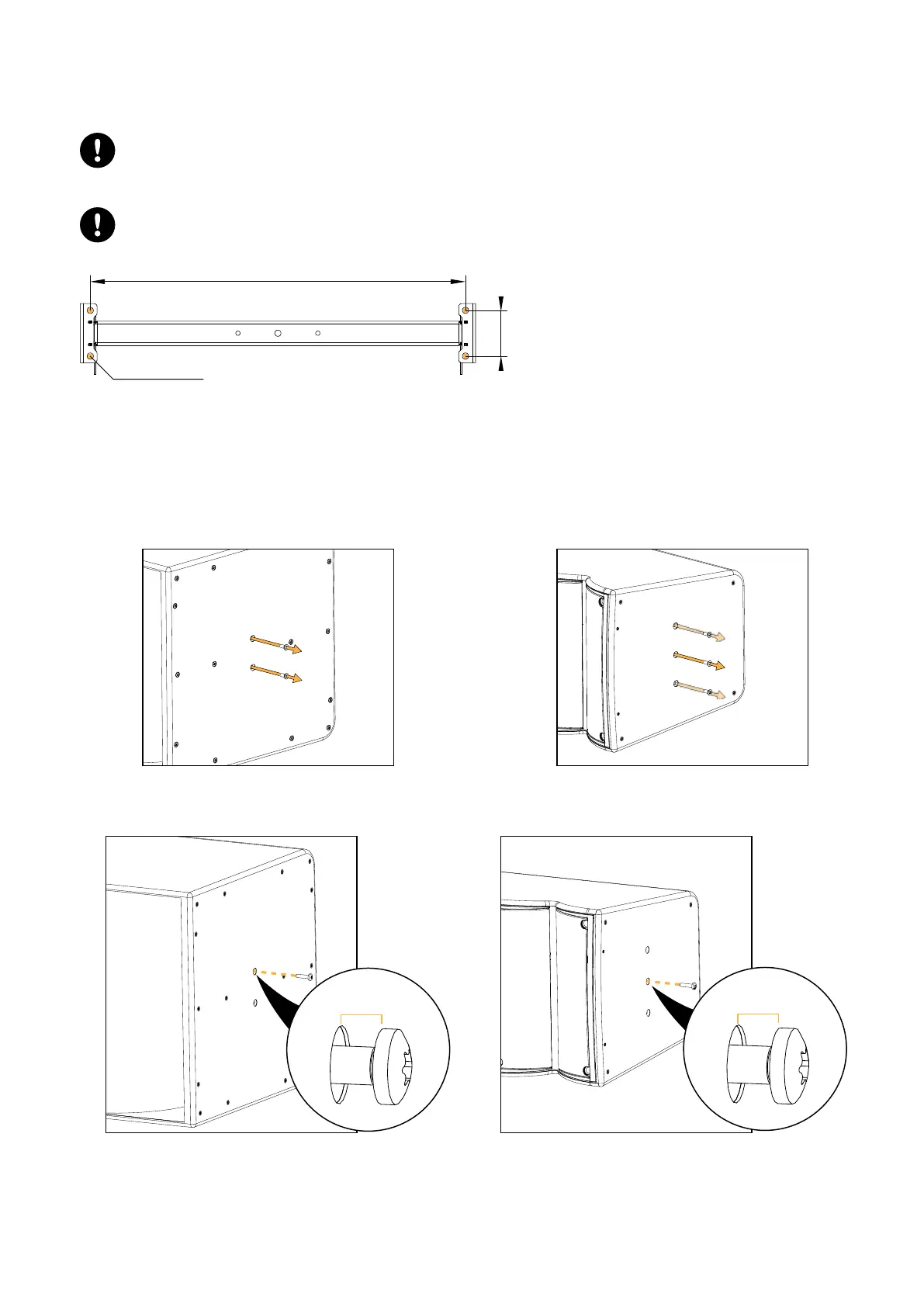

1. Mount A-U15i on the ceiling or on the wall using four M10 screws.
When using a U-bracket horizontally, make sure the hooks are oriented upwards.
781 mm / 30.7 in
120 mm / 4.7 in
Ø M10 (x4)
2. Remove the placeholder screws at the center of each side of the enclosure:
KS21i A15i Wide/Focus
Remove the two screws. Remove the central and top screws or the central
and bottom screws, depending on the desired
conguration (refer to APPENDIX B: Congurations
with A-U15i (p.113)).
3. Using the screws provided with A-U15i, drive a screw on both sides.
Approximately 10 mm (0.4 in) of the thread must be visible.
10 mm / 0.4 in
10 mm / 0.4 in
KS21i A15i Wide/Focus
Alternatively, drive the screw in the bottom insert for a conguration with the enclosure closer to the ceiling.
A15i owner's manual (EN) version 1.0 75
