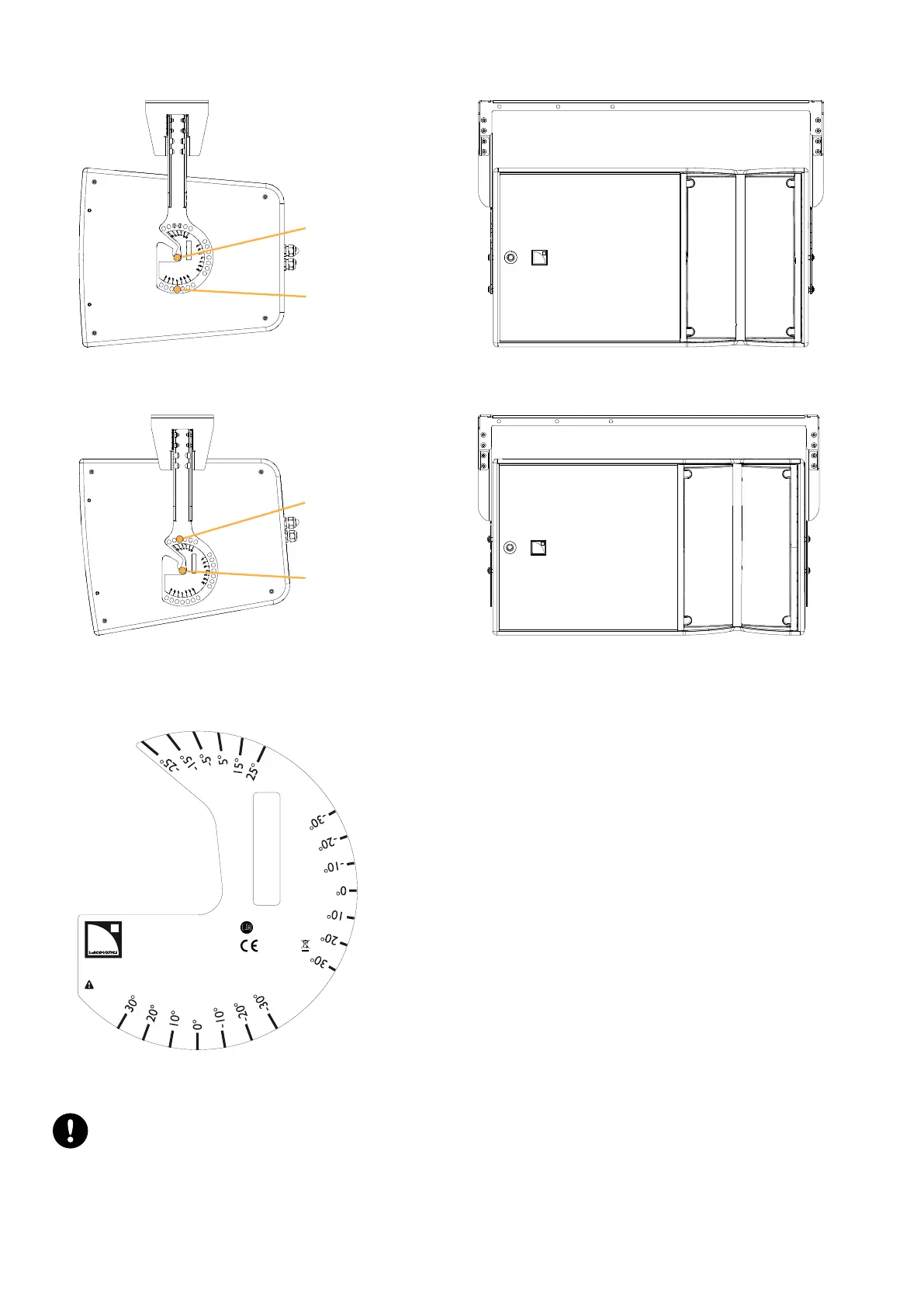

Rigging system description
A-U15i is secured to each side of the enclosure by two M8 screws: the central screw and the angulation screw.
central screw
angulation screw
Position the central screw in the bottom insert to reduce space between the enclosure and the ceiling.
central screw
angulation screw
The angle can be set between -30° and +30° in 5° or 10° steps. Refer to the label to position the angulation screw.
See APPENDIX B: Congurations with A-U15i (p.113) for a list of authorized congurations.
Read manual and safety
instructions before use
Made in France
European Community
A-U15i
Weight: 4.9 kg / 11 lb
WLL: 110 kg / 243 lb
SAFE USE: 2 enclosures in vertical deployment or
1 enclosure in horizontal deployment.
FOR OTHER CONFIGURATIONS, CHECK MECHANICAL SAFETY
WITH SOUNDVISION SOFTWARE.
A-U15i must be secured to the supporting xture with four M10 screws or a truss clamp.
Fasteners for wall-mounting or ceiling-mounting
Select screw length and anchors applicable to the wall or ceiling properties.
A15i owner's manual (EN) version 1.0 35
