Rigging procedures

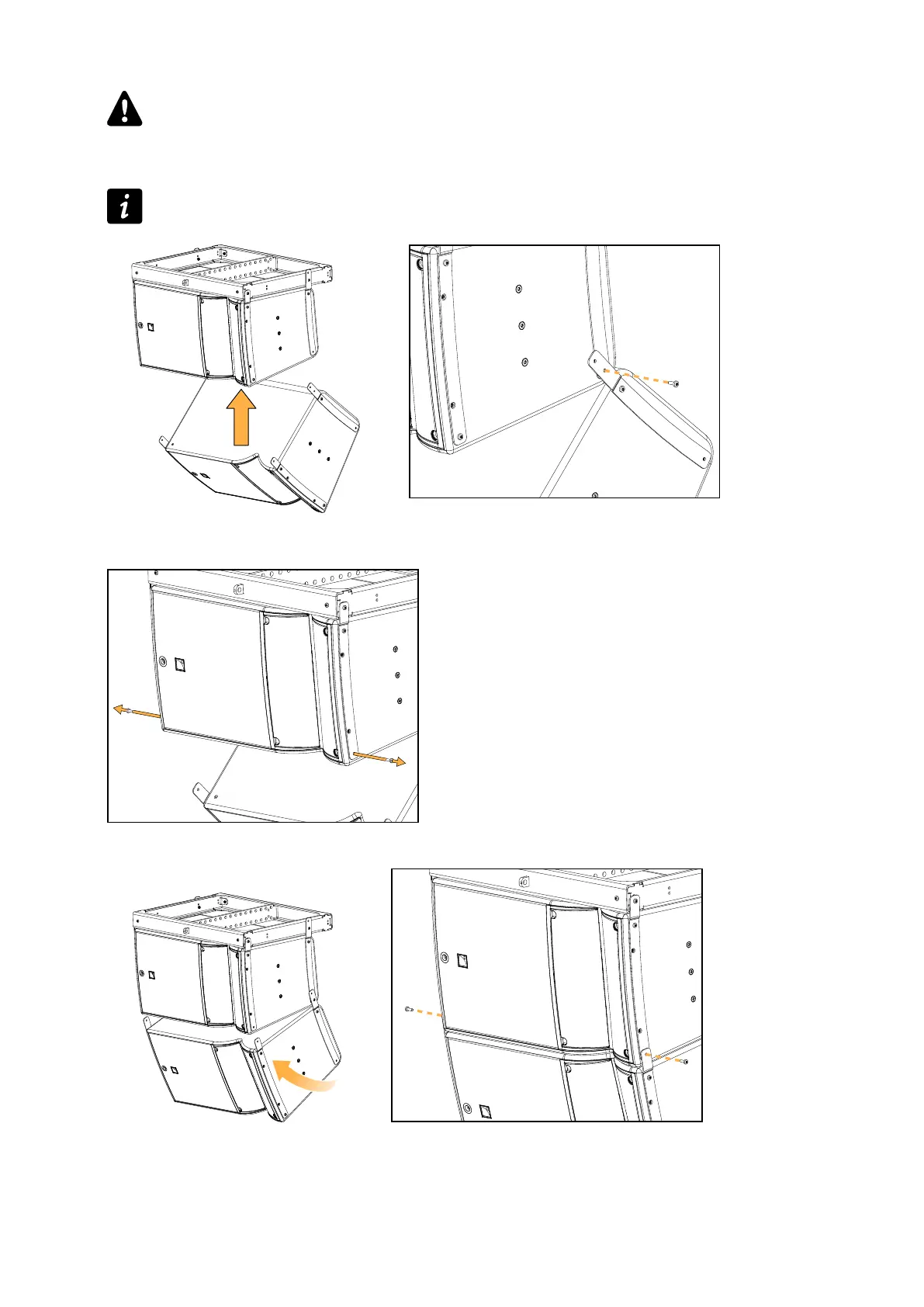

4. Secure the additional A15i Wide/Focus under the array:
a) This step requires three operators.
Hold the enclosure at the bottom until the rigging plates are secured.
Lift the rear of the new A15i Wide/Focus and secure it to the array by pre-tightening a rigging screw on both
sides.
A15i Focus site angle adjustment
A15iFOCUS-LINK can be used to add an inter-element angle of 5° between two A15i Focus.
b) Remove the rigging screws at the bottom front on both sides of the supporting enclosure.
c) Link the enclosures at the front with rigging screws.
d) Tighten all the screws on the supporting enclosure.
Apply a torque of 5 N.m.
A15i owner's manual (EN) version 1.0 55
