Rigging procedures
b) This step requires three operators.
Hold the enclosure at the bottom until the rigging plates are secured.

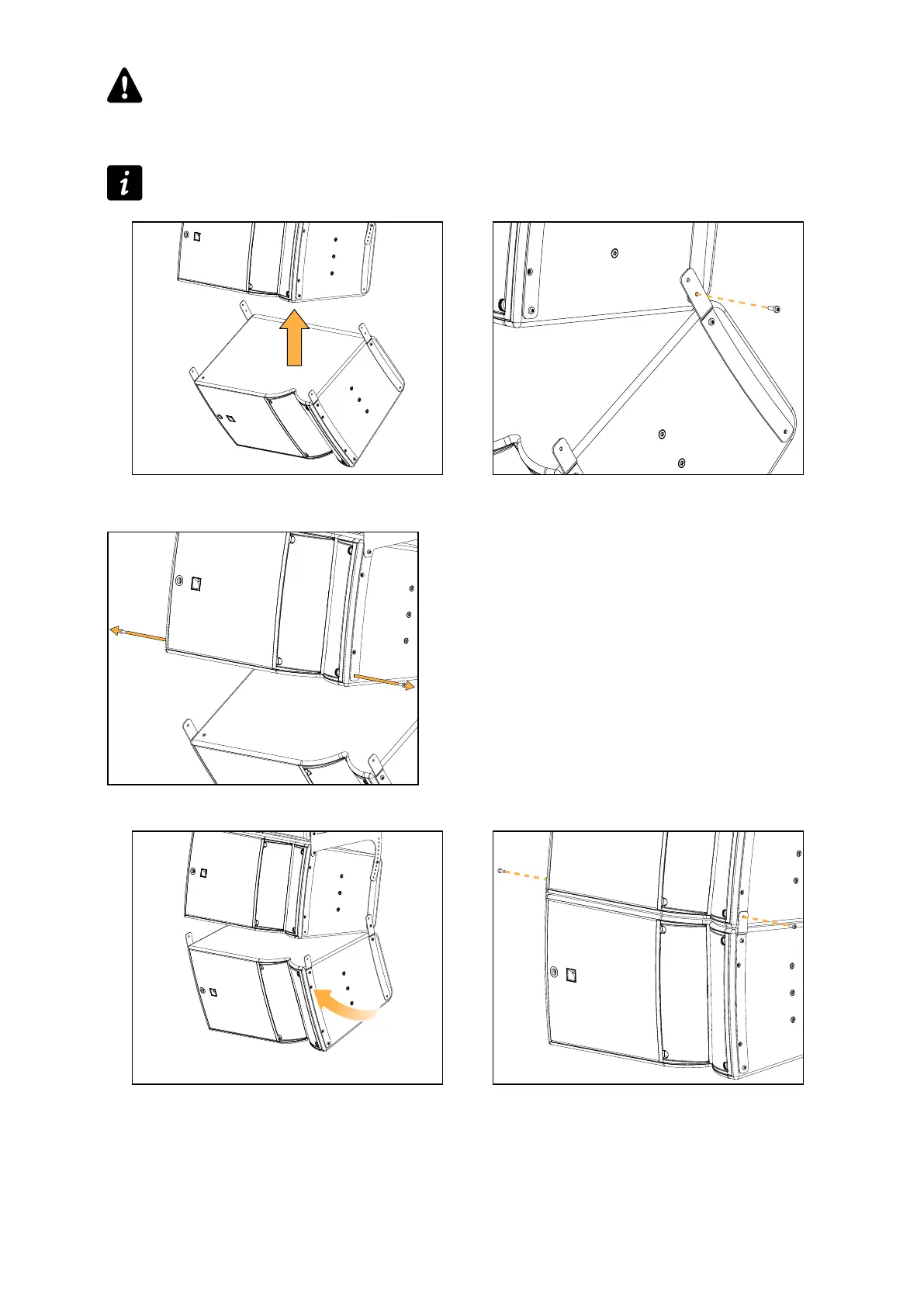

Lift the rear of the new A15i Wide/Focus and secure it to the array by pre-tightening a rigging screw on both
sides.
A15i Focus site angle adjustment
A15iFOCUS-LINK can be used to add an inter-element angle of 5° between two A15i Focus.
c) Remove the rigging screws at the bottom front on both sides of the top A15i Wide/Focus.
d) Link the A15i Wide/Focus enclosures at the front with rigging screws.
e) Tighten all the screws on the supporting A15i Wide/Focus.
Apply a torque of 5 N.m.
