Rigging procedures
Assembly
Procedure

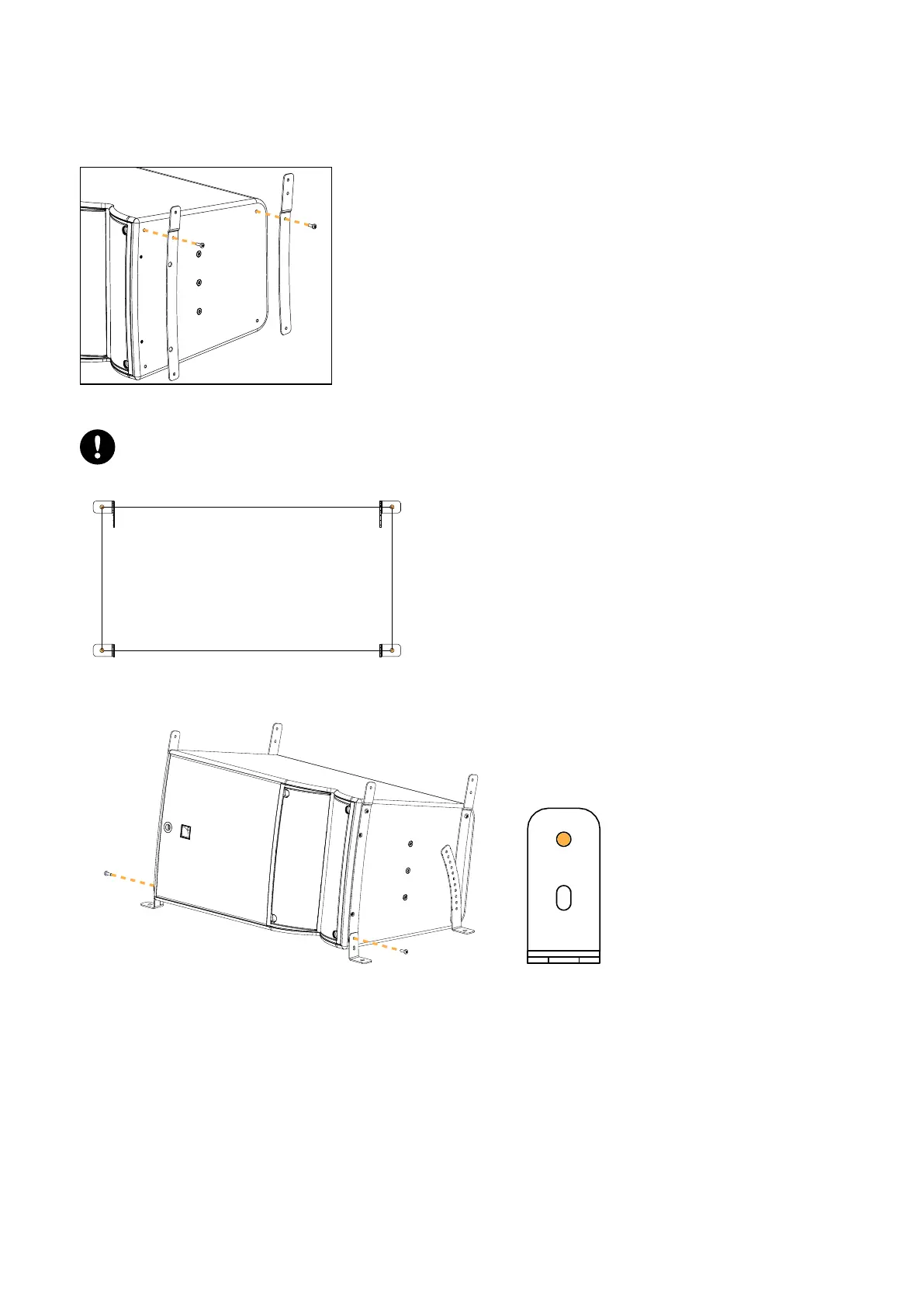

1. Prepare a A15i Wide/Focus by removing the placeholder screws and securing rigging plates on both sides.
2. Secure A15i-TILTBRACKET to the ground using M10 screws.
Fasteners for wall-mounting or ceiling-mounting
Select screw length and anchors applicable to the wall or ceiling properties.
829 mm / 32.6 in
409 mm / 16 in
3. Secure the front of A15i Wide/Focus to the front brackets by pre-tightening a screw in the top hole of the front
brackets.
92 A15i owner's manual (EN) version 1.0
To Next Page
