L-Acoustics A15i Series User Manual

Rigging procedures
Procedure

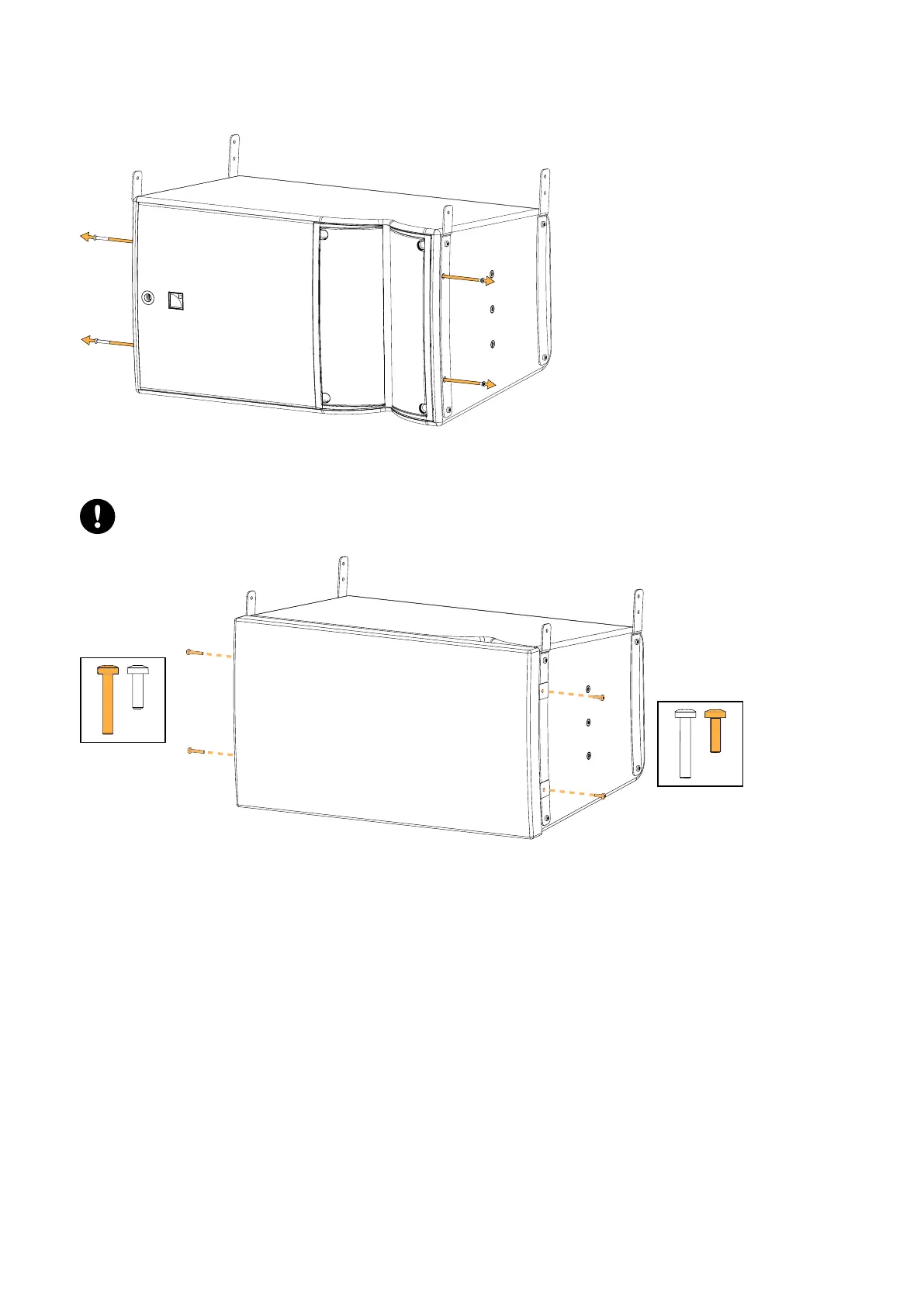

1. Remove the placeholder screws on the ns side and the grill screws from the inserts.
2. Secure the screen using the provided rigging screws.
Apply a torque of 5 N.m.
Risk of damaging the ns
When securing a screen to A15i Wide/Focus, make sure to use M6x20 screws on the ns side.
A15i owner's manual (EN) version 1.0 95

L-Acoustics A15i Series Specifications

General

Brand	L-Acoustics
Model	A15i Series
Category	Speakers
Language	English
