Rigging procedures

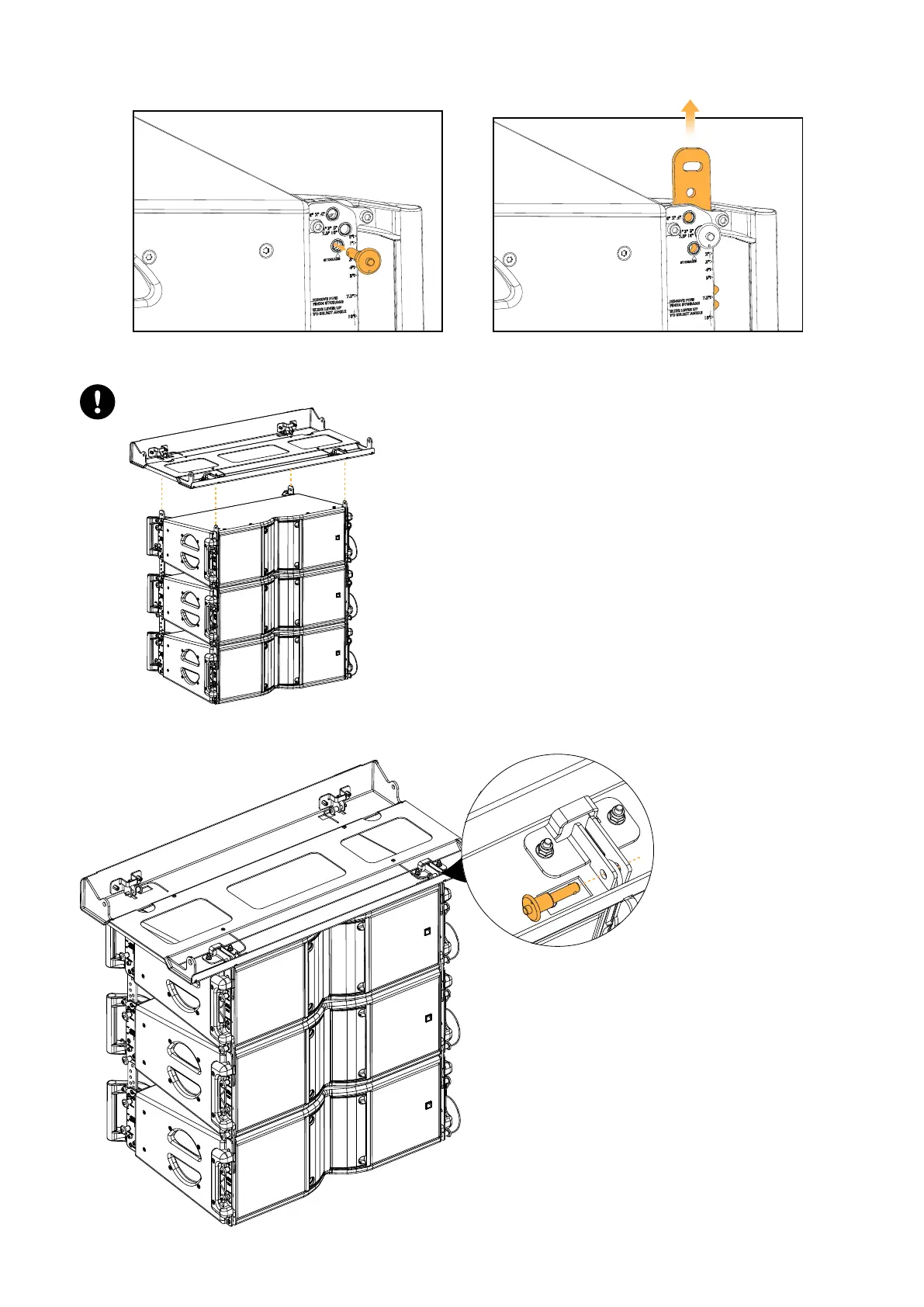

b) Slide up the rear rigging arms and select the same inter-element angle, from 0° to 10°.
2. Secure a KARADOWNK3 on top of the Kara II array.
Position the higher ledge at the rear.
Secure the Kara II rigging arms inside the slits with the ball-locking pins.
x4
K3 owner's manual (EN) version 1.0 77
