Rigging procedures

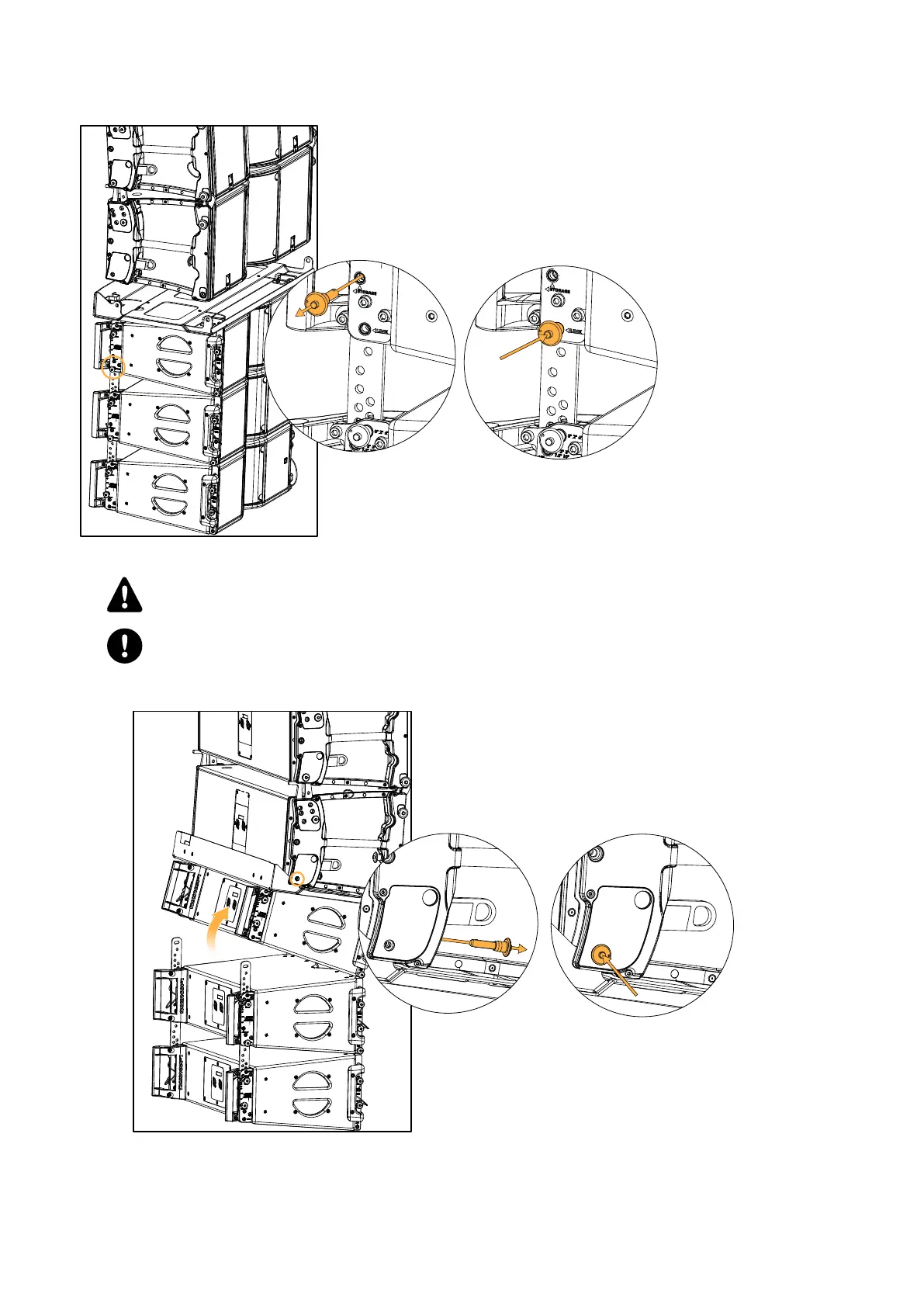

3. Lower the K3 array as close as possible to the assembly without resting on it.
4. Disconnect the rear rigging between the two top Kara II enclosures.
5. Connect KARADOWNK3 to the bottom of the K3 array.
a)
Risk of crushing injury.
Keep ngers away from the contact area between the ledge and the cabinet.
Risk of cable damage.
Disconnect any cable from the K3 bottom connector.
Rotate the top Kara II upwards and secure the rear KARADOWNK3 tabs to the K3 rigging.
78 K3 owner's manual (EN) version 1.0
