L-Acoustics K3 - Page 81

Rigging procedures

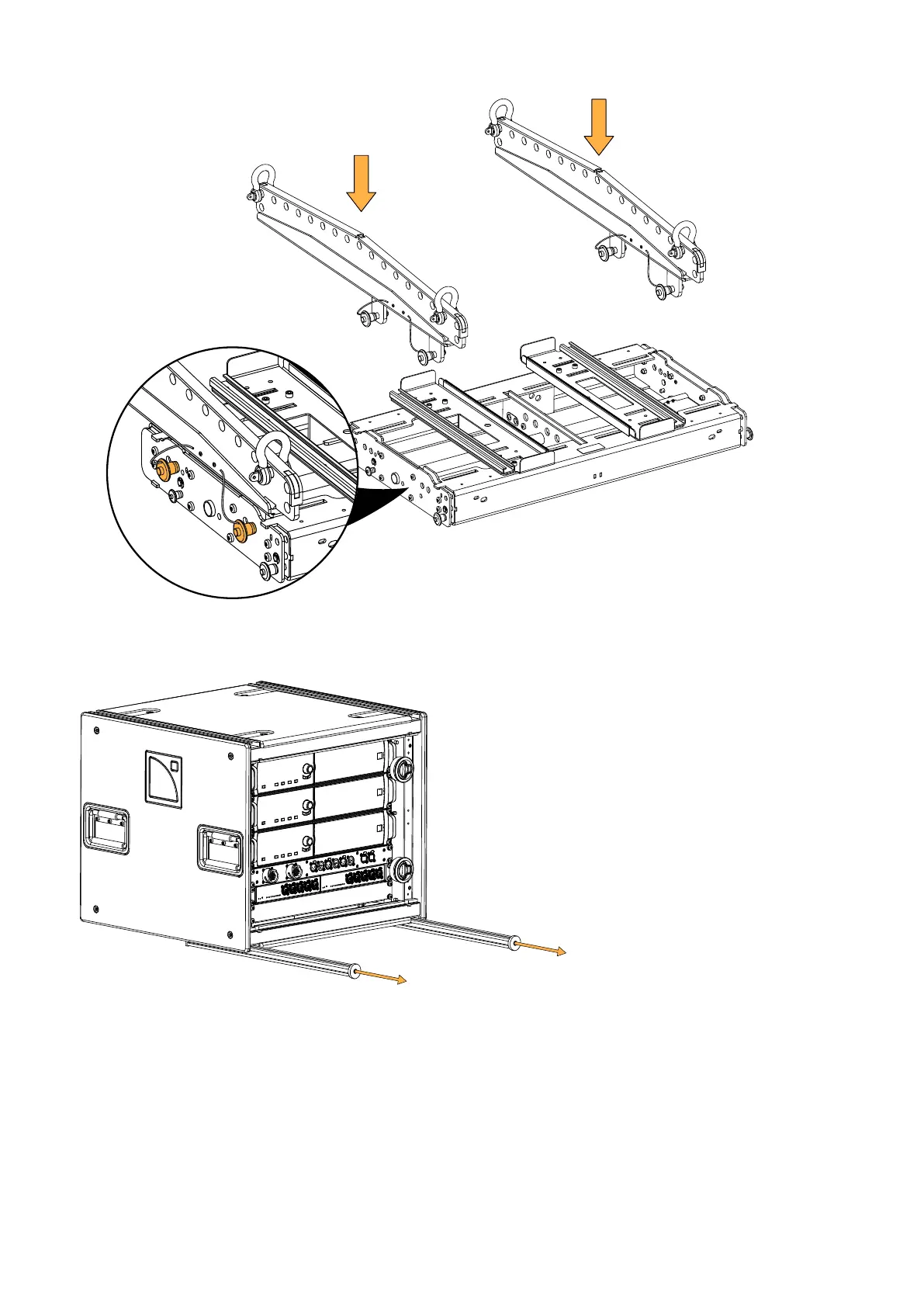

2. Install two K3-BAR on both sides of the K3-BUMP.
3. Remove the LA-RAK II AVB coupling bars.
Turn the bars to release the spring-loaded safety and slide them out.
K3 owner's manual (EN) version 1.0 81
