Rigging procedures

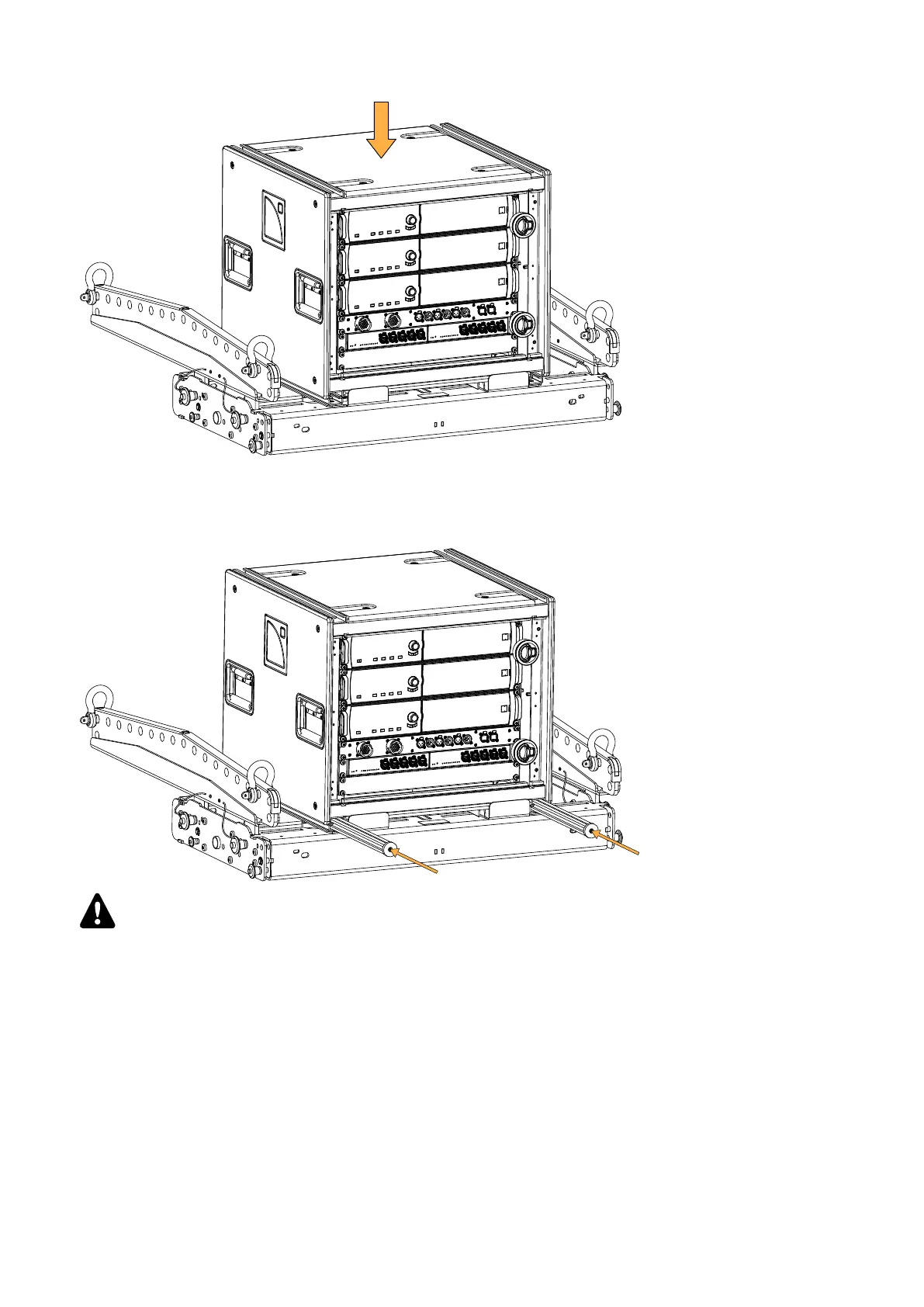

4. Position the LA-RAK II AVB on the rails.
5. Secure the LA-RAK II AVB with the coupling bars.
Insert the spring-loaded safety in the LA-RAK II AVB rails, give a quarter turn and slide the bar until the safety locks
into place.
Coupling bars
Always insert the coupling bars so that the round metallic safety is pointed upward (depending on the tilt
angle):
from the back for a negative angle (rear extension)
from the front for a positive angle (front extension)
