Rigging procedures

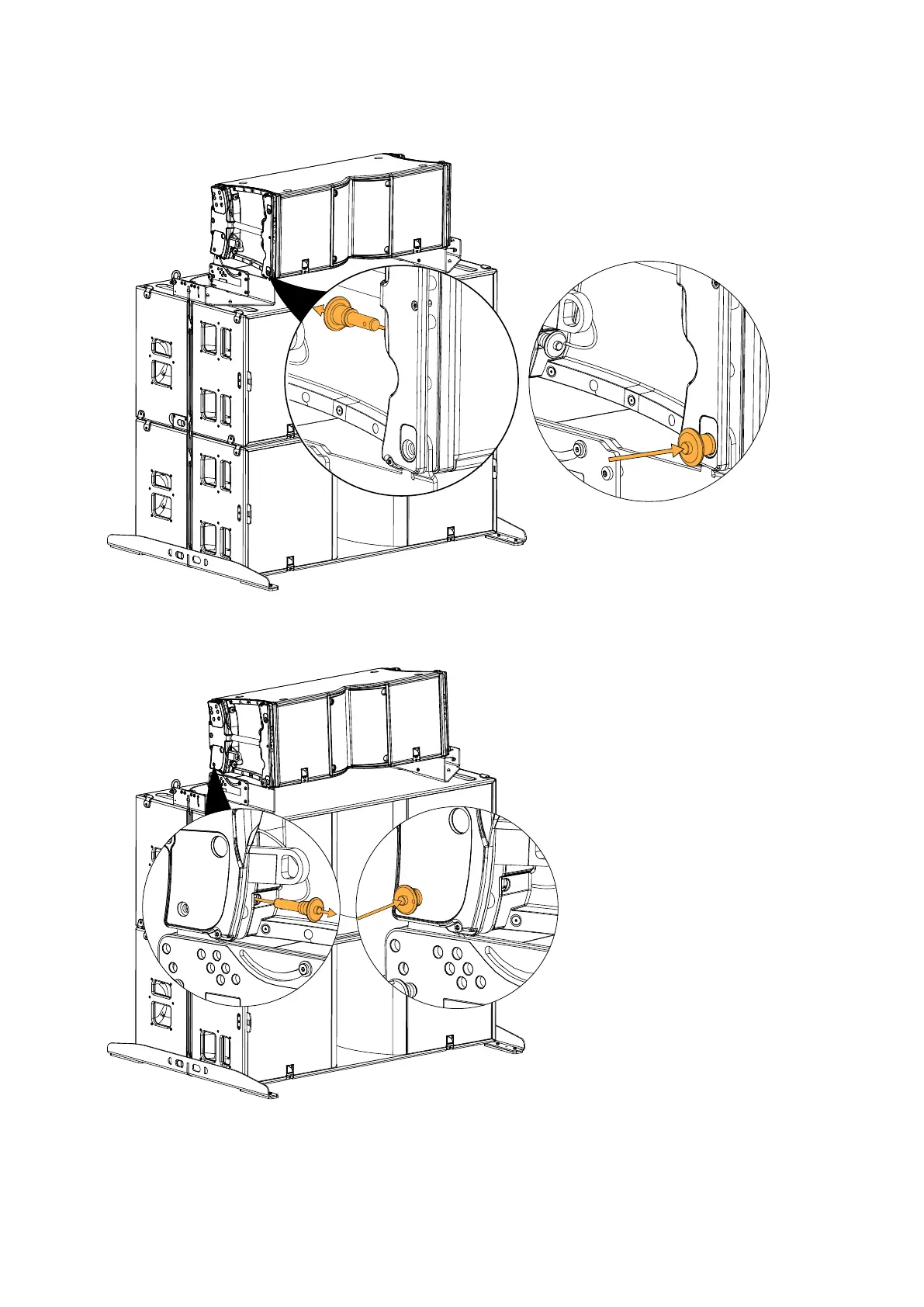

6. Secure K3 to the K3-TILT.
a) Secure the front arms of K3-TILT to the bottom front of the enclosure.
Connect the K3 ball-locking pin to the front arms of K3-TILT.
b) Secure the rear arms of K3-TILT to the bottom rear of the enclosure.
Connect the K3 ball-locking pin to the rear sliding arms of K3-TILT.
c) Set the site angle with the rear arms of K3-TILT.
