L-Acoustics K3 - Page 98

Rigging procedures

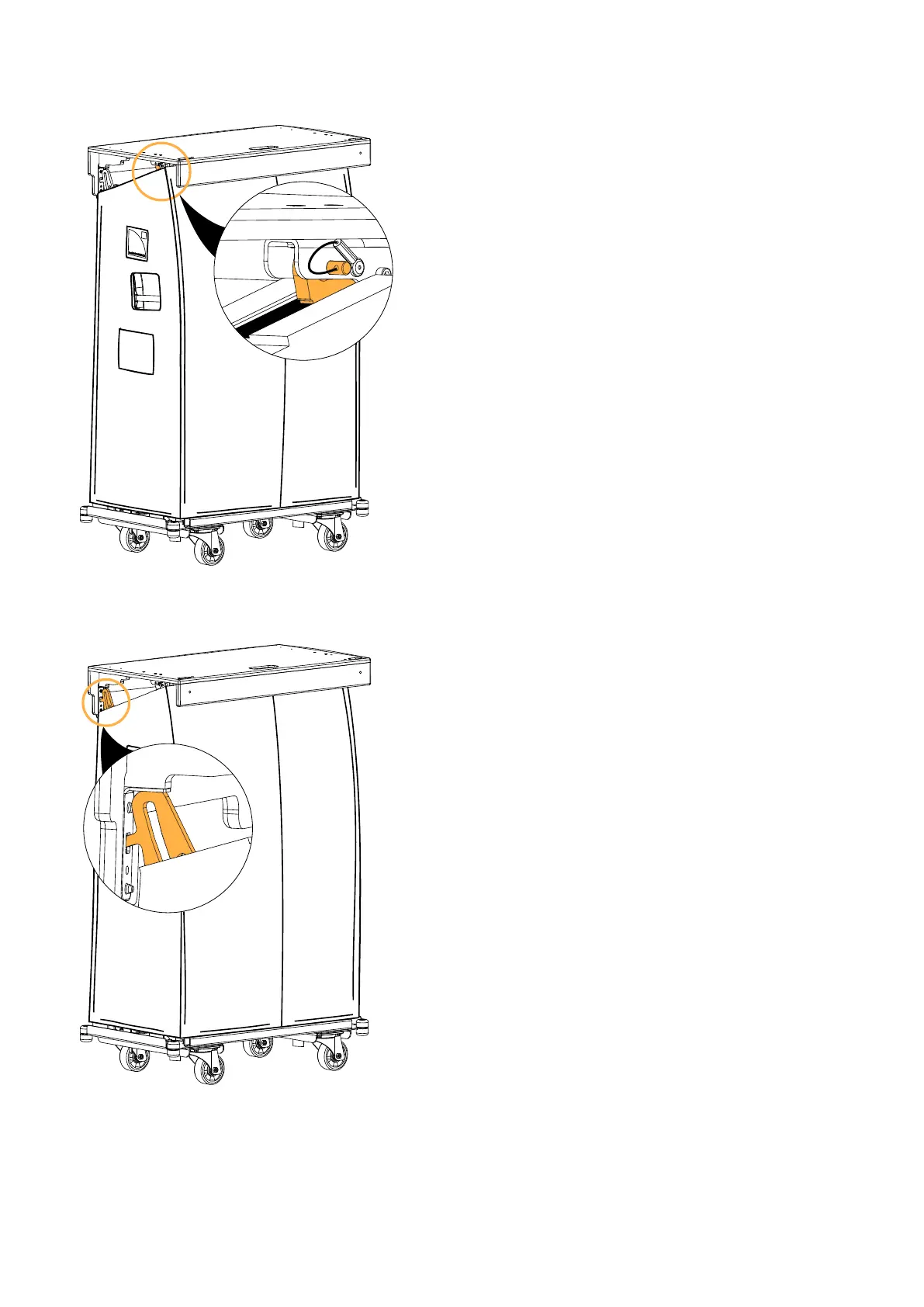

4. Connect the front rigging arms of K3
Secure the ball-locking pin to the front rigging arm.
5. Position the back of K3-CHARIOTLID on the rear rigging arms.
The rear rigging arm must be in the notch of K3-CHARIOTLID.
98 K3 owner's manual (EN) version 1.0
