Positioning the Breeze Pro Sensor
For Accurate Measurements
Included Mounting Accessories
BASICS
• Ensure the sensor is mounted level with the Solar Panel facing
directly to the south. This will help optimize battery life and transmit
correct wind direction readings.
• Ideally, the Breeze Pro Sensor should be mounted on the tallest
object in your area. Avoid positioning the sensor in line or below
eaves, rooflines, trees, or other objects that may obstruct wind
readings.
• Make sure all screws on the Mounting Bracket, Winds Cups,
Wind Vane, and Battery Compartment are securely fastened.
• The sensor should be mounted with the Wind Cups on top.

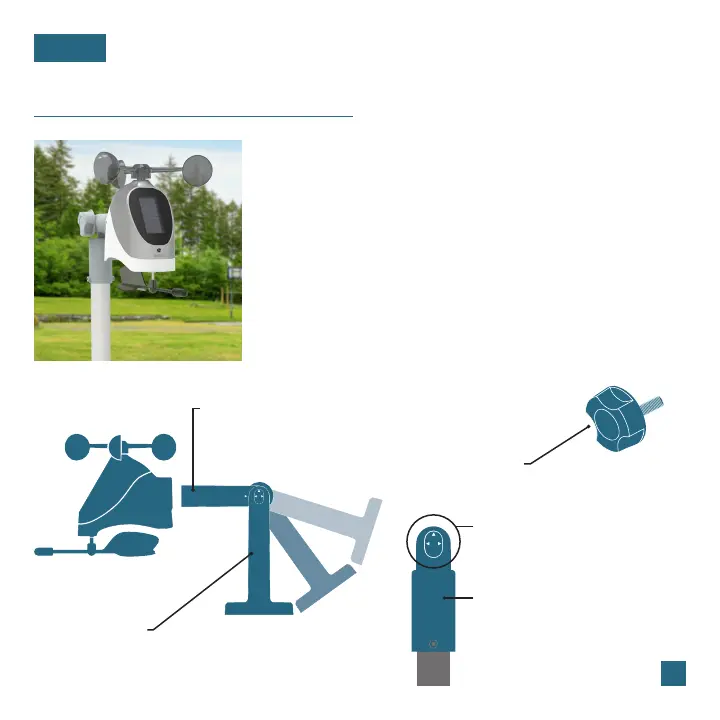

Mast
The horizontal conduit where the sensor
attaches. This piece will connect to either
the Adjustable Base or Pole Adapter.
Adjustable Base
The main bracket used for mounting onto flat surfaces or with
added U-bolts (not included). The grooves and Hand Screw allow
the bracket to secure to angled surfaces while still ensuring the
Mast and sensor are level.
Hand Screw
Used to lock down and secure the Mast
to the Adjustable Base or Pole Adapter.
Alignment Arrows
Provide exact 90 or 180 degree
angles when aligned with the arrow
on the Mast.
Pole Adapter
Used in place of the Adjustable Base
for mounting on top of cylindrical
conduits.
1-Inch Maximum Pole Diameter
