La Marzocco LEVA X - Installation of the Pressure Reducer

EN
18
WATER CHECK POINT:
FLOW RATE ≥ 150 l/h
2 BAR < PRESSURE ≤ 4 BAR
WATER CHECK POINT:
FLOW RATE < 150 l/h
PRESSURE < 2 BAR
WATER CHECK POINT:
FLOW RATE < 150 l/h
PRESSURE > 4 BAR
ROTARY PUMP
PRESSURE REDUCER
PRESSURE ≤ 4 BAR
WATER CHECK POINT:
FLOW RATE ≥ 150 l/h
PRESSURE > 4 BAR
PRESSURE REDUCER
PRESSURE ≤ 4 BAR
WATER TREATMENT
RECOMMENDED VALUES
www.lamarzocco.com/water_calculator
ROTARY PUMP
TEE FITTINGS
POWER SUPPLY
CORD
WASTE/DRAIN
MAIN SWITCH
AND ELECTRICAL SUPPLY CONNECTION
COFFEE
BOILER
STEAM
BOILER
BRAIDED HOSE
MAIN WATER
SUPPLY VALVE
WATER TREATMENT
RECOMMENDED VALUES
www.lamarzocco.com/water_calculator
TEE FITTINGS
POWER SUPPLY
CORD
WASTE/DRAIN
MAIN SWITCH
AND ELECTRICAL SUPPLY CONNECTION
COFFEE
BOILER
STEAM
BOILER
BRAIDED HOSE
MAIN WATER
SUPPLY VALVE
WATER TREATMENT
RECOMMENDED VALUES
www.lamarzocco.com/water_calculator
TEE FITTINGS
POWER SUPPLY
CORD
WASTE/DRAIN
MAIN SWITCH
AND ELECTRICAL SUPPLY CONNECTION
COFFEE
BOILER
STEAM
BOILER
BRAIDED HOSE
MAIN WATER
SUPPLY VALVE
WATER TREATMENT
RECOMMENDED VALUES
www.lamarzocco.com/water_calculator
TEE FITTINGS
POWER SUPPLY
CORD
WASTE/DRAIN
MAIN SWITCH
AND ELECTRICAL SUPPLY CONNECTION
COFFEE
BOILER
STEAM
BOILER
BRAIDED HOSE
MAIN WATER
SUPPLY VALVE

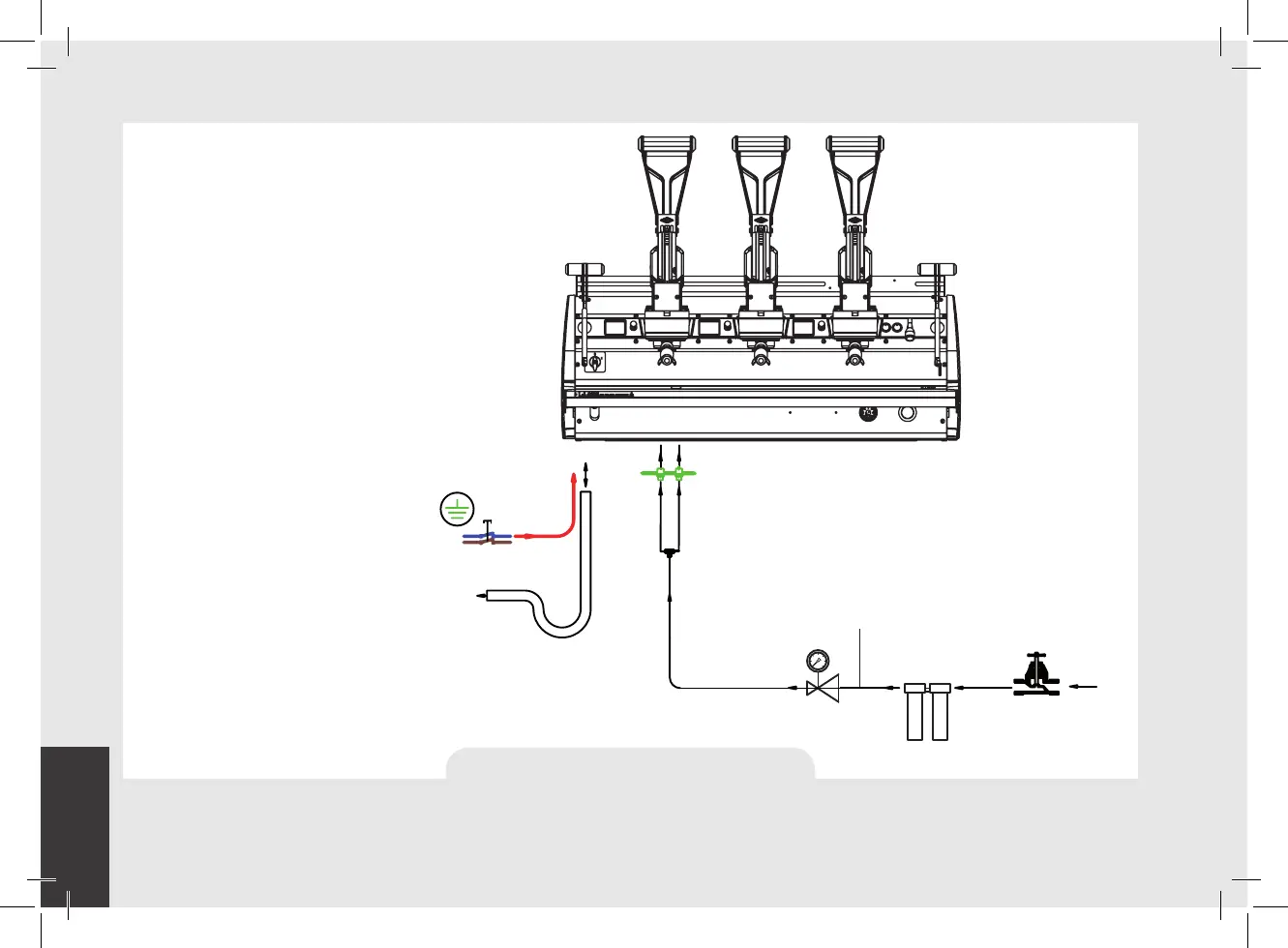

Fig. 6 - Installation guide - type 3
Pressure higher than 4 bar
Flow rate higher than 150 l/h
Installation of the pressure reducer
immediately downstream of the
water treatment system.
