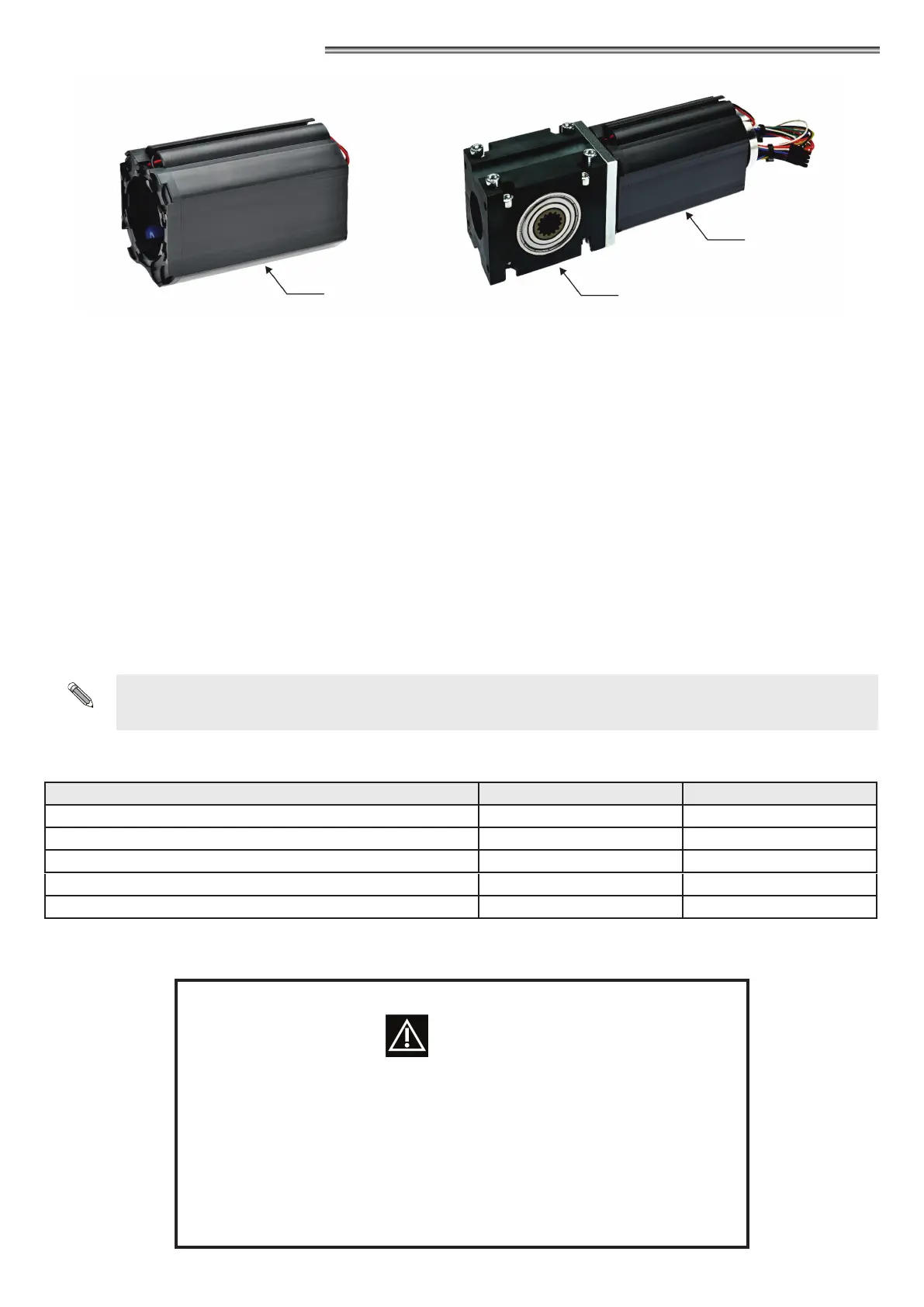

12) BATTERY PACK NEXT-BAT120S
BATTERY GEARMOTOR
BATTERY
Battery supplied assembled in the plastic casing located around the motor body for the best use of the inner spaces of the automation.
Plug-in connection to connect the battery to the control unit of NEXT 120S.
The battery charging and monitoring circuit is incorporated in the electronic control unit of NEXT 120S.
Battery life approx. 1 hour in continuous operation and 3 hours in standby.
Connect the battery to the connector J3 of the control unit NEXT‑L120S.
To enable battery operation, set the F07 function to ON
or S04 = ON from the initial setup.
The battery charger integrated in the control unit automatically checks the battery charge level and displays a
green and a red LED (see table "LED SIGNALLING")
Operation
The battery activates in case of mains power failure, allowing the automation NEXT 120S to keep operating.
Battery life depends on several factors, such as the number of operations carried out, the weight of the leaves, the external devices
connected, etc.
The charged battery can supply energy for approximately 1 hour, with continuous door opening/closing cycles.
IMPORTANT!
BATTERY TYPE: NiMH, 19.2V - 600mAh
LED SIGNALLING
SIGNALLED EVENTS GREEN LED DL6 RED LED DL5
BATTERY DISCONNECTED ON ON
BATTERY CHARGING BLINKING OFF
BATTERY CHARGED WITH MAINS VOLTAGE ON OFF
BATTERY LOW OFF BLINKING
BATTERY CHARGED WITHOUT MAINS VOLTAGE OFF ON
WARNING!
•
Periodically check battery eciency
•
To allow recharging, the batteries must always be connected to the electronic control
unit
•
The equipment must be disconnected from the mains when removing the batteries
•
In case of replacement, always use genuine batteries
•
Replacement must be performed by qualied personnel
•
Remove batteries from the equipment before its disposal
•
Batteries contain polluting substances; therefore they must be disposed of in
accordance with the provisions of local regulations
