25) PRIVACY FUNCTION
Privacy function is used in those environments where you need to close the door from inside, as for example in toilettes, private rooms
or meeting rooms.
In case of power failure the maglock is deactivated and the door can be open manually. For this reason we strongly recommend the
use of the operator NEXT 120SB (with emergency battery).
In order to avoid any contact between the door and the user, the following accessories are required and have to be connected to our
NEXT 120S drive unit:
A n. 1 Touchless Sensor for door opening from outside
B n. 1 Touchless Sensor for locking the door from inside
C n. 1 Maglock
D n. 2 Tra󰀩c lights (red/green). These will show the door status (free or busy) inside or outside. Please connect the tra󰀩c lights in parallel.
It is possible to choose between two di󰀨erent tra󰀩c lights: "item T-LED" or item "V00175".
E n. 1 UR2 Relay Module to control the tra󰀩c lights
F n. 1 N.C. emergency push button to release the maglock from inside
G n. 1 ON/OFF Key selector to release the maglock from outside in case of emergency

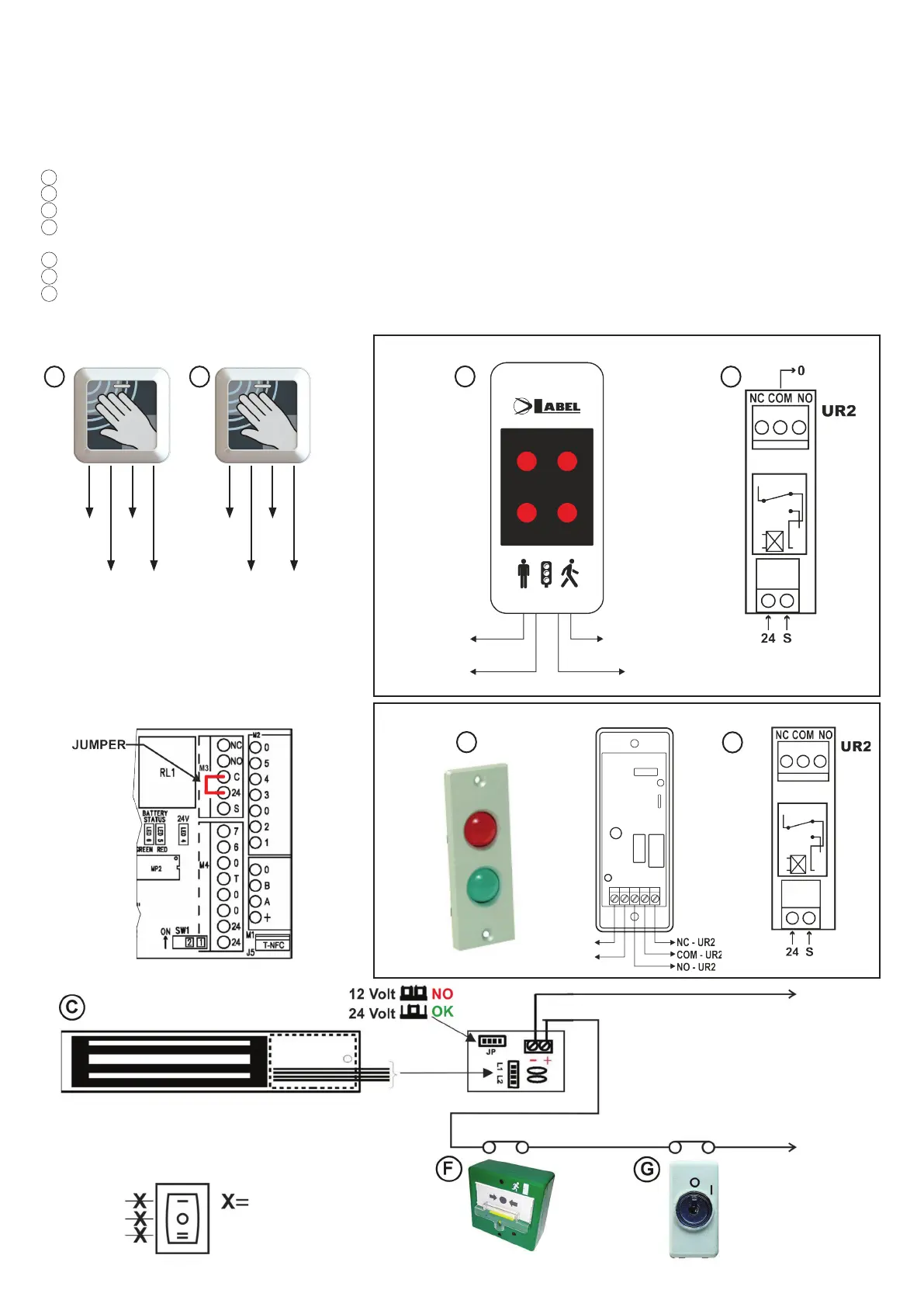

25.1) ELECTRICAL CONNECTIONS
24
0
1
RAD.
EX
0
COMMON
24
0
2
RAD.
IN
0
COMMON
AUX1
COMMON
AUX2
Disconnect the manual
selector from terminal
AUX1 (5), COMMON (0),
AUX2 (4).
Jumper terminals C-24 of the NEXT 120S control
unit to supply 24V.
A B
TRAFFIC LIGHT "T-LED"
TRAFFIC LIGHT V00175
D
E
D
E
CONTROL UNIT NEXT 120S
(NEXT 120S)
(NEXT 120S)
Jumpers (JP) to select power
supply (please set 24 volt)
BLACK
WHITE
NC-UR2 (GREEN LED)
BLUE
NOT USED (BLUE LED)
BROWN
NO-UR2 (RED LED)
(NEXT 120S) 24
(NEXT 120S) 0
NC NEXT 120S
(NEXT 120S)
0 NEXT 120S
(NEXT 120S) 24
