FIXING PLATE
PLASTIC PLATE
MANUAL PROGRAM SELECTOR
CLOSING SPRING
SWITCHING POWER SUPPLY NEXT-PW75
LOGIC BOARD NEXT-L120S
GEARMOTOR WITH ENCODER
BATTERY NEXT-BAT120S

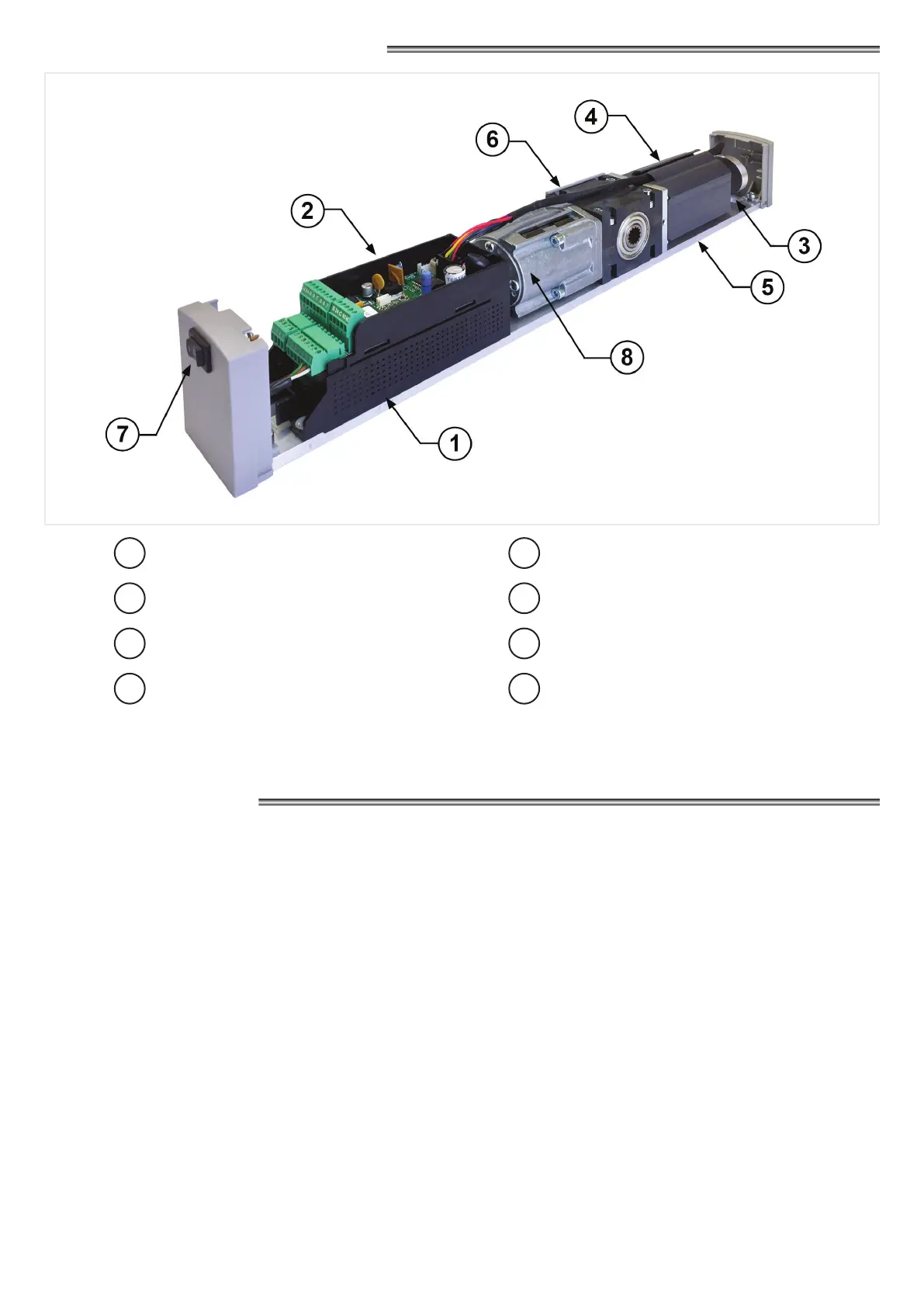

3) NEXT 120S AUTOMATION COMPONENTS
4) PRELIMINARY CHECKS
Before installing the automation, verify the following requirements:
• The support structure of the automation should be rm, with no signicant deformation.
• The structure of the leaf must be rigid and strong.
• The leaf hinges must be adequate and in good condition.
• The length and weight of the leaf must be within the operating limits of the automation.
• The movement of the leaf must be smooth and free of friction throughout the run.
• The door requires mechanical stops, consisting of a mechanical stop in open position and a nal stop in closed position.
The mechanical opening stop is not supplied with the automation.
To Next Page
