RADIO RECEIVER AND MEDIA
PLAYER
In the design variant the vehicle
is equipped with the radio receiver
and the media player. Figure 41a
demonstrates the external appear-
ance, and the additional information
about the radio receiver and the
media player is represented in
Appendix 4.
1 – Touchscreen display.
2 – Microphone.
3 – Memory card slot SD.
4 – MUTE – off sound button.
5 – Volume adjustment knob with
on/off button.
6 – MODE – select mode button.
Where to connect the
USB-drive
Multi-Media System (MMS) has
an option to connect the USB-drive
of 1 to 64 GB to play back audio,
video and images.
Plug 1 (Fig. 41c) for connecting
USB-drive is located in the upper left
corner of the side glove box.
61

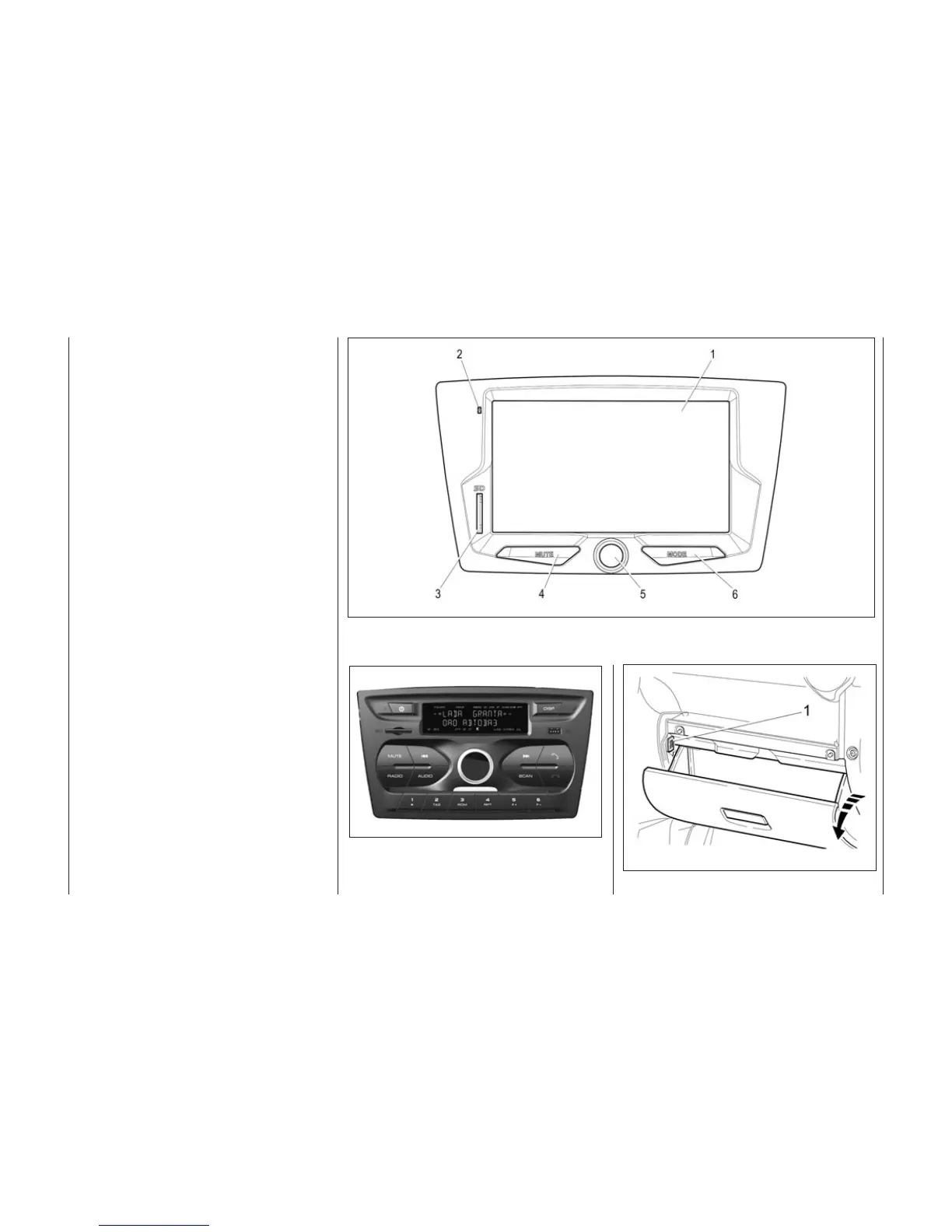

Fig. 41a. Radio receiver and media player
Fig. 41b. Radio receiver front
panel appearance and form
(in the design version)
Fig. 41c. USB connector location
