FUSE PLUG REPLACEMENT
When replacing the fuse plugs,
use only new fuses the types of
which are recommended for your
vehicle, and only of those manufac-
turers who own the conclusion of
JSC «AVTOVAZ» and bear the mark-
ing in accordance with Table 4-7.
ATTENTION!
Use of fuses that differ in
amperage rating from those rec-
ommended in Table 4 is not
allowed. This can lead to a failure
of the vehicle's electrical equip-
ment or fire hazard.

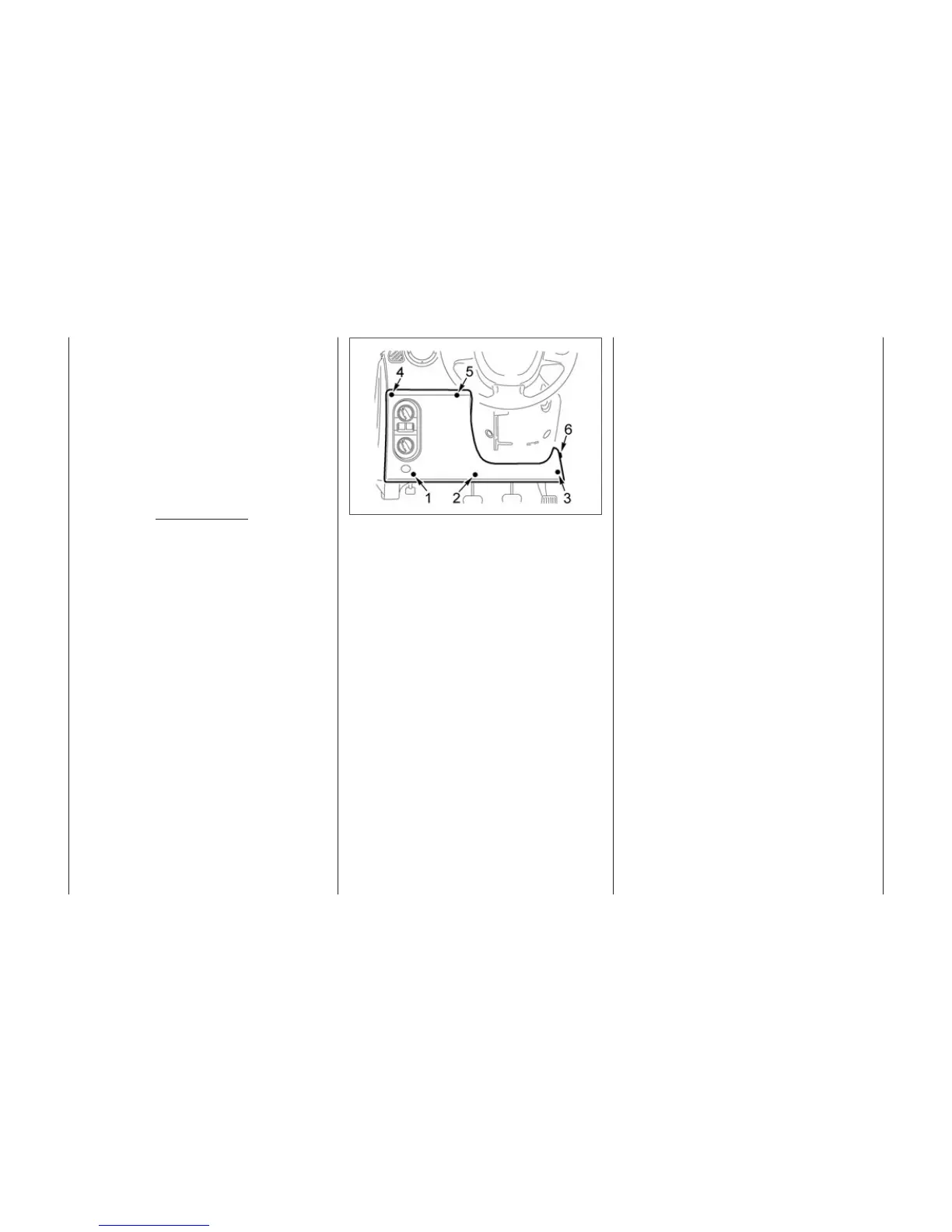

To access the fuse box with fuse
plugs (Fig. 57) pull the lower left
edge of the cover and release the left
cut-off point 1, then release the mid-
dle lower cut-off point 2 and the right
lower cut-off point 3, then the upper
cut-ff points 4, 5 and remove the
cover. The cover installation is per-
formed according to procedure as
follows: insert the holding lock 6 into
instrument panel opening and,
beginning from the right lower edge,
lock the cover lower fastenings in
points 3, 2, 1, and then the upper
fastenings in points 4 and 5. Watch
after accurate striking of the cover
fastenings into metallic holding
locks, installed in the instrument
panel.
Current strength that the fuse is
designed for, is indicated on its face,
and the fuse number is indicated on
the fuse box housing.
During the fuse block cover re-
installation, make sure of the wire
harness shoe reliable connection to
the trunk lid latch actuator switch
and of no wire pinches.
In case of repeated failure of the
fuse, to locate and eliminate the
cause of its melting, refer to any
SSNE certified by the manufacturer.
88
Fig. 57. Opening the setup block
