Warning
The bonnet is a source of
increased injury hazard. There-
fore, when closing the bonnet, be
extremely careful, especially
when the children are nearby.
ATTENTION!
To prevent damage, do not
turn on the windshield wiper with
the bonnet opened.

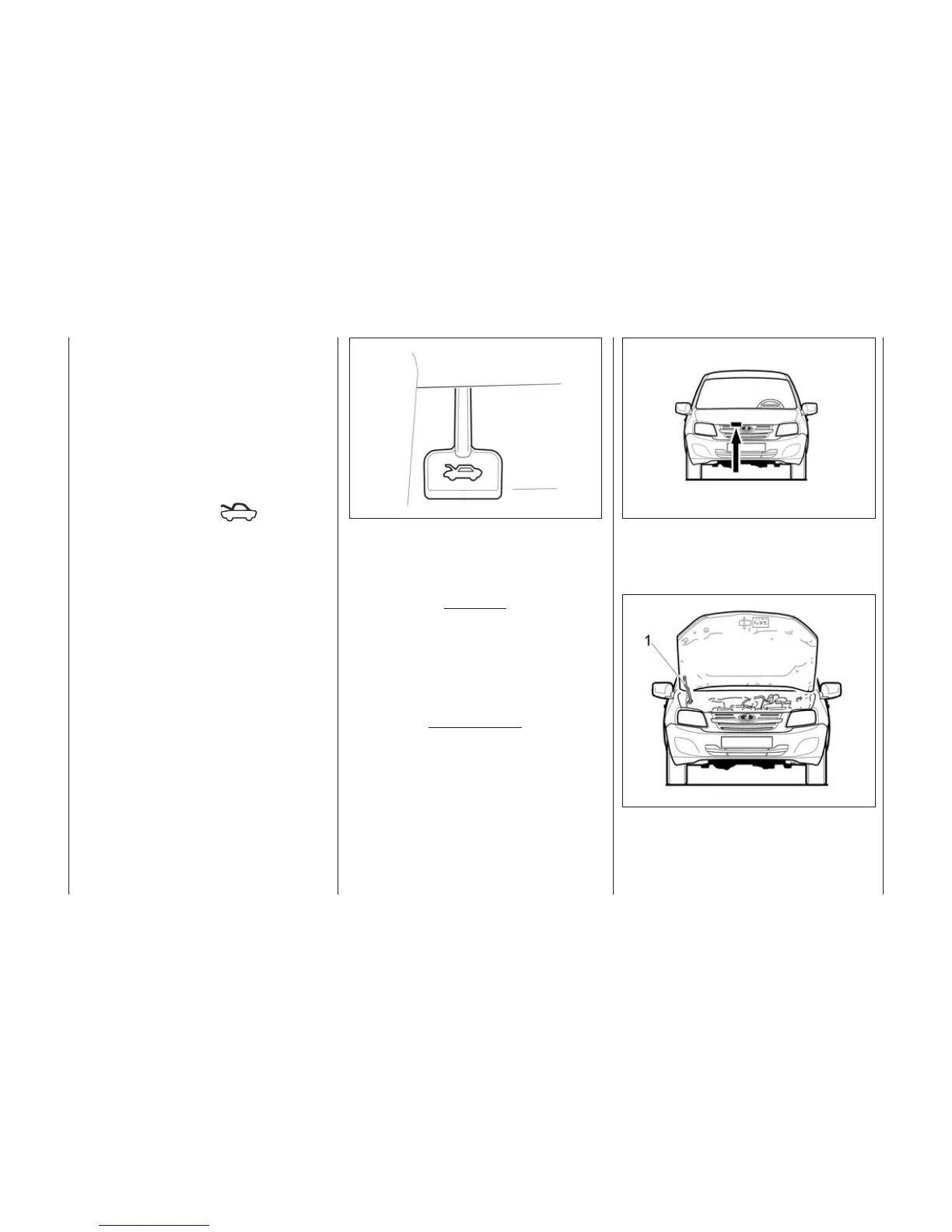

Fig. 22. Bonnet handle
Fig. 23. Protective hook tab
Fig. 24. Opening the bonnet
To access the to the engine com-
partment pull handle (Fig. 22),
located on the left side of the instru-
ment panel under illuminating engi-
neering control module (see Fig. 28),
raise the bonnet and through created
air space push the protective hook
tab to the right (Fig. 23). Raise the
bonnet and set the stop 1 (Fig. 24)
into special bonnet catch bracket, as
shown in the Figure. Thereat, for
easy fixation it is not recommended
to open the bonnet in excess (for
more than 10 centimeters) from the
top end of the set stop 1.
Free closing of the bonnet should
be made from maximum 25 centime-
ters height between the edge of the
bonnet and the top cross member of
the front end carrier. When closing
the bonnet, check the lock for reli-
able operation: when closing, a dis-
tinctive click should be heard.
BONNET
