matically returns to its initial position,
ready for use.
ATTENTION!
1. Do not hold down the ciga-
rette lighter forcefully for a long
time, this can cause its overheat-
ing and the spiral burn-out. At
that, the cigarette lighter bi-
metallic fuse will be actuated,
that would lead to the fuse blow-
out in the vehicle setting block.
2. Do not clean the spiral of the
lighter moving part with metal
objects, it may cause damage to it.
3. When replacing you should
use only those types of cigarette
30

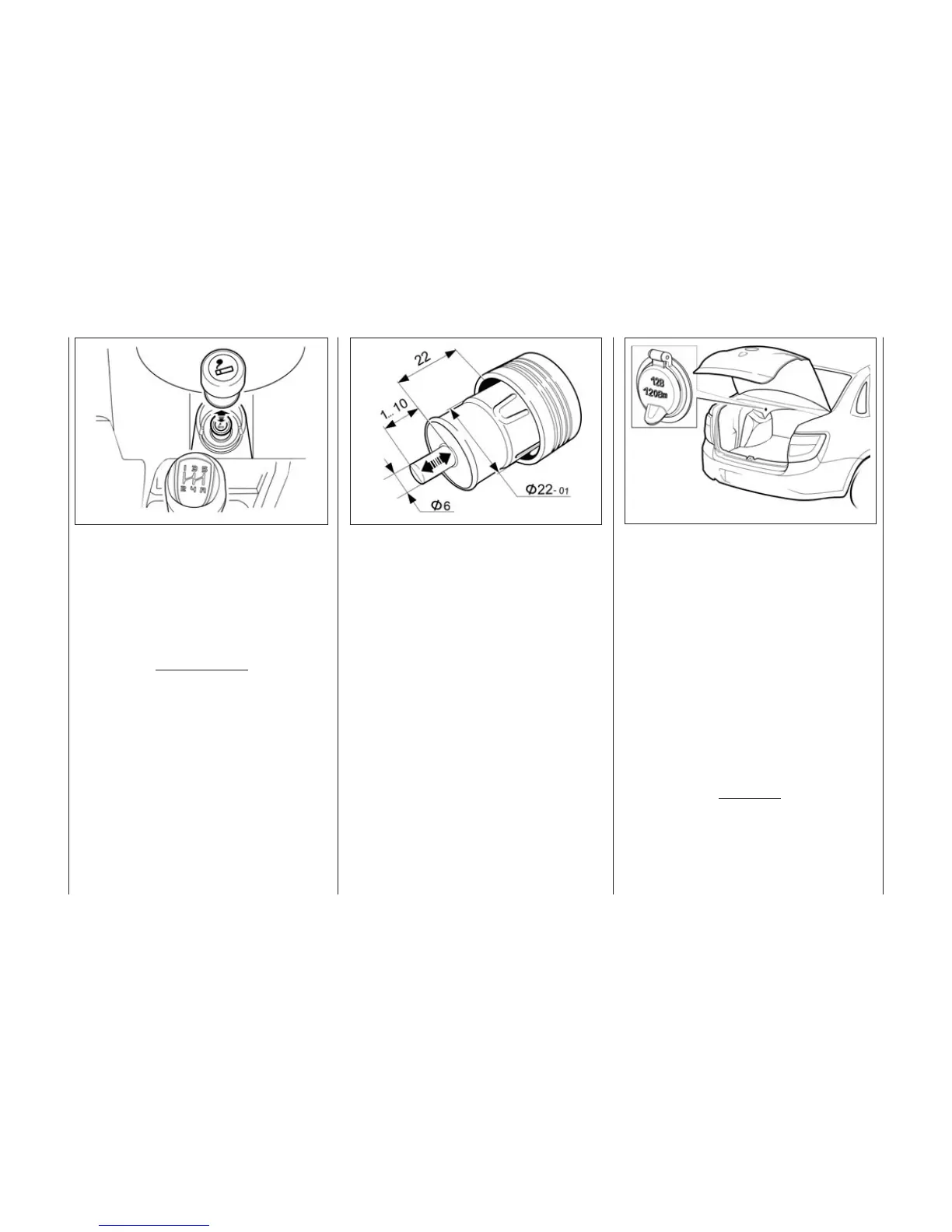

Fig. 21c. Electrical device plug
in the cigarette lighter socket
lighters that are recommended
for this vehicle, and only of those
manufacturers who have the JSC
«AVTOVAZ» conclusion.
4. The socket for additional
electrical equipment connection
(or the cigarette lighter socket,
depending on complete units)
can be also used to connect only
12-volt electrical appliances with
power output maximum 120 W.
The socket overloading can
cause short circuit. Do not use
more than one electrical device.
If the electrical device plug (con-
nector) is placed too loose or
tightly in the cigarette lighter
Fig. 21d. Socket for additional
electrical equipment in luggage
compartment (for some vehicles)
socket, it can lead to poor con-
tact, or to the plug (connector)
hang-up. Use the electrical devi-
ces only with appropriate plugs
(connectors) shown in Figure 21c.
5. Do not leave the electrical
appliances connected to the
socket if the driver and passen-
gers leave the vehicle or the vehi-
cle is parked (stored).
Warning
Do not touch the cigarette
lighter heating spiral, it can
cause burns or damages to the
heating spiral.
Fig. 21b. Cigarette lighter
(in the design variant)
