15
1.
Start/Stop Control Switch
6.
Cabinet with integrated mobility kit 12.
Blade
2.
Rip Fence
7.
Arbor Height adjustment control 13.
Blade Guard
3.
Fence Front Guide
8.
Arbor Tilt adjustment control 14.
Riving Knife
4.
Fence Rear Guide
9.
Dust Extraction outlet. 15.
Arbor Wrench
5.
Table with Miter Slots
10.
Motor Cover 16.
Push Stick
11.
Throat plate 17.
Miter Gauge

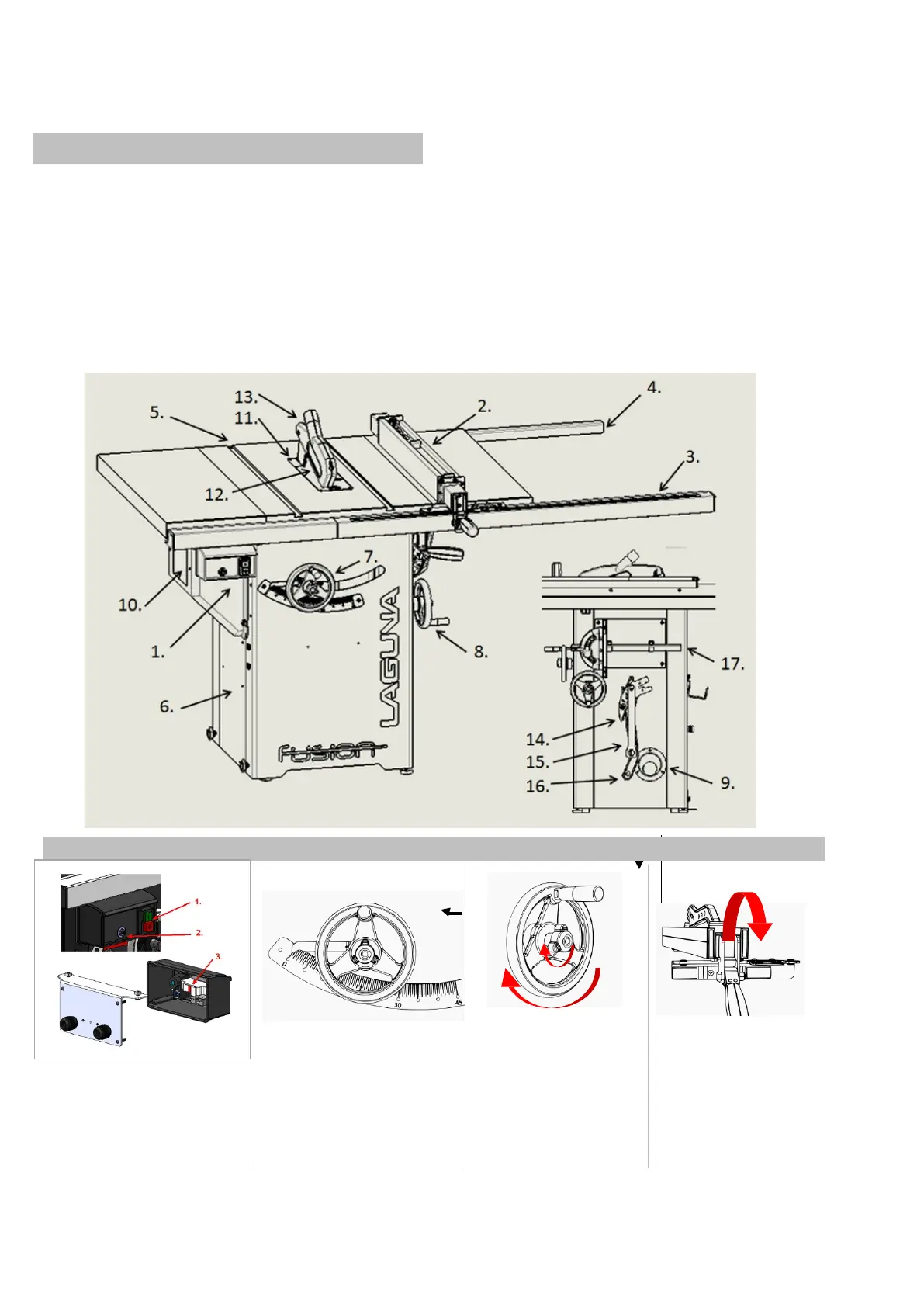

Tool Overview
Your new Laguna Tools machine is comprised of different components to make a long lasting and precise piece of machinery that will help you
with your next project. Understanding your new machine and its components will make you a better craftsman.
The basic components of the table saw are:
Controls
Start/Stop/Fuse
Arbor Height Control
&
Tilt
gauge
Arbor Tilt
control
Fence clamp
lock
`
``
1. Magnetic Switch
2. Overload Protector
3. Fuse
CAUTION: ALWAYS TURN OFF AND
UNPLUG THE MACHINE BEFORE
CHANGING THE FUSE
The arbor height control adjusts the
height of the blade. Centered in the
control is the height adjustment lock.
Behind the control is the tile gauge.
CW to raise, CCW to lower blade.
CAUTION: DO NOT ADJUST HEIGHT
WHEEL WHEN LOCKED.
The tilt control, located on the
right of the cabinet, adjusts the tilt
of the arbor. Center is the tilt lock.
CW to tilt left, CCW to tilt the
blade to the right. CAUTION: DO
NOT ADJUST TILT WHEEL
WHEN LOCKED.
The fence clamp securely locks
the fence anywhere on the rail
by a cam action mechanism.
