laguna Fusion 2 - Routine Maintenance

F
u
si
o
n
T
ab
l
e
s
aw
29
k
Maintenance
To keep you Laguna Tools machine in top performance for many years please follow this maintenance schedule and refer to any instructions.
Daily
Check:
• Loose mounting bolts
• Damaged saw blade
• Damaged riving knifes, splitters, or blade guards
• Worn or damaged wires
• Any other unsafe condition
Weekly
Maintenance:
• Clean table surface and miter slot grooves
• Clean and protect cast-iron table
• Clean rip fence
Monthly
Maintenance:
• Clean/vacuum dust buildup from inside cabinet and off motors.
Notes
• Check/replace belt for proper tension, damage or wear.
Every 6–12
Months:
•
Lubricate trunnion slides.
• Lubricate worm gear.
• Lubricate leadscrew.
• Lubricate gearing and gearboxes.
warning: DO NOT perform any of the following steps,
installations, or adjustments with the saw connected to the
power source.

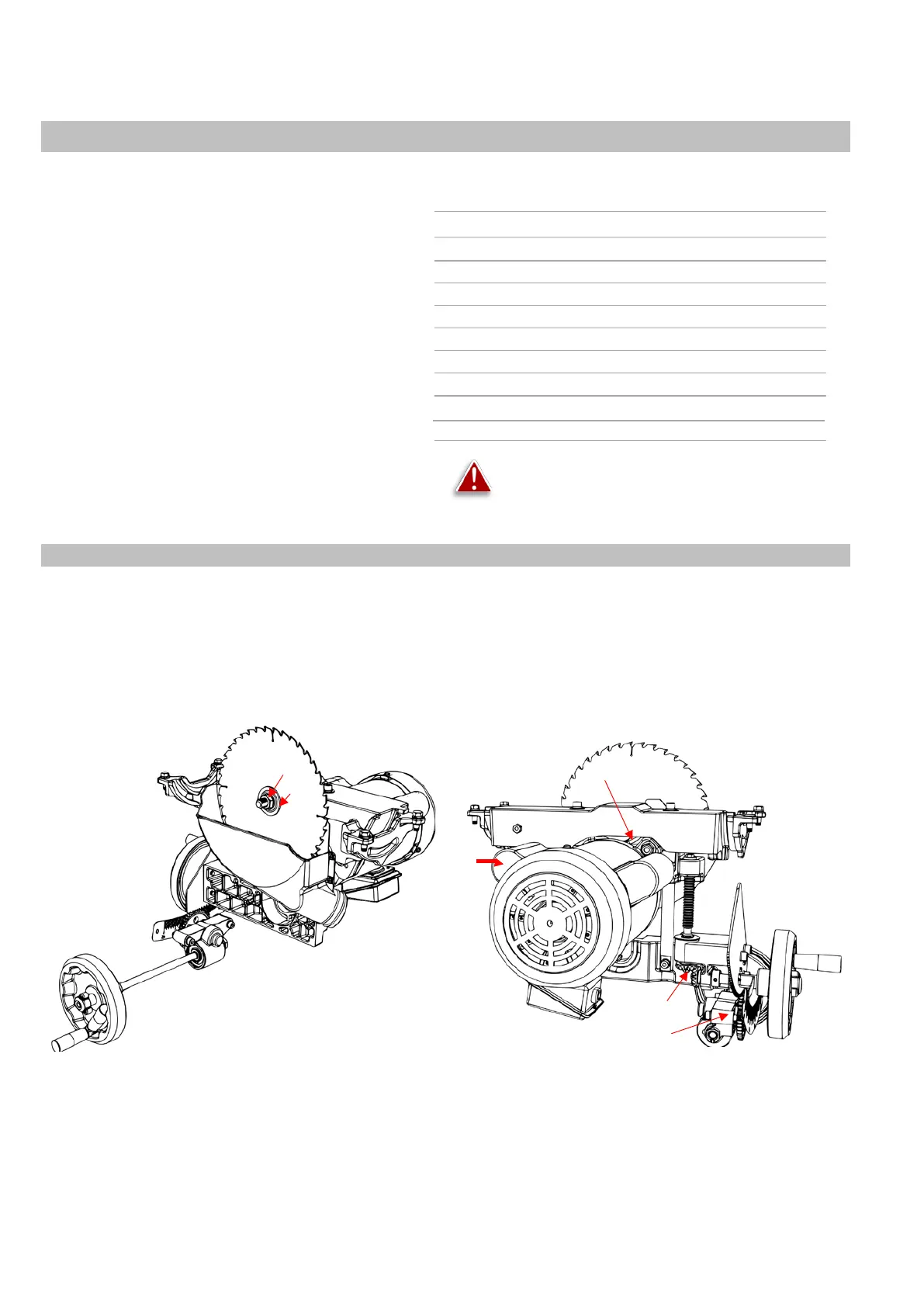

Internal Components Map
A. Motor
B. Dust Shroud
C. Trunnion Slides (Support)
D. Upper Trunnion
E. Lower Trunnion
F. Arbor Nut
G. Arbor Washer (Flange)
H. Blade
I. Tilt Gearing
J. Height Gearing
K. Belt (behind blade)
L. Worm Screw
M. Tilt Plate
N. Start Capacitor (see spec sheet)
O. Run Capacitor (see spec sheet)
f
g c
c
h
d
b
n
o
A
l
M
e
j
i
