laguna Fusion 2 - Fusion 3 Tablesaw Specifications

4
© 09/2019, Laguna Tools, Inc.
F
u
si
o
n
T
ab
l
e
s
aw
TAB
L
E
S
AW
S
P
EC
I
F
IC
G
E
N
E
R
A
L
E
L
EC
T
RI
C
AL
N
C
LU
D
E
D
W
I
TH
PUR
C
H
A
S
E
NA
M
E
&
MO
D
E
L

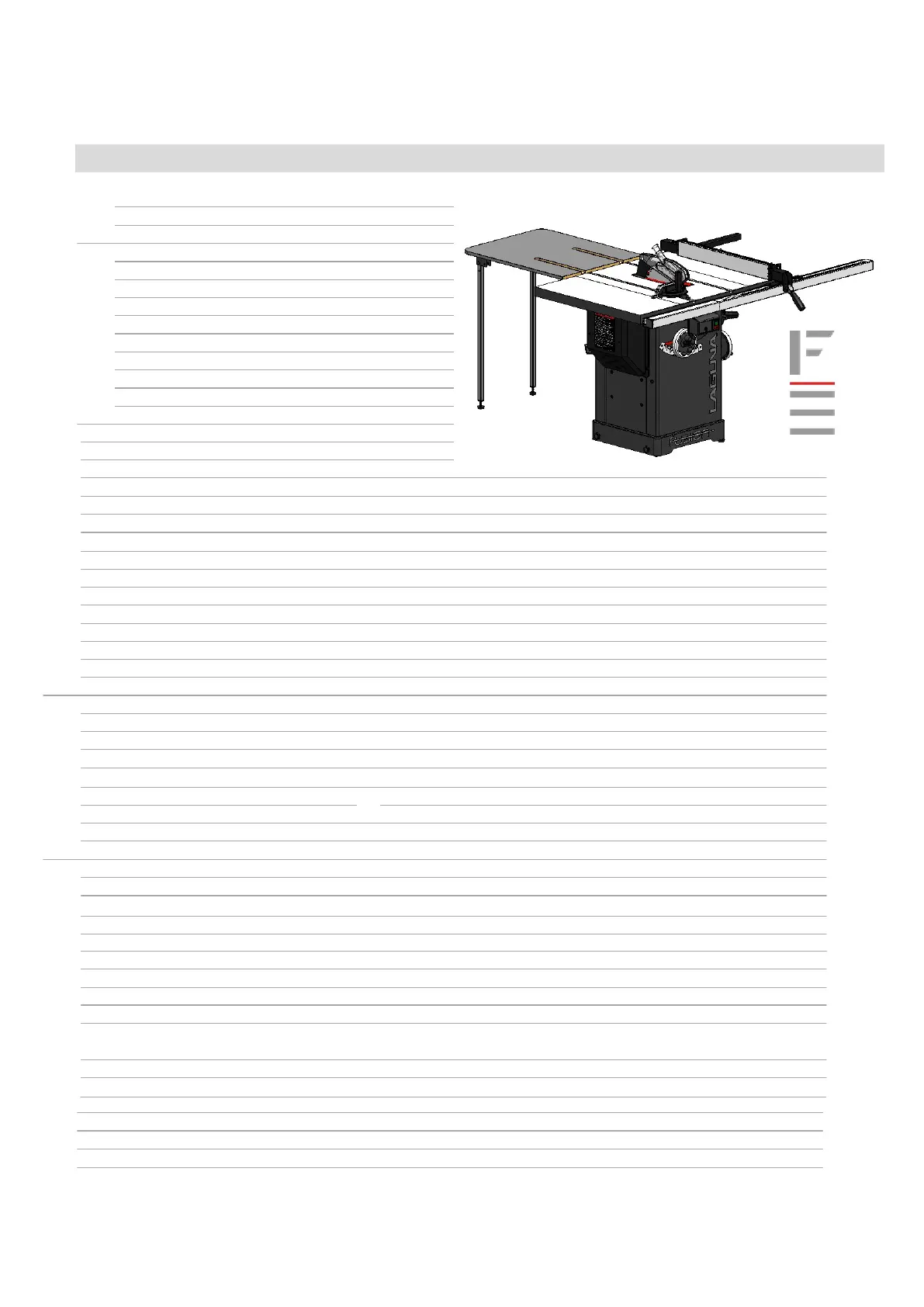

Fusion Tablesaw
Fusion
3
Tablesaw
Specifications
Advertised Name Fusion 3 Table saw
Stock Model CEF33623003
Professional Square Zero Clearance Throat Plate (pre-installed)
10" 40T Blade (pre-installed)
Riving Knife (pre-installed)
Mitre Gauge (ships in tool holder)
Tool Holder (pre-installed)
Fence
Blade Guard
Arbor Wrench
Installation and Adjustment Tools
Phase 1PH
Voltage 230V
Motor Type TEFC Capacitor Start AC Induction
Rating Input 2200 W
Motor Speed 2850 /min
-1
Cycle 50 Hz.
Full Load Amperage 14.5 Amp.
Start Capacitor 400 µF-U
Run Capacitor 50 µF-U
Switch Type Magnetic with Overload Protection
Power Transfer Single V-Ribbed Belt 142J FJ
Power Cord 2m. H07RNF
Power Plug Included CEE 7/7 Plug
Breaker Recommendation 30 Amp.
Foot Print (LxW) 503 x 520 mm
Overall Dimensions (LxWxH) 1663 x 1652 x 1080.9 mm
Shipping Dimensions (LxWxH) 870 x 1190 x 1085 mm
Net Weight (No Accessories) 157Kgs
Shipping Weight 202 Kgs
Dust Collection: Outlet Dia. 101.6 mm
Dust Collection: m
3
/h Min. Req. 934 m
3
/h
Sound Emissions N/A
Blade Diameter 250 mm
Bore Diameter Of The Saw Blade 30 mm
Arbor Speed 3800 /min
-1
Blade Rotation Count-Clockwise (Face arbor)
Rip Capacity, with Fence 914.4 mm Right, 431.8 mm Left (1,320.8 mm option)
Maximum Depth of Cut @ 90° 79mm
Maximum Depth of Cut @ 45° 56mm
Blade Tilt 45° Left, 3° Arbor Adjustment
Table Dimension, with Extensions 1117.5mm x 1663mm
(LxWxth.)
Extension Wing Dimension (LxW) 792 x 305 mm
Mitre Slot 19 to 23 mm T-slot
Fence Type Sliding Cam Action Fully Adjustable
Fence Face Dimensions (LxWxth.) 670 x 80 x 17 mm
Throat Plate Type Professional Square Zero Clearance
Throat Plate Dimensions (LxWxth.) 372 x 104.5 x 13 mm
Floor to Table Height 887 mm
