7.5 R ac k M o un ti n g 129
| www.lakeshore.com
7.5 Rack Mounting
The Model 335 can be installed into a 483 mm (19 in) rack mount cabinet using the
optional Lake Shore Model RM-½ rack mount kit. The rack mount kit contains
mounting ears, panel, handles, and screws that adapt the front panel to fit into a 88.9
mm (3.5 in) tall full rack space. Refer to
FIGURE 7-2 for installation details.
Ensure that there is a 25 mm (1 in) clearance on both sides of the instrument after
rack mounting.

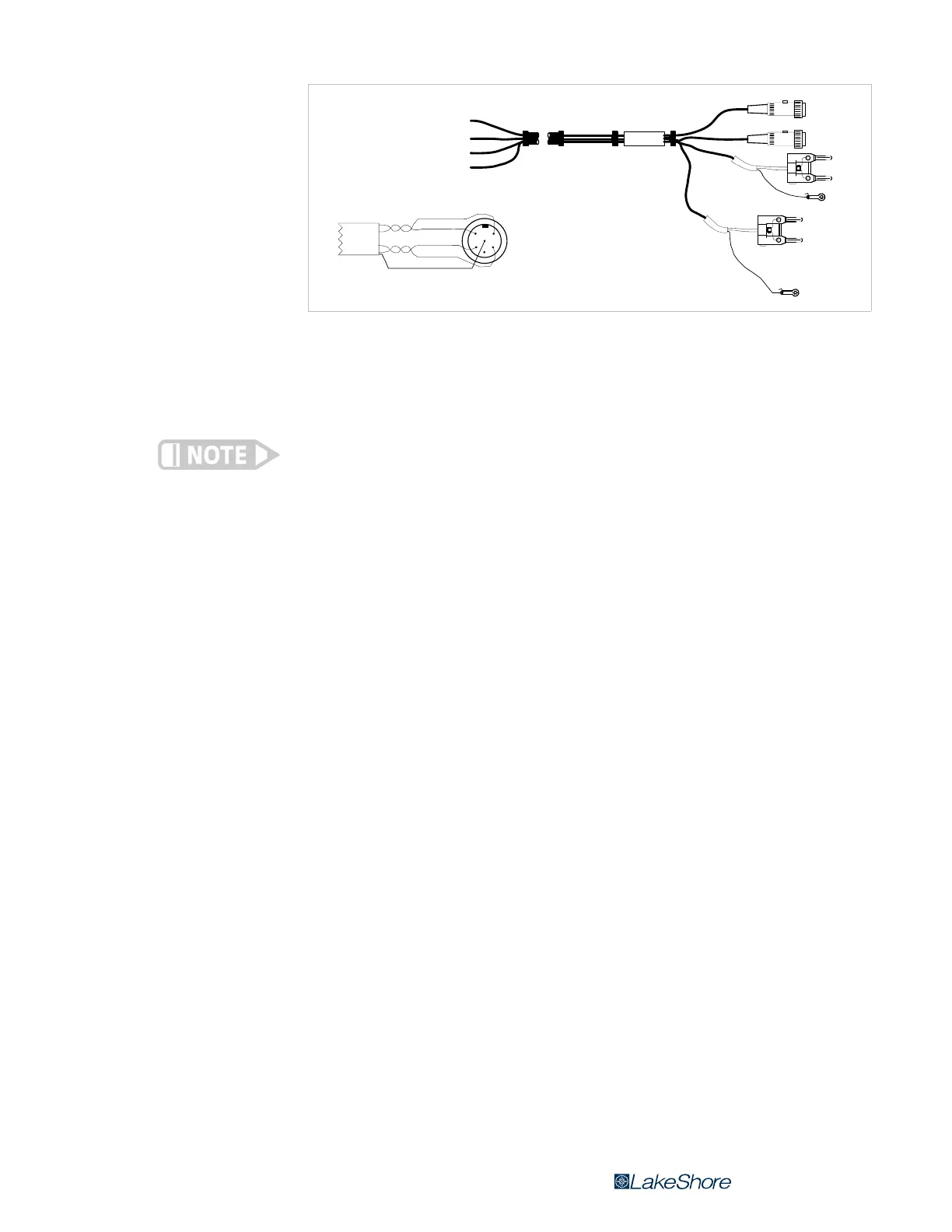

FIGURE 7-1 Model 335 sensor and heater cable assembly 10 ft: P/N 112-177, 20 ft: P/N 112-178
1
2
3
4
5
6
black (green)
hhh
h
rear view
green
red
black (red)
shield
red
black
red
black
