130 cHAPTER 7: Options and Accessories
Model 335 Temperature Controller
7.6 Model 3060-H
Thermocouple
Input Option
The field installable Model 3060-H thermocouple input option adds thermocouple
functionality to inputs A and B. While the option can be easily removed, this is not
necessary as the standard inputs remain fully functional when they are not being
used to measure thermocouple temperature sensors. Calibration for the option is
stored on the card so it can be installed in the field and used with multiple Model 335
temperature controllers without recalibration.

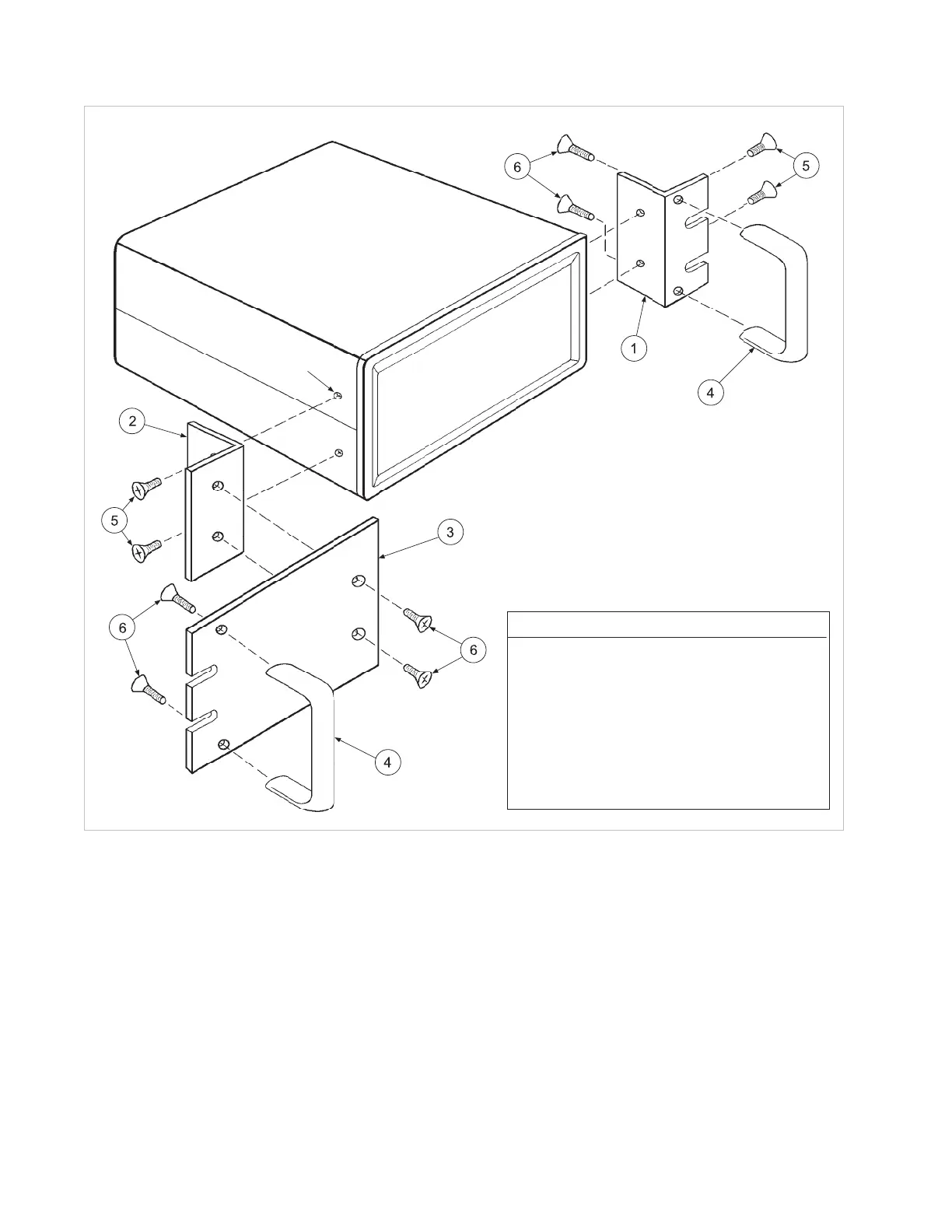

FIGURE 7-2 Model RM-q rack mount kit
NOTE
Customer must use 5⁄ge in (2 mm) hex
key to remove four existing screws
from sides of instrument.
Unit on right side mounting shown.
Unit on left side also possible.
Item Description P/N Qty
1 Rack mount ear 107-440 1
2 Rack mount support 107-442 1
3 Rack mount panel 107-432 1
4 Rack mount handle 107-051-01 2
5 Screw, 6-32 × ½ in 0-035 4
FHMS Phillips
6 Screw, 8-32 ×
3⁄i in 0-081 6
FHMS Phillips
Refer to
NOTE
To Next Page
