22
5 Operating Control and Displays
NOTICE!
Signals of points 4 and 5 in Fig. 5-15 Page 2 of inputs menu are "logical" signals, not "physi-
cal". The BT320/330 supports either oil or gas operation, but cannot be switched. Therefore
no separate signals for the oil or gas safety interlock chain are generated. The signal on ter-
minal X06 is thus generally known as burner‘s safety interlock chain.
Call up 4
th
page of inputs
1. Use cursor keys to select next page and press ENTER to confirm.
The display shows the 4
th
page of inputs:
5.4.8 Digital Outputs
Check digital outputs
1. Use the cursor keys to select the menu and press ENTER to confirm.
The display shows "Page 1 digital outputs" menu:

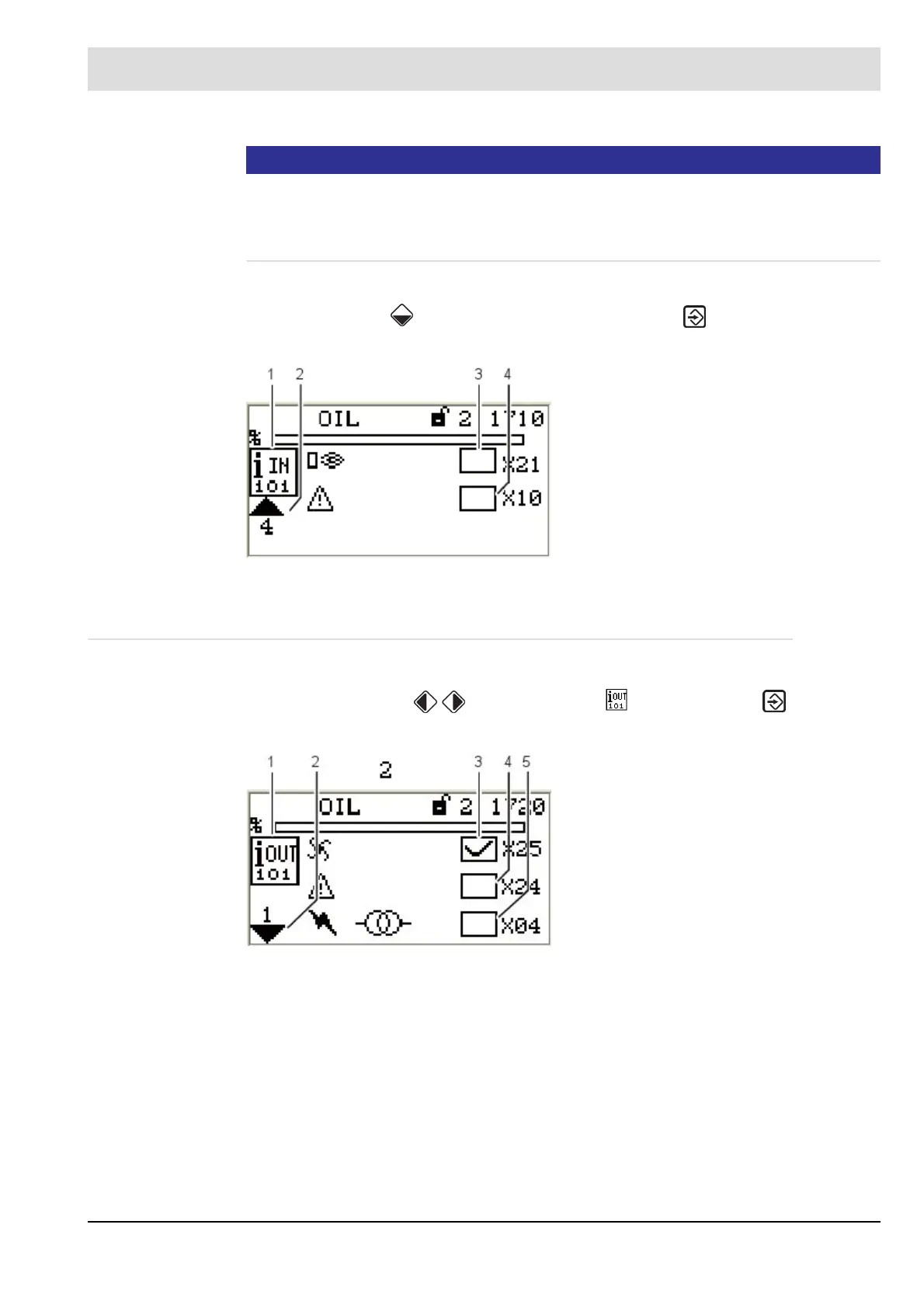

Fig. 5-17 Page 4 of inputs menu
1 Digital inputs pictogram
2 Jump to previous page
3 Flame signal present [no] - terminal X21
4 Fault release [no] - terminal X10
Fig. 5-18 Page 1 digital outputs menu
1 Digital outputs pictogram
2 Jump to next page
3 Fan [on] - terminal X25
4 Error [off] - terminal X24
(adjustable with P 809)
5 Ignition transformer [off] - terminal X04
To Next Page
