Lamtec F 200 K User Manual

- 24 -

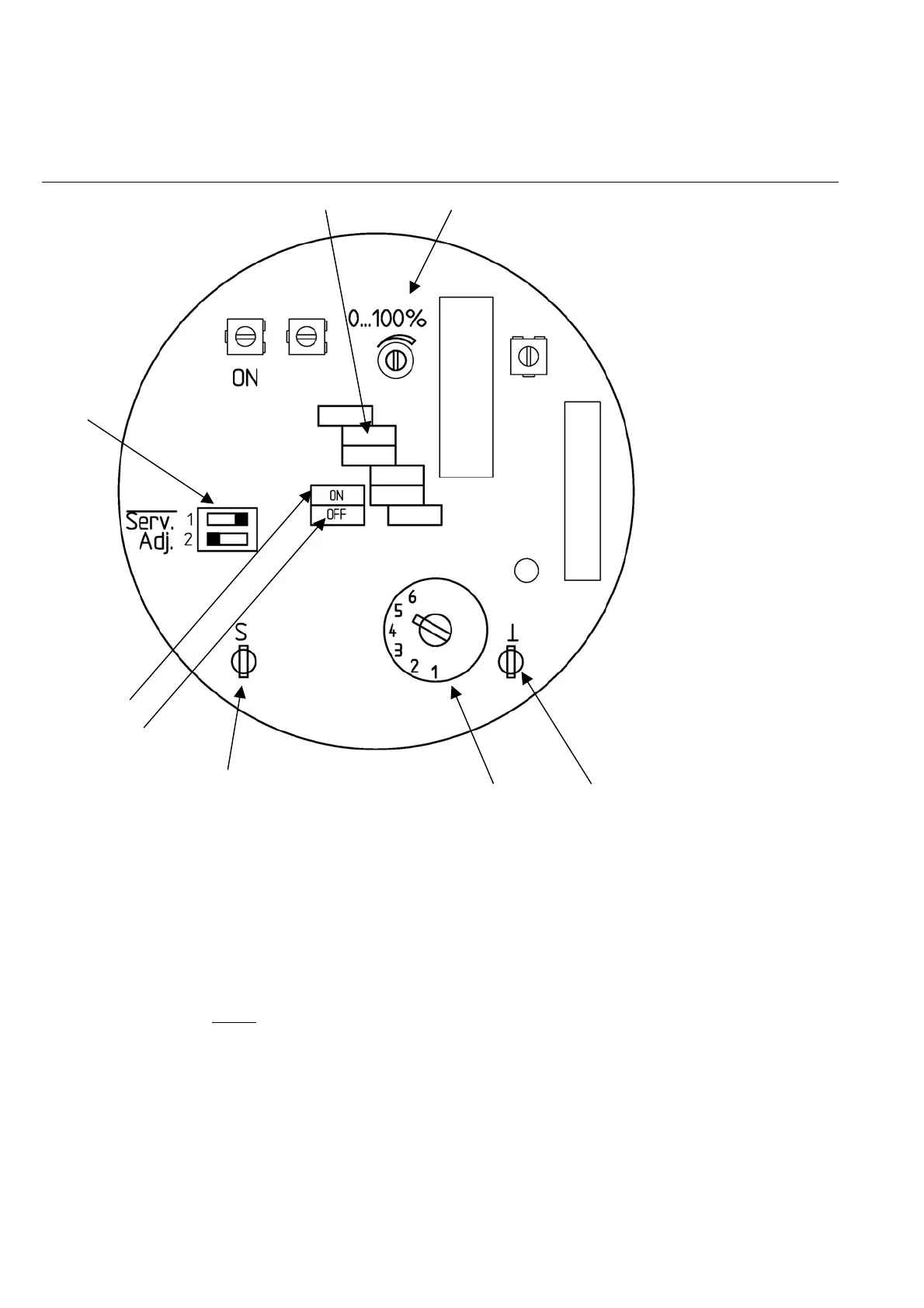

9 Layout of the operational controls
9.1 F 200 K1 … (in the state as delivered)
3 9
6
1
2
7 5 8
1 – LED (green): Indication, „Flame in" state
2 – LED (red): Indication, „Flame out“ state
3 – Intensity indicator for flame signal in the range 0 ... 100 %
5 – Sensitivity switch for gradual increase and/or decrease of sensitivity (amplification)
of the compact flame detector in 6 level, according to section 7.0.4 (setting)
6 – Serv. - Service switch, according to section 7.0.6 / Adj.- Adjust, according to
section 7.0.7
7/8 – Measuring points to measure the flame radiation received by the F 200 K
according to section 7.1.3
9 – Start-up suppression, according to section 7.0.8 and 7.1.3
