Lamtec F 200 K User Manual

- 25 -

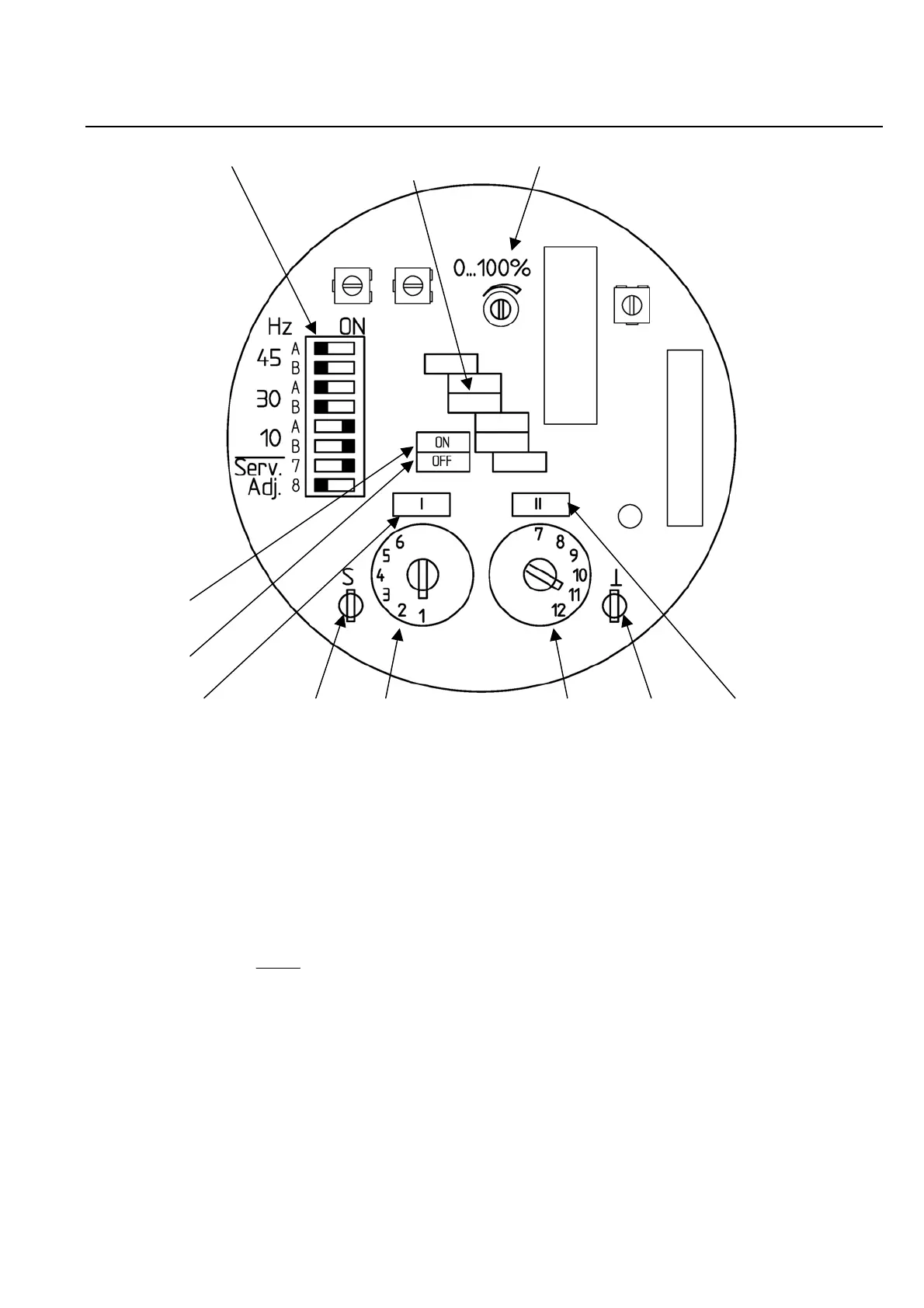

9.2 F 200 K2 … (Ex-proof), (in the state as delivered)
6 3 9
1
2
10 7 4 5 8 11
1 – LED (green): Indication, „Flame in" state
2 – LED (red): Indication, „Flame out“ state
3 – Intensity indicator for flame signal in the range 0 ... 100 %
4 – Sensitivity switch for range I (range of normal sensitivity), for gradual increase and/or de-
crease of sensitivity (amplification) of the compact flame detector in 6 levels, according to
section 7.0.4 (setting)
5 – Sensitivity switch for range II (range of higher sensitivity), 6 levels similar to switch (4)
6 – Serv. Service switch, according to section 7.0.6 / Adj.- Adjust, according to section 7.0.7 /
frequency switch according to section 7.0.5
7/8 – Measuring points to measure the flame radiation received by the F 200 K, according to
section 7.1.3
9 – Start-up suppression, according to section 7.0.8 and 7.1.3
10/11 LED (yellow), only for F 200 K2, lights for active range, Pre-selection according to section
12.2 (pin configuration) and 7.0.2
