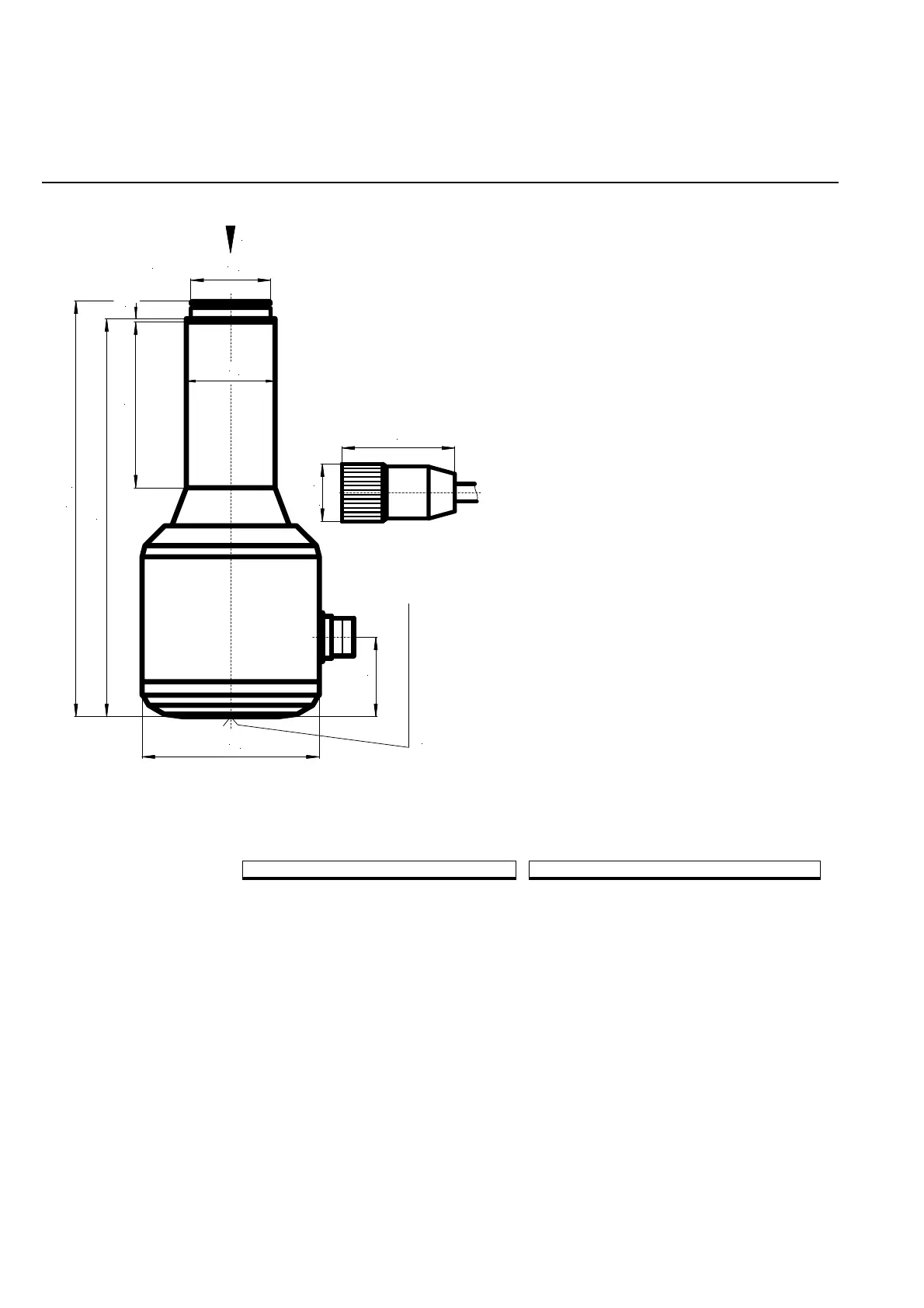

10 Dimensional drawings
10.1 F 200 K … and F 200 K Compact Flame Detectors... Z2 (hazardous area II)
36
Ø
180
75
Ø
40
± 2
26
Ø
1,5
188
36
Ø
51
Ø 35 Indication of the operating state
Light entry
port
Ø 22
80
Purchase order numbers F 200 K … :
Purchase order numbers F 200 K … Z2:
F 200 K1 IR-1 659 R 6001 F 200 K1 IR-1/Z2 659 R 6001/Z2
F 200 K2 IR-1 659 R 6002 F 200 K2 IR-1/Z2 659 R 6002/Z2
F 200 K1 IR-2 659 R 6007 F 200 K1 IR-2/Z2 659 R 6007/Z2
F 200 K2 IR-2 659 R 6008 F 200 K2 IR-2/Z2 659 R 6008/Z2
F 200 K1 UV-1 659 R 6003 F 200 K1 UV-1/Z2 659 R 6003/Z2
F 200 K2 UV-1 659 R 6004 F 200 K2 UV-1/Z2 659 R 6004/Z2
F 200 K1 UV-2 659 R 6005 F 200 K1 UV-2/Z2 659 R 6005/Z2
F 200 K2 UV-2 659 R 6006 F 200 K2 UV-2/Z2 659 R 6006/Z2
3m cable 659 R 6112 Device group: II
5m cable 659 R 6113 Device category: 3G
10m cable 659 R 6114 Device marking: EEx nC II T6 X
