29
5 Commissioning

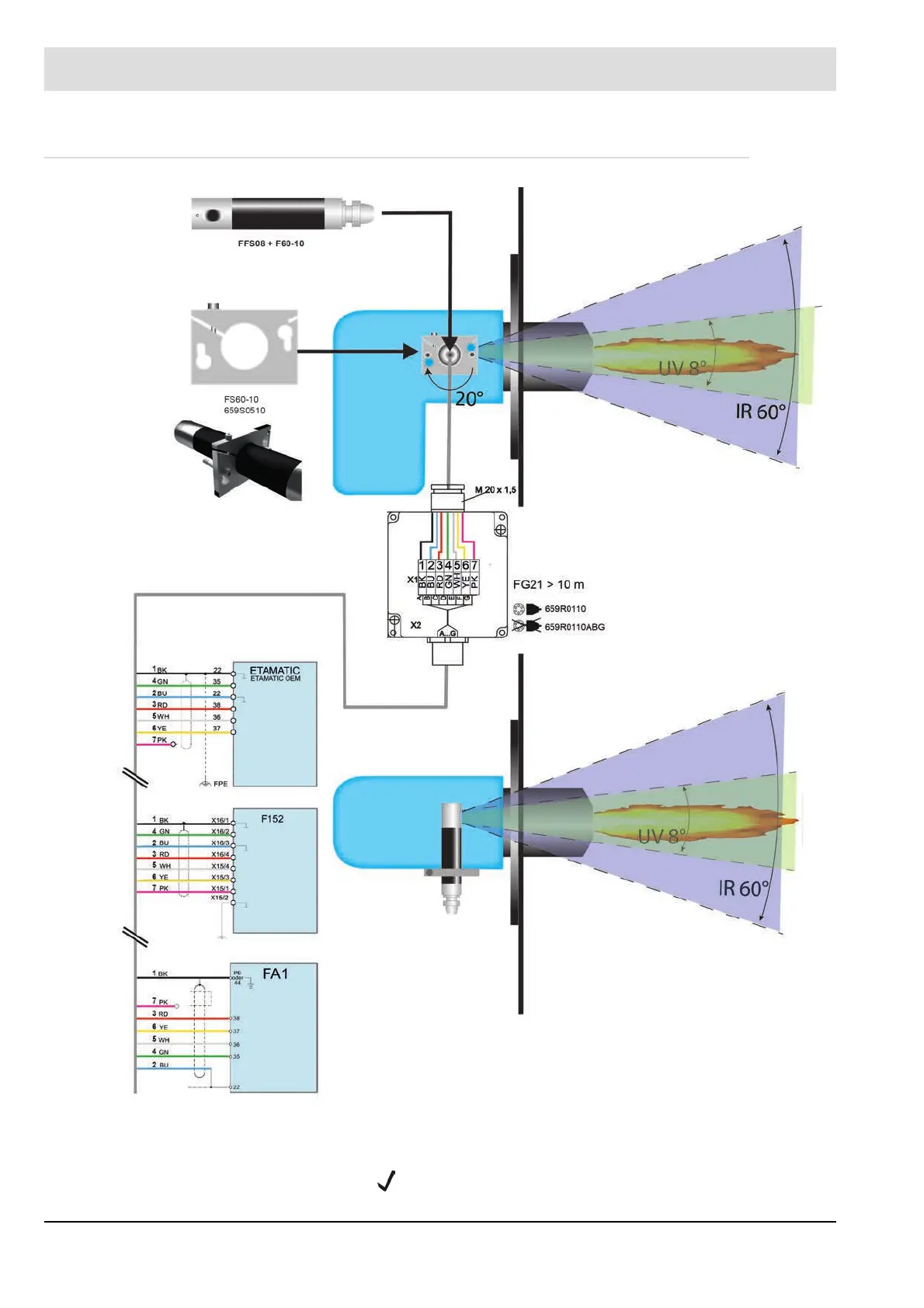

5.2.4.2 FFS08 mounting on the burner
BK Black RD Red WH White
BU Blue GN Green YE Yellow
PK Pink Recommended installa-
tion
4 Seal ring must engage!
