11.1.2 Flame Scanner FFS07/FFS08

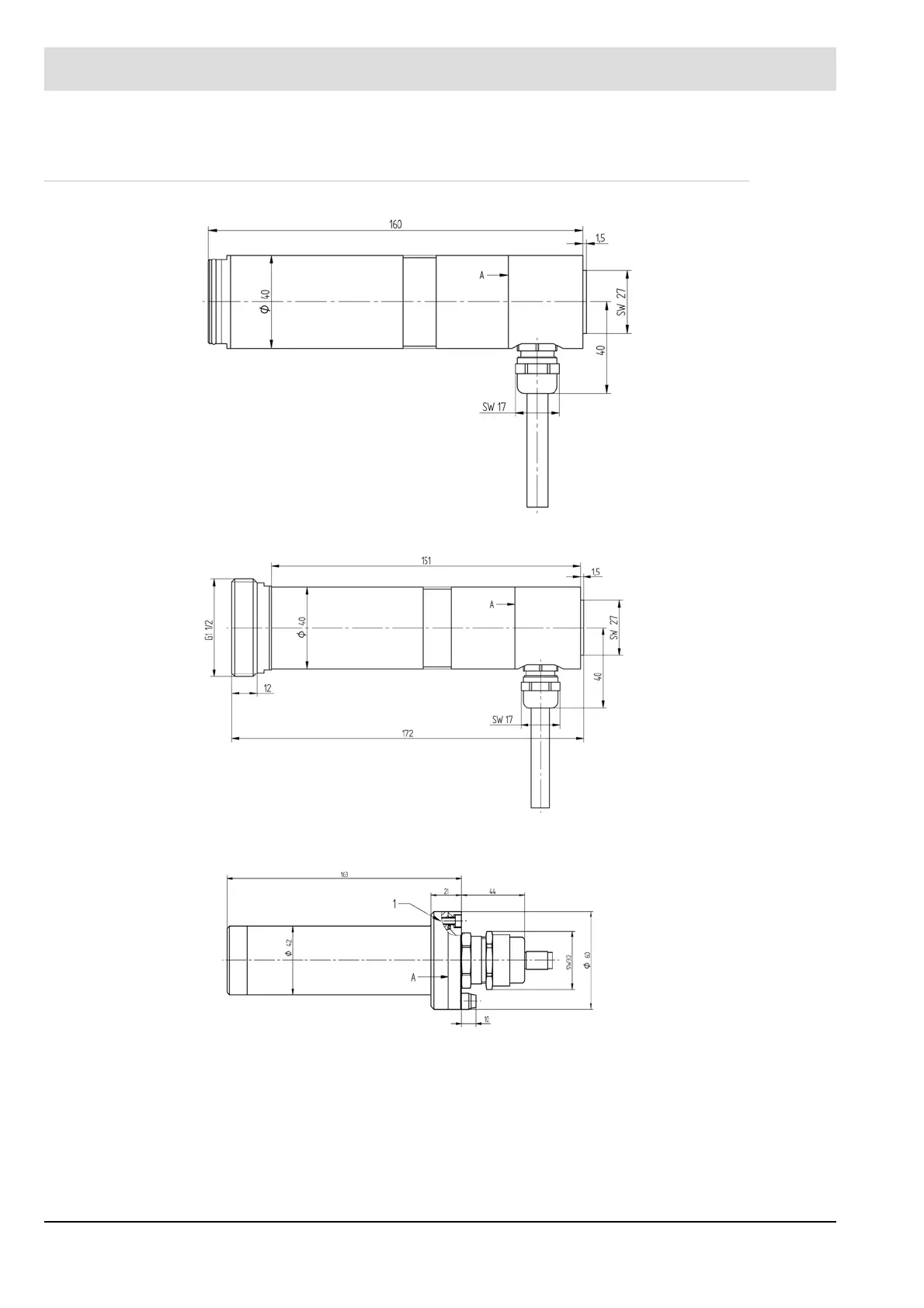

Fig. 11-2 Dimensions FFS07 standard version
Fig. 11-3 Dimensions FFS07 threaded connection version
Fig. 11-4 Dimensions FFS07...Ex
1 - Loose/tighten fixing screws with Allen wrench M4.
A - After finishing close housing tightly.
