59
11 Appendix
11.2.2 ETAMATIC with FFS07/08

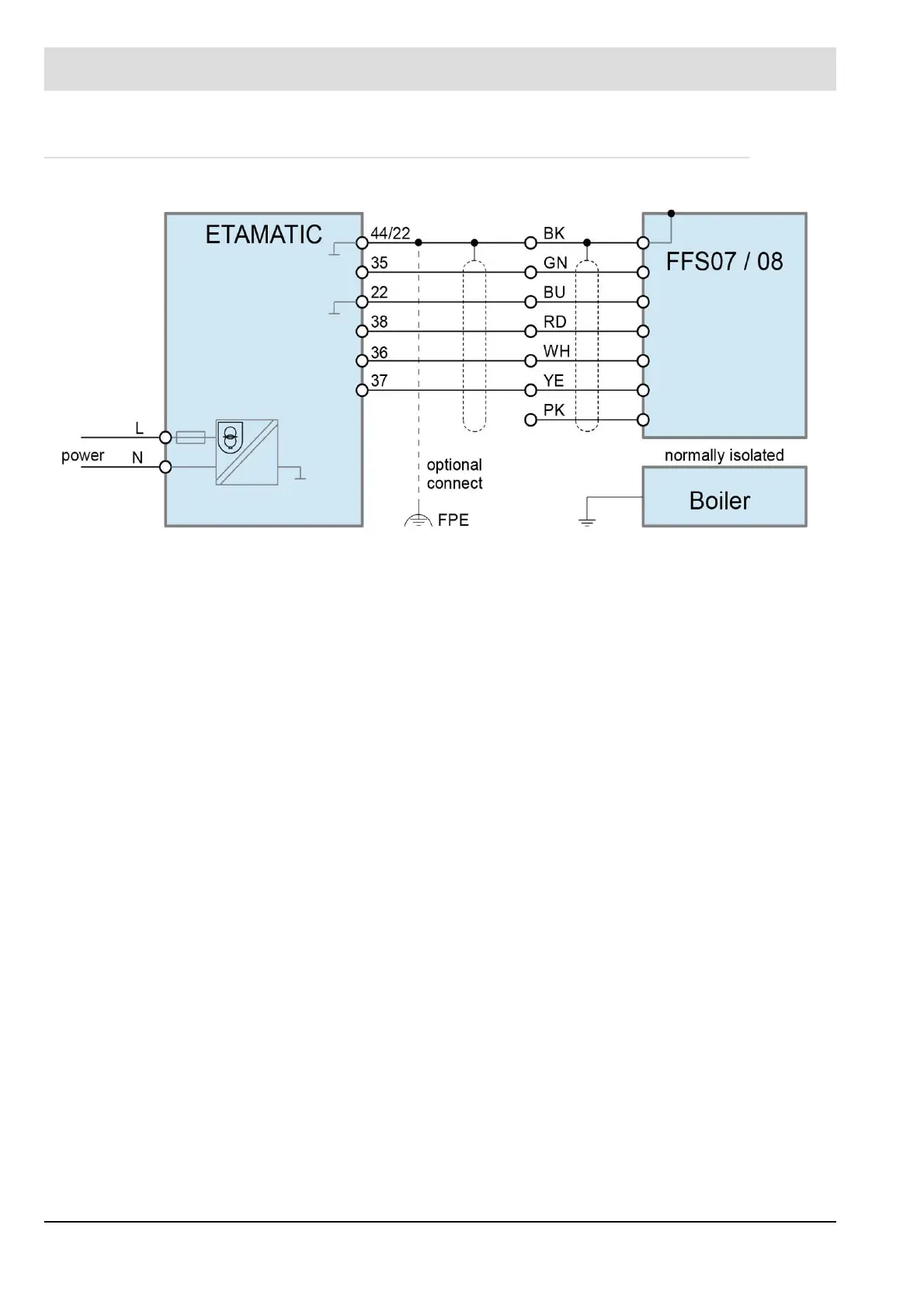

Fig. 11-15 Connecting diagram ETAMATIC - FFS07/FFS08
– Optional for deriving exceptional EMC interference.
– The connection leads to a short circuit between the device ground and FPE.
– As a result there may be for influencing devices -Etamatik- with the same ground refer-
ence.
Max. cable length between ETAMATIC and FFS07/08: < 300 m / 984 ft
Cable type: z.B. LiYCY
Cable cross-section: >= 0,5 mm
2
/ AWG20
See also Technical Data 11.1.2 Flame Scanner FFS07/FFS08
BK = black GN = green BU = blue
RD = red WH = white YE = yellow
PK = pink
