55
1
1
Appendix
1
1.1.3.2
Connection Housing FG 24 Ex

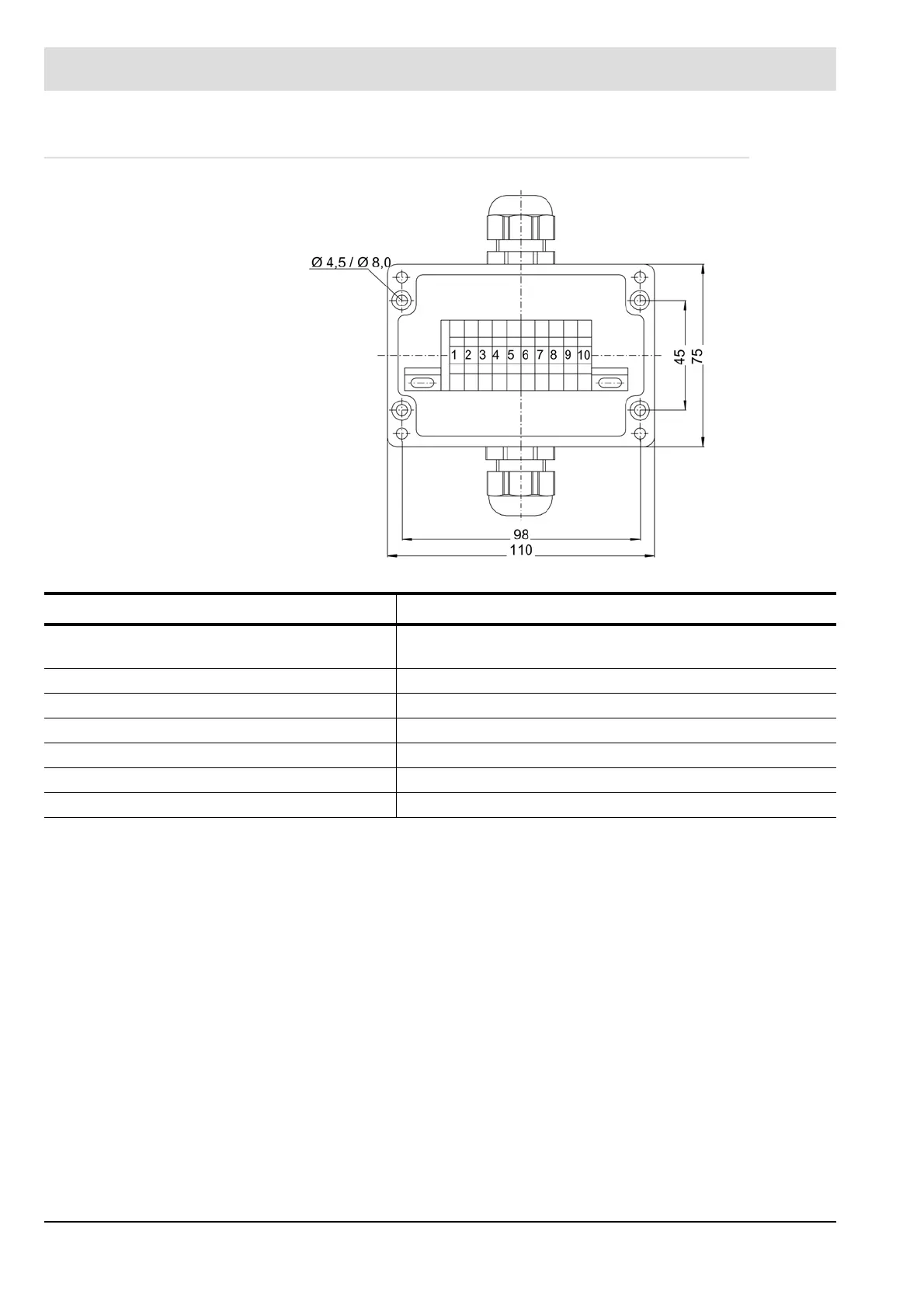

Fig. 1
1-10 FG 24 Ex Connecting housing
T
echnical Data
Ex classification:
II 2 G Ex e II T6 Gb, II 2 D Ex IIIC
T85°C Db
Sira 99
A
TEX 3173
Protection class:
IP66
Screwed cable gland pex:
e.g. 50.620 P
ASW/EX 5,5...13,0 M20x1,5
T
ype of terminal:
spring-type terminal
Clamping range:
0,5 mm
2
- 2,5 mm
2
Stripping range:
8 mm - 9 mm
Ambient temperature range:
- 30... + 70°C
55
57
Table of Contents
Default Chapter
3
Table of Contents
3
1 Important Information about the Manual
6
Target Group
6
2 General Safety Instructions
8
Product Safety
8
Product-Specific Dangers
9
3 Product Description
10
Proper Use - Conditions of Use
10
Life Cycle
10
Rating Plate
11
Selection Criteria
12
Accessories
14
Adjustable Holder, Cooling-Air Housings
14
Connection Housing
19
Flame Scanner Testing Device
19
4 Design and Functions
20
Design
20
Functional Description
21
Control Elements
22
5 Commissioning
23
Safety
23
Safety When Putting the Device into Operation
23
Electrical Safety - Requirements to be Met by Third-Party Manufacturers
24
Special Points to Note When Using the Device in Explosion-Proof Areas
25
Setup
27
Electrical Connection
27
Prerequisite for Mounting the Device Properly
27
Positioning
28
FFS07 and FFS08 Installation on Burner
29
5.2.4.1 FFS07 Mounting on the Burner
29
5.2.4.2 FFS08 Mounting on the Burner
30
Putting the Device into Operation for the First Time
31
Requirements
31
Adjustment and Positioning
31
Testing the Functions
33
Set Sensitivity
34
Switch-Off Test
38
Acceptance
38
6 Maintenance
39
Maintenance Tasks
39
Mounting/Dismounting the Sluice Plate
40
Customer Service Information
41
Warranty and Delivery Terms
41
7 Repairs
42
8 Correcting Faults
43
Fault Finding and Troubleshooting
43
Faults During Ignition
43
Faults after Assembly
43
Faults During Operation
44
Information about the Repair Service
44
9 Decommissioning
45
10 Disposal Notes
46
11 Appendix
47
Technical Data
47
Flame Monitor F152
47
Flame Scanner FFS07/FFS08
50
Connection Housing
55
FG 21 Connecting Housing (Aluminium)
55
11.1.3.2 Connection Housing FG 24 Ex
56
Flame Scanner Testing Device FFP30
57
Connecting Diagrams
59
F152 with FFS07/FFS08
59
ETAMATIC with FFS07/08
60
Declaration of Conformity
61
Order Information
63
