Lantronix CoBox-Micro User Manual

CoBox-Mini Test Bed
3-7

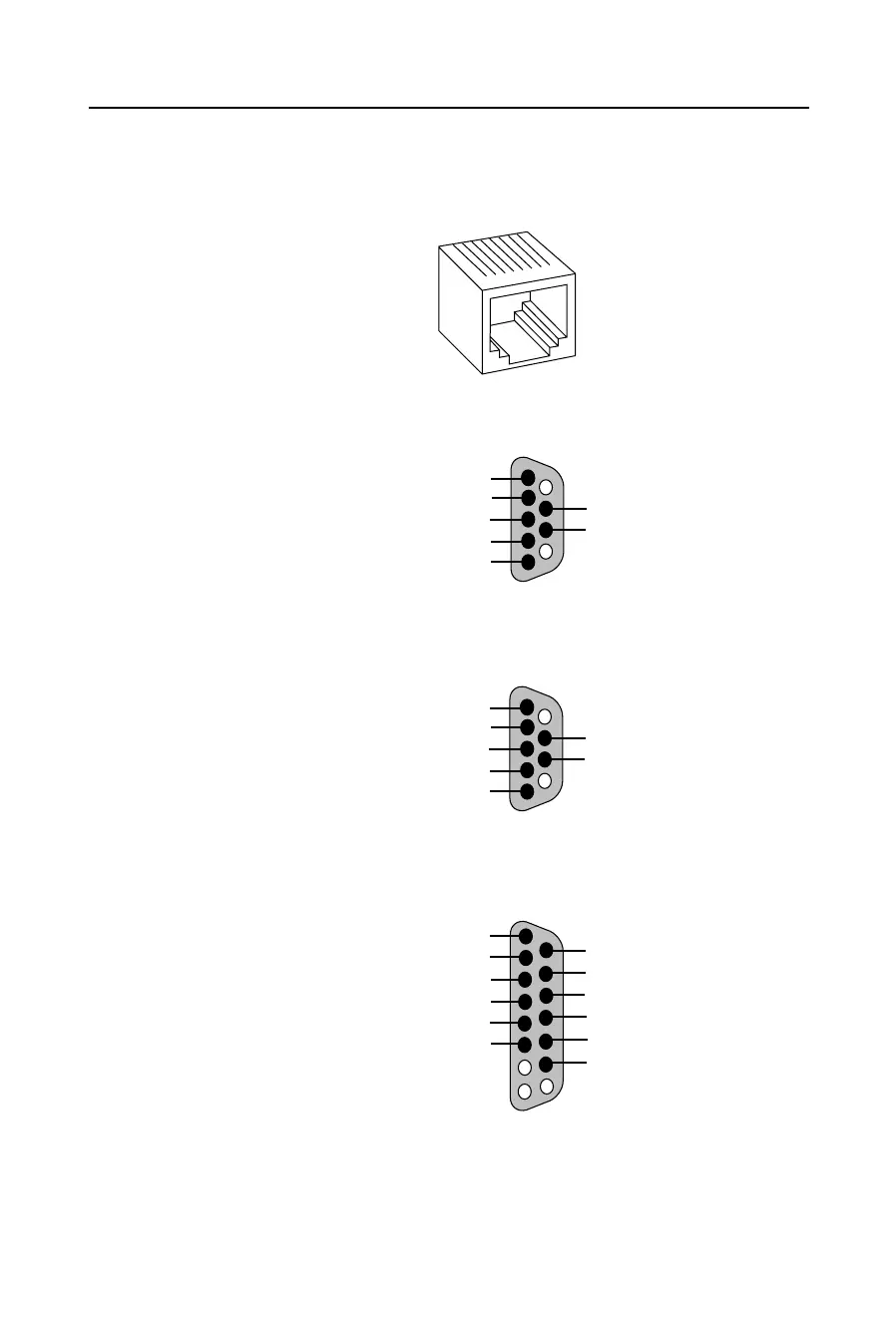

Figure 3-4: Pinout Configurations
1
8
1 - Tx+
2 - Tx-
3 - Rx+
6 - Rx-
CON8 Serial Connector
CON9 AUI Connector
5
1
9
6
GND
DCDA (in)
RxA (in)
TxA (out)
DTRA (out)
RTSA (out)
CTSA (in)
5
1
9
6
GND
DCDB (in)
RxB (in)
TxB (out)
DTRB (out)
RTSB (out)
CTSB (in)
1
9
8
15
GND
GND
GND
GND
GND
COL+
Tx+
Rx+
COL-
Tx-
Rx-
+12VDC
CON4 RJ45 Connector
CON7 Serial Connector
