13: Maintenance and Diagnostics Settings

EDS1100/2100 Device Server User Guide 114

MIB-II Statistics

The MIB-II Network Statistics page shows the various SNMP-served Management Information

Bases (MIBs) available on the EDS1100/2100 device server.

To view MIB-II statistics:

1. Select Diagnostics on the menu bar and then MIB-II at the top of the page menu. The MIB-II

Network Statistics page opens.

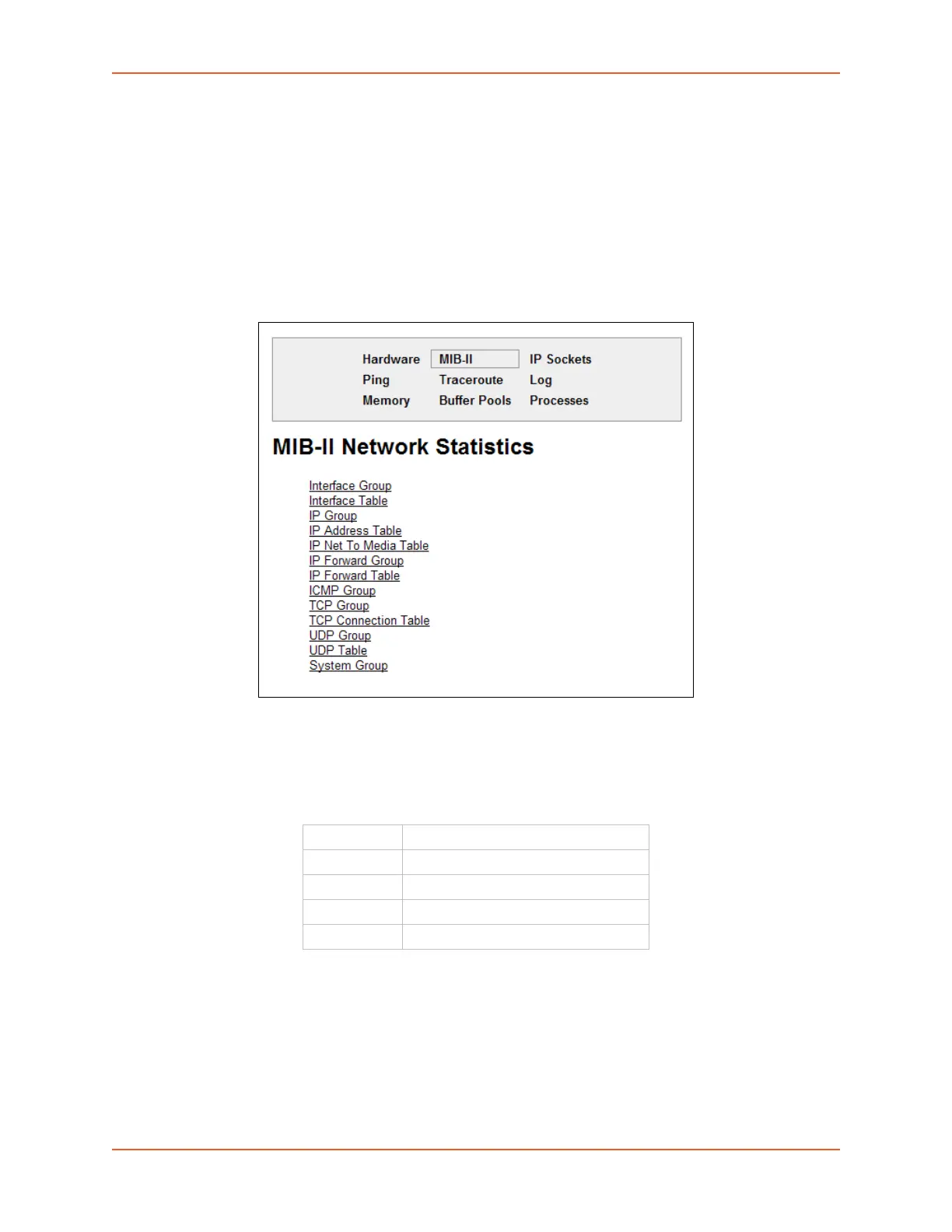

Figure 13-18 MIB-II Network Statistics

2. Click any of the available links to open the corresponding table and statistics. For more

information, refer to the table below:

Table 13-19 Requests for Comments (RFCs)

RFC 1213 Original MIB-II definitions.

RFC 2011 Updated definitions for IP and ICMP.

RFC 2012 Updated definitions for TCP.

RFC 2013 Updated definitions for UDP.

RFC 2096 Definitions for IP forwarding.
