13 Firmware Updates
Linux Software Developers Kit (SDK) User Guide 71
4. Push the firmware update file to the target. Note that firmware updates must be pushed to
/var/firmware.img.
ftp> put uclinux-kernel-and-romfs-and-erase-jffs2-area.bin
/var/firmware.img
Updating via a WEB Browser
To update the target via WEB Browser with an image file generated by makeimage2.py (see the
previous section), perform the following steps:
1. From your host system, launch an HTTP session to the target via WEB Browser. Note that
this can be done when the target is running with
CONFIG_USER_LANTRONIX_S2E_UPDATE.

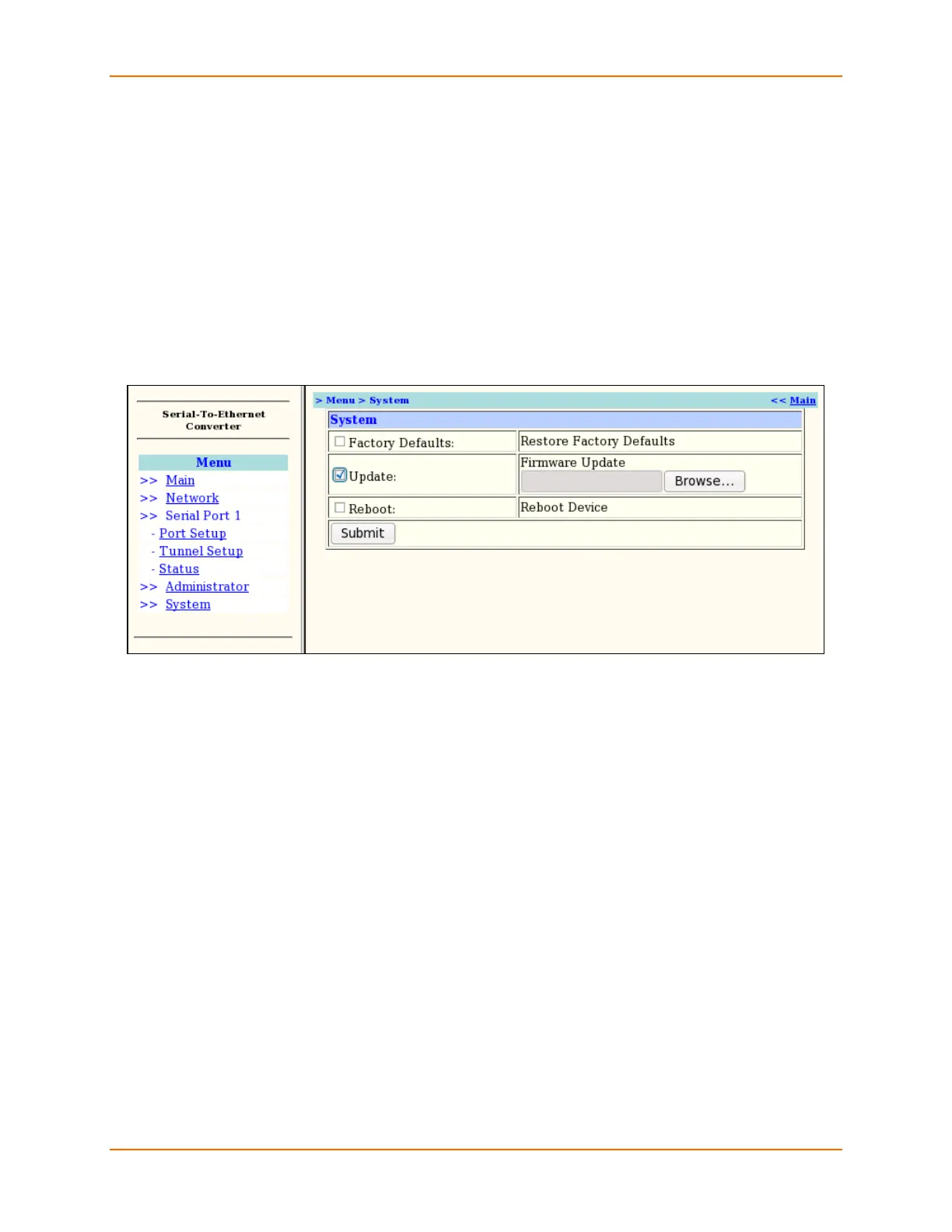

Figure 13-1. Serial-To-Ethernet System Setup Screen
2. Click Browse and select the firmware file.
3. Select Update and then click Submit.
