8: Line and Tunnel Settings
EDS1100/2100 Device Server User Guide 61
Connecting Multiple Hosts
If more than one host is configured, a Host Mode option appears. Host Mode controls how
multiple hosts will be accessed. For EDS1100/2100, the Connect Mode supports up to sixteen
Hosts. Hosts may be accessed sequentially or simultaneously:
Sequential – Sequential host lists establish a prioritized list of tunnels. The host specified as
Host 1 will be attempted first. If that fails, it will proceed to Host 2, 3, etc, in the order they are
specified. When a connection drops, the cycle starts again with Host 1 and proceeds in order.
Establishing the host order is accomplished with host list promotion (see Host List Promotion
on page 62). Sequential is the default Host Mode.
Simultaneous – A tunnel will connect to all hosts accepting a connection. Connections occur
at the same time to all listed hosts. The device can support a maximum of 64 total aggregate
connections.

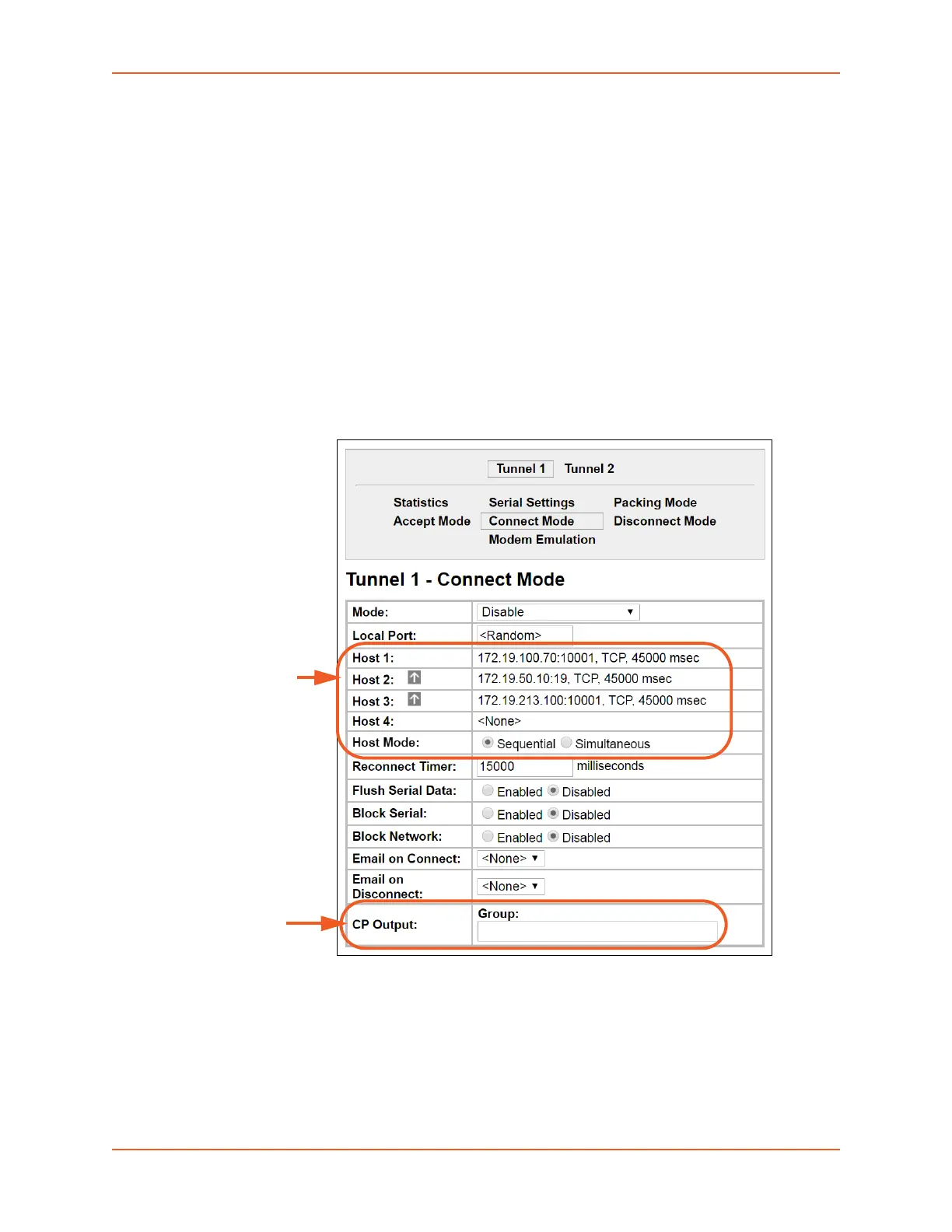

Figure 8-17 Host 1, Host 2, Host 3 Exchanged
Note: The Host Mode
options is supported in all
products except the
XPort AR.
Note: The CP Output
option is only supported in
MatchPort b/g Pro, XPort Pro
and XPort AR device servers.
