NMS045 Reference Manual Solar Installation 4-2
the SLP003 solar panel and mount. See 2.3 "Assembling
the Solar Bracket" on page 2-2.
Step 4 Establish which side of the pole is best for the solar panel
to face. It should face an unobstructed view of the sun’s
main trajectory in the sky.
• Southern hemisphere: facing the north.
• Northern hemisphere: facing the south.
TAKE NOTE Mount panel so the
solar outlet is close the to the
solar cables on the panel. Do
not strain the cables.
Step 5 Using the included u-bolts install the top and bottom of
the solar panel to the pole. Tighten with 9/16” wrench. Do
not over-tighten u-bolts.

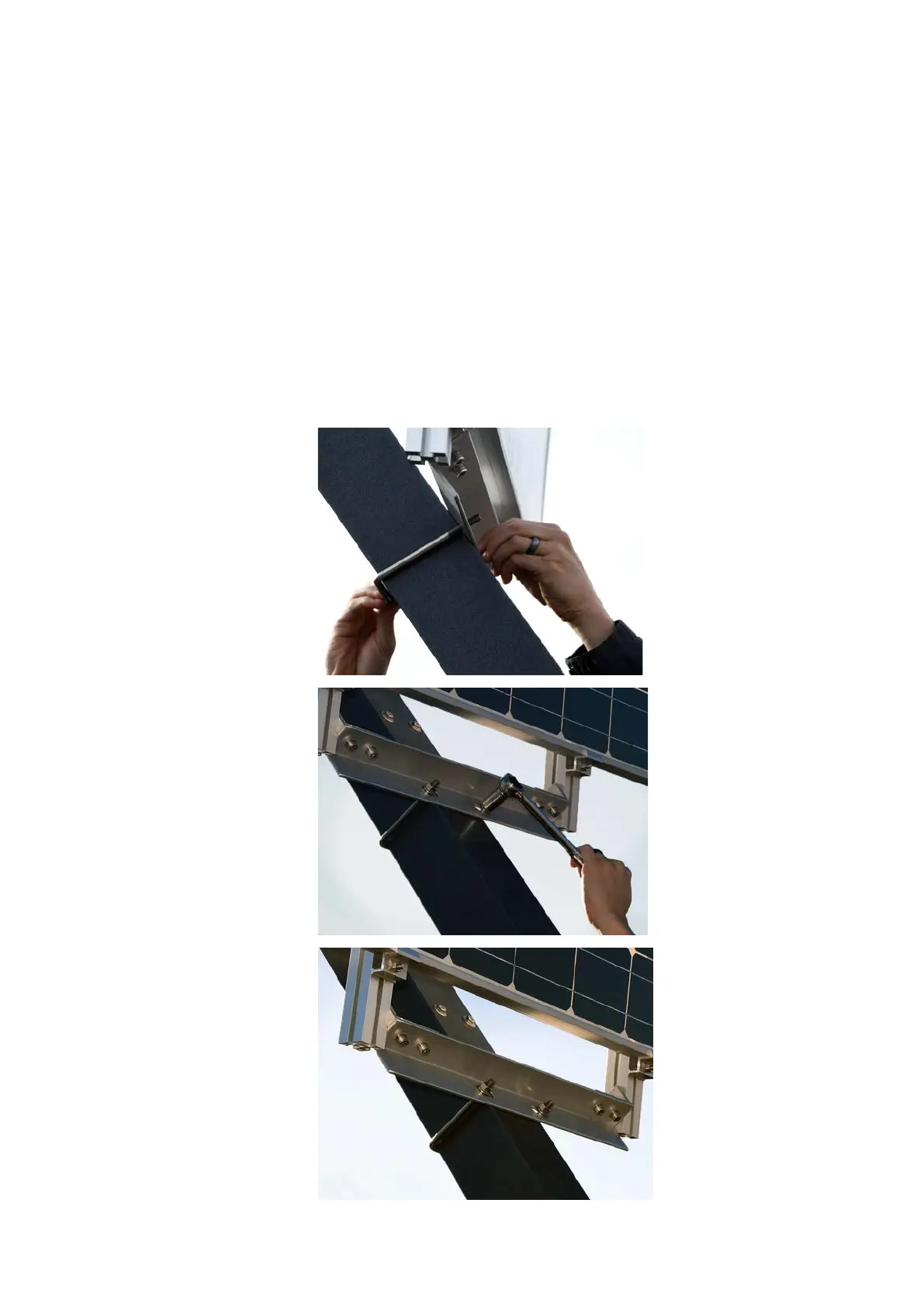

FIGURE 4-1 Solar Panel Install
1
2
3
To Next Page
