NMS045 Reference Manual Solar Installation 4-3
Step 6 The solar cable CBL233-12 will connect the panel with the
charge controller. Feed the cable down the pole to the
bottom hole in the box.

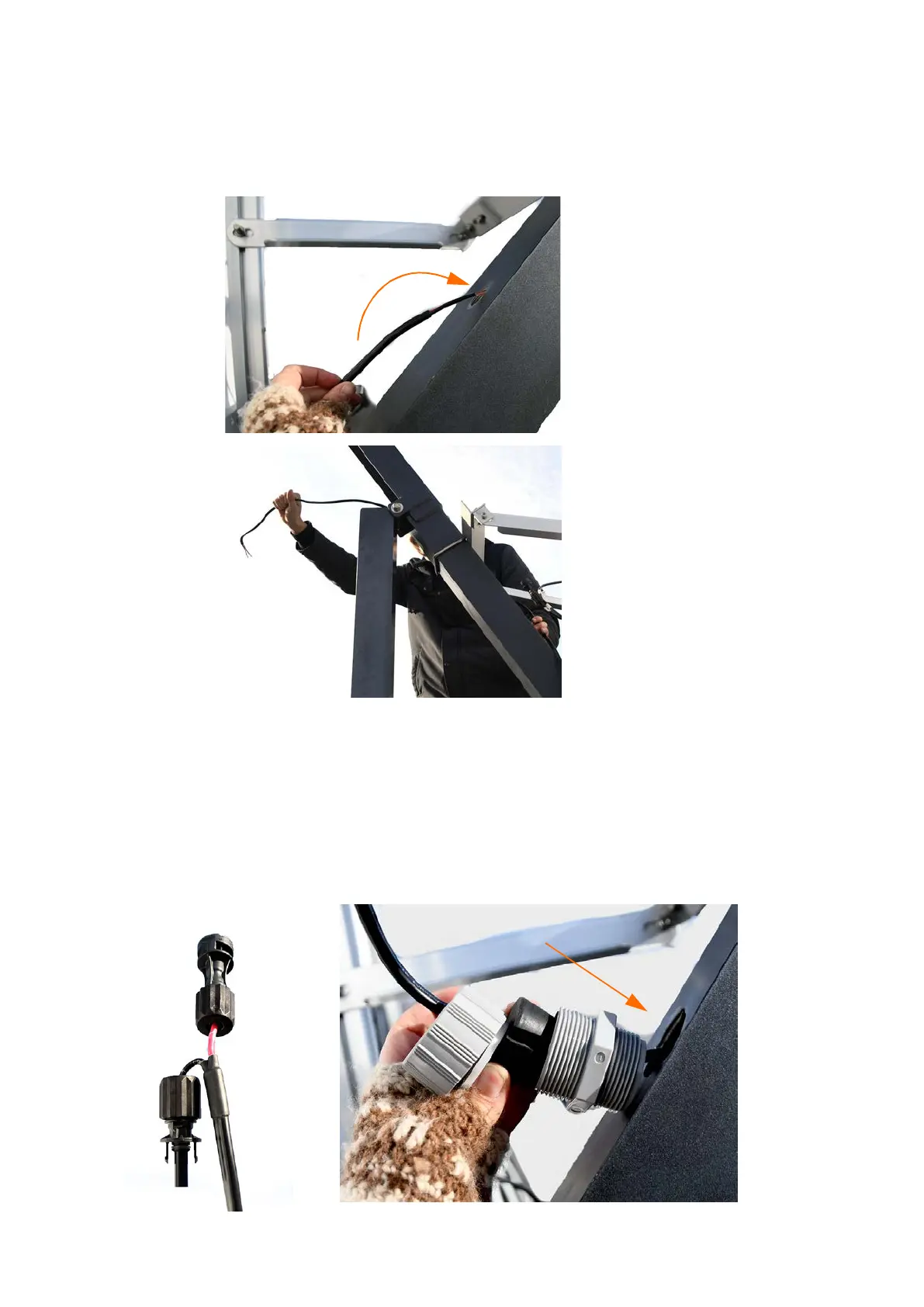

FIGURE 4-2 Feed Cable Down Pole
Step 7 To get the solar cable through the gland bend the
connectors so they are in-line, one pointing up and one
pointing down. Then feed through the cable gland pieces
to be fitted into the hole on the pole. Grease the plug.
Secure down into place, leaving enough slack to connect
the cable to solar panel.
FIGURE 4-3 Gland Install
Feed cable through
hole, out the bend, then
down into the box.
1
2
1
2
