NMS045 Reference Manual Solar Installation 4-4
TAKE NOTE
To disconnect the
solar connectors, use the
included ring tool.
Step 8 Connect cables, ensuring they are completely seated. You
will hear a small snap when they are connected.

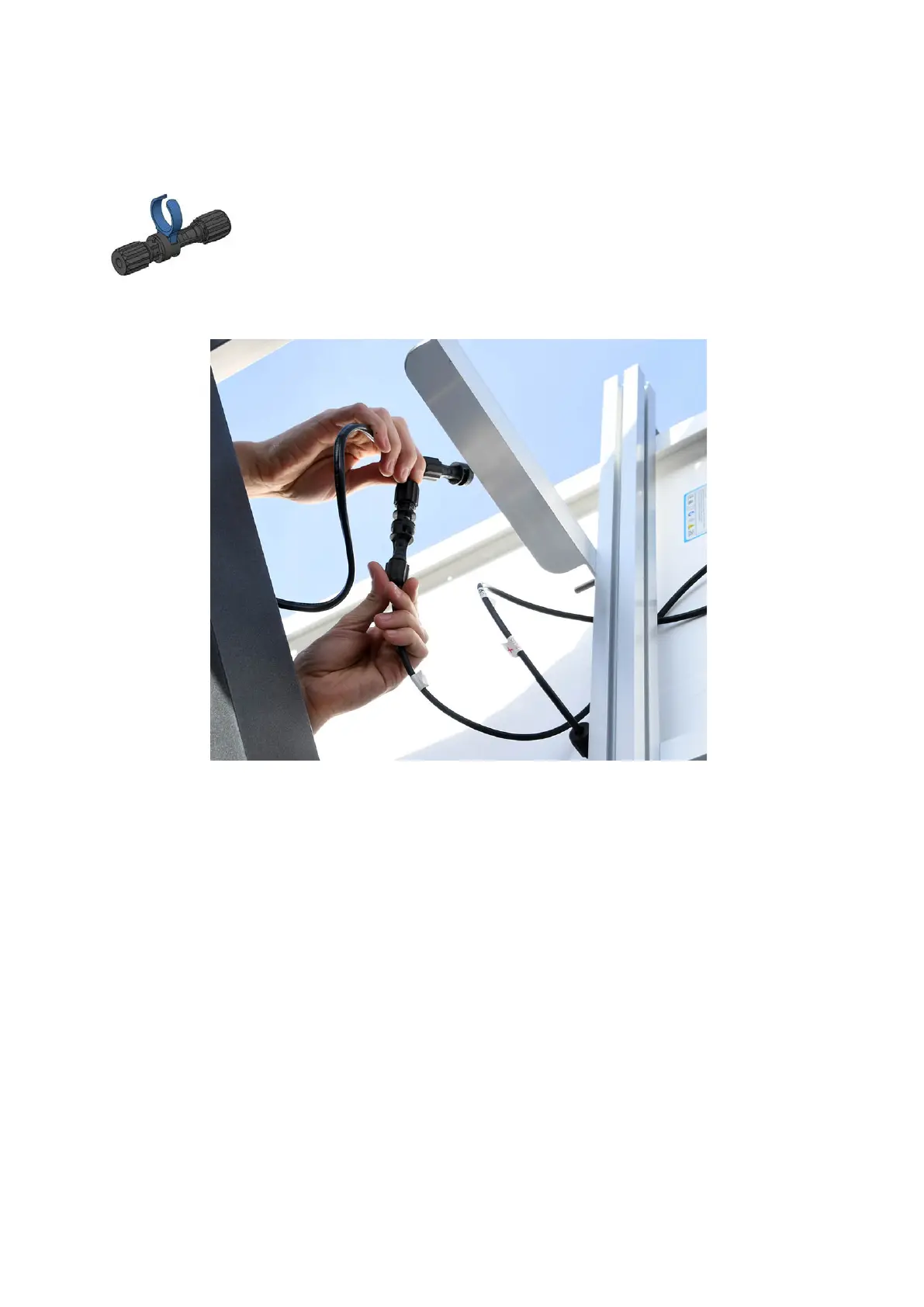

FIGURE 4-4 Connect Solar Cable to Panel
Step 9 Feed CBL233-12 into the box through the bottom hole.
Connect to solar charger on the area marked Panel.
Loosen the screws with a flat head screwdriver, insert the
