NMS045 Reference Manual Weather Installation 4-9
Step 6 Connect the weather or wind sensor to the cable, push the
slack back through the arm, and connect the sensor to the
arm.

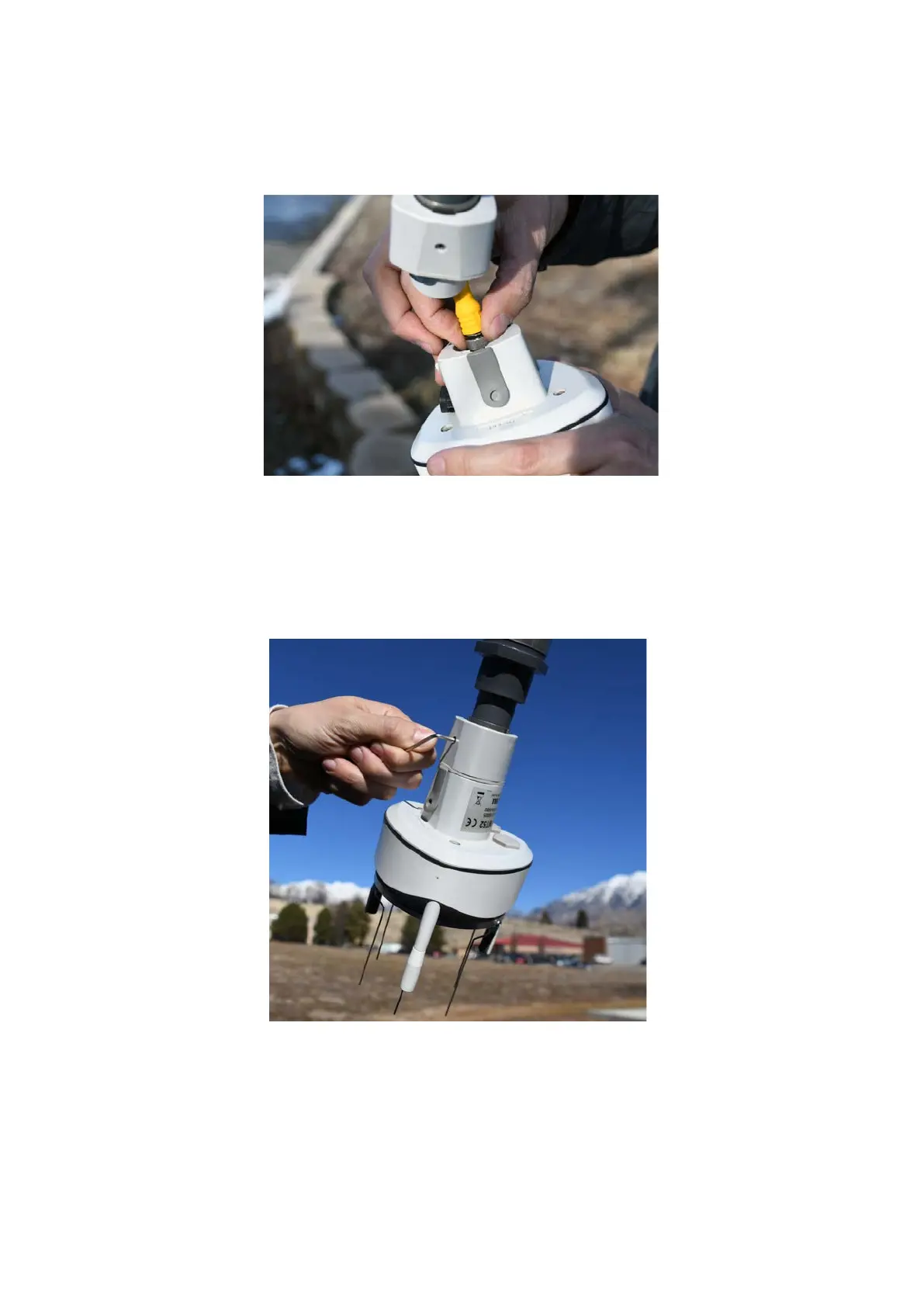

FIGURE 4-11 Feed CBL229-20 Through Weather Arm
Step 7 Ensure that north will point north once the pole is brought
back into place. Once the direction is adjusted, tighten
down the set screw with hex driver included with sensor.
Do not over-tighten.
FIGURE 4-12 Weather/wind station
