NMS045 Reference Manual Weather Installation 4-10

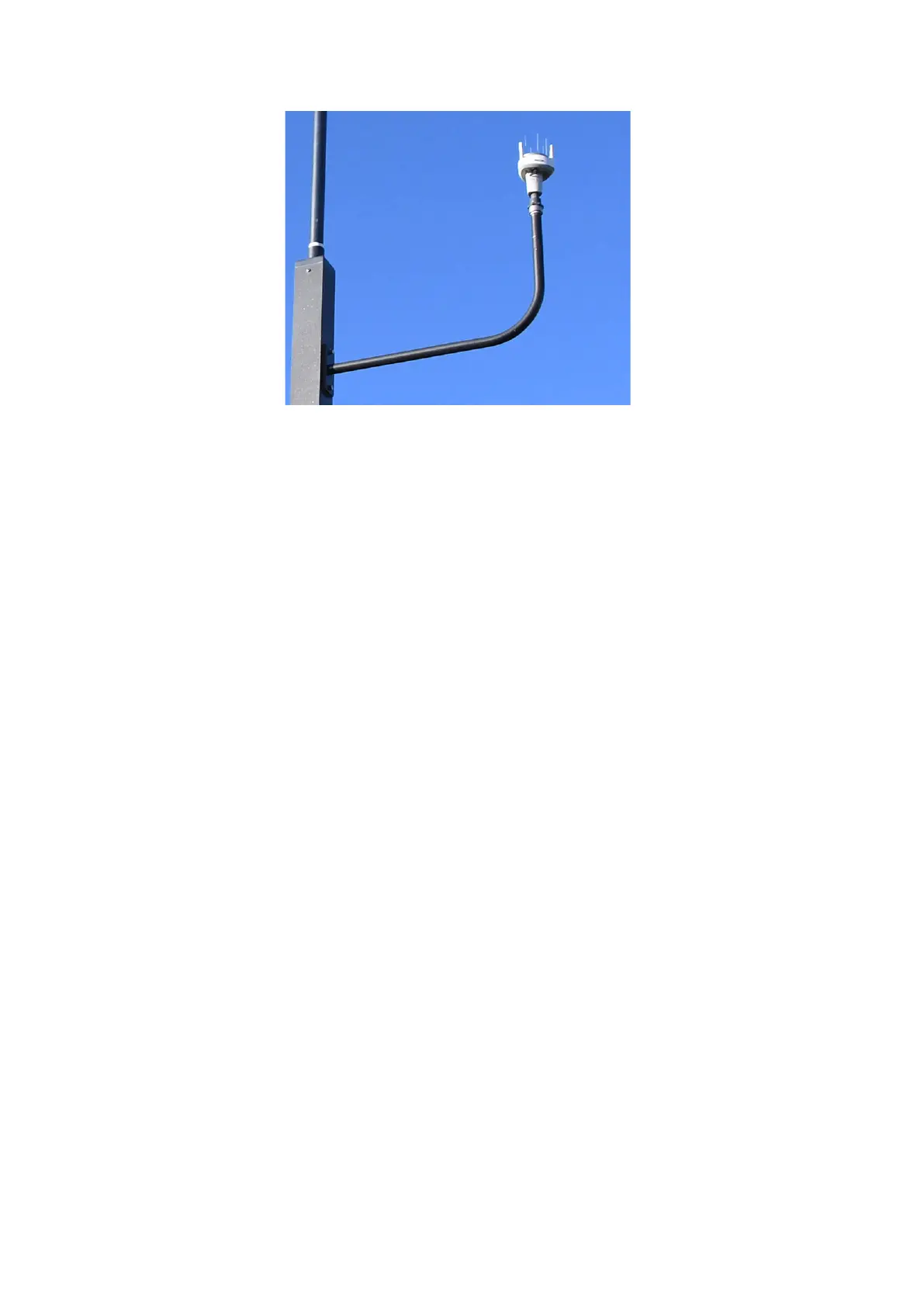

FIGURE 4-13 Wind Station Example
Step 8 Inside the box, route CBL229-20 through the top hole.
Connect to the DVX008A, which should be routed through
the top of the plate and into the USB hub. Route the
Anderson connectors of the CBL220-20 through the top
plate and into the control power block on the line marked
Switched Power Block.
