NMS045 Reference Manual Configuring LD Settings for the RV50X A-15
Step 7 In the left pane, select Telnet/SSH Echo, set the value to Disable and
click Apply.

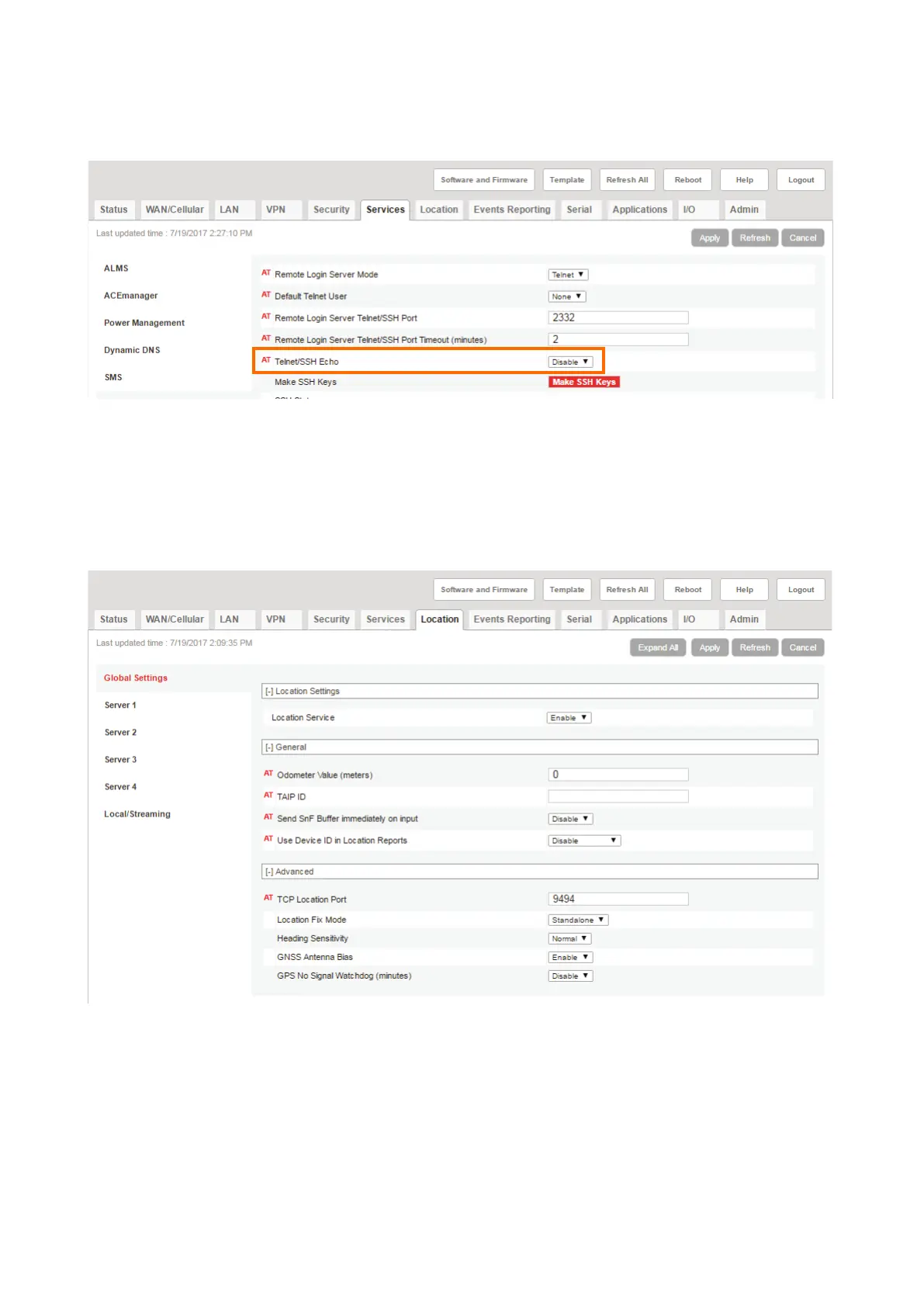

FIGURE A-12 Telnet/SSH
Step 8 Select the Location tab, then in the left pane, select Global Settings.
Step 9 From the Location Service drop-down, choose Enable.
Step 10 Set the TCP Location Port to 9494, and click Apply.
FIGURE A-13 Location Settings
8.
9.
10.
