LTI TruPulse 360R User’s Manual Page 22
Copyright (c) [2017] Laser Technology, Inc. All Rights Reserved. Unauthorized duplication, in whole or in part, is strictly prohibited.
Align the Tilt Sensor
The tilt sensor is aligned during assembly. In the rare event that your TruPulse 360R suffers a severe
drop shock, refer to the instructions below to re-align the tilt sensor.
1. From the Measurement Mode, press
for 4 seconds to access the System Setup Mode. “UnitS”
will appear in the Main Display.
2. Press
to display the “inc” option as shown in Figure #13 below.
3. Press
to select the “inC” option. The message “no" "CAL” appears in the Main Display and
the display should look similar to Figure #13.
Press
or to display the previous or next "CAL" option.
If "no" "CAL" is displayed, press
to exit the "inC" option and return to the Measurement Mode.
If "YES" "CAL" is displayed, press
begin the Tilt Calibration Routine.
The message "C1_Fd" appears in the Main Display.

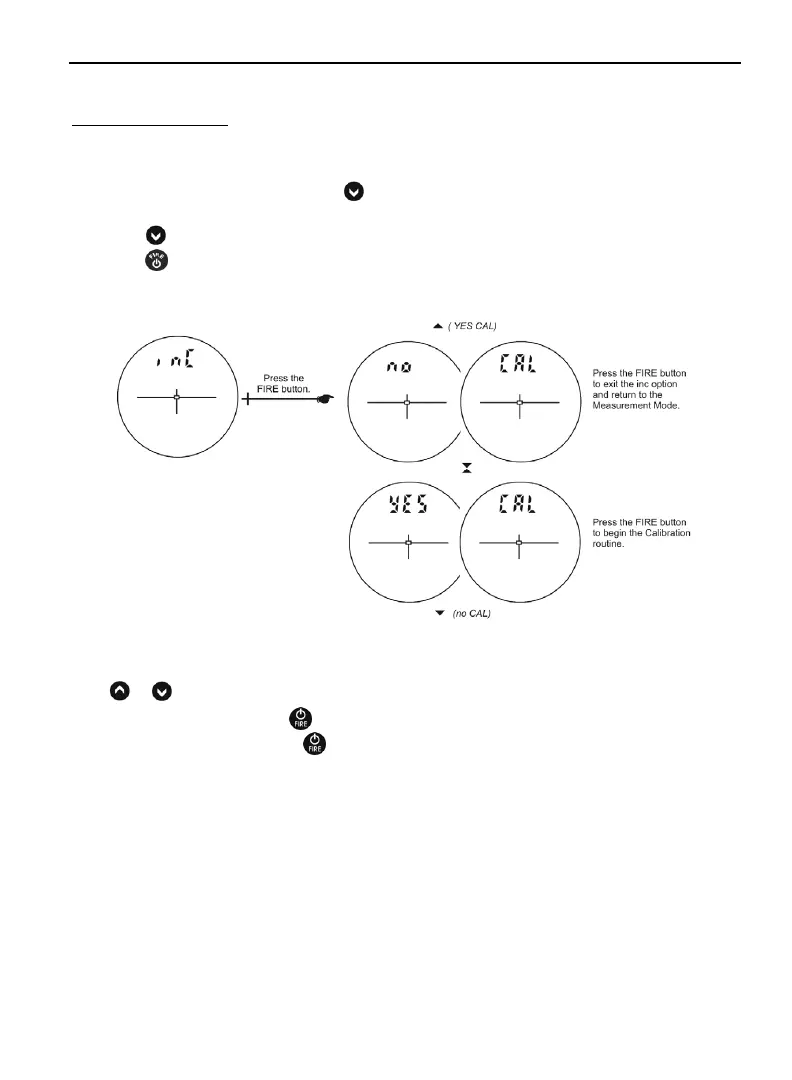

Figure #13
