Section 4 - Basic Operations
Page 10
Copyright© 2023, Laser Technology, Inc. All rights reserved.
Display Indicator Test
To verify that all display indicators are working properly:
1. Start with the TruPulse L2 powered OFF, press-and-hold fire button.
2. Compare the in-scope display to the to verify that all indicators are
working properly (Figure 8).
3. Release FIRE button to start normal operation.
Reticle Crosshair Serves as the aiming point reference, both horizontally and vertically.
Laser Status Visible: laser is firing.
Not Visible: laser is not active.
Continuous Target
Mode
The unit continuously acquires targets and displays measurements
while the FIRE button is held down.
Inclination
Measurement
The angle of inclination between the TruPulse L2 at level and the target.
Slope Distance
Measurement
Straight line distance between the TruPulse L2 and the target.
Horizontal
Distance
Measurement
The level distance between the TruPulse L2 and the plane of the target.
Vertical
Distance
Measurement
The distance between the target and the perpendicular to the path
of the horizontal distance.
2D Missing Line
Measurement
Routine
2D Missing Line Routine finds the connecting vector (or missing line)
between two points.
Height
Measurement
Routine
Three-step height routine. The final calculation represents the
vertical distance between the points on the target represented
by ANG1 and ANG2.
Closest
Target Mode
The unit logs multiple targets while the FIRE button is held down.
The circle denotes that additional targets have been acquired.
Of the targets acquired, the distance to the closest target displays.
Farthest
Target Mode
The unit logs multiple targets while the FIRE button is held down.
The circle denotes that additional targets have been acquired.
Of the targets acquired, the distance to the farthest target displays.
Filter Mode The laser's sensitivity is reduced so it only detects measurements
returned from a reflector. The optional mechanical receive foliage
filter must be used in conjunction with this mode.

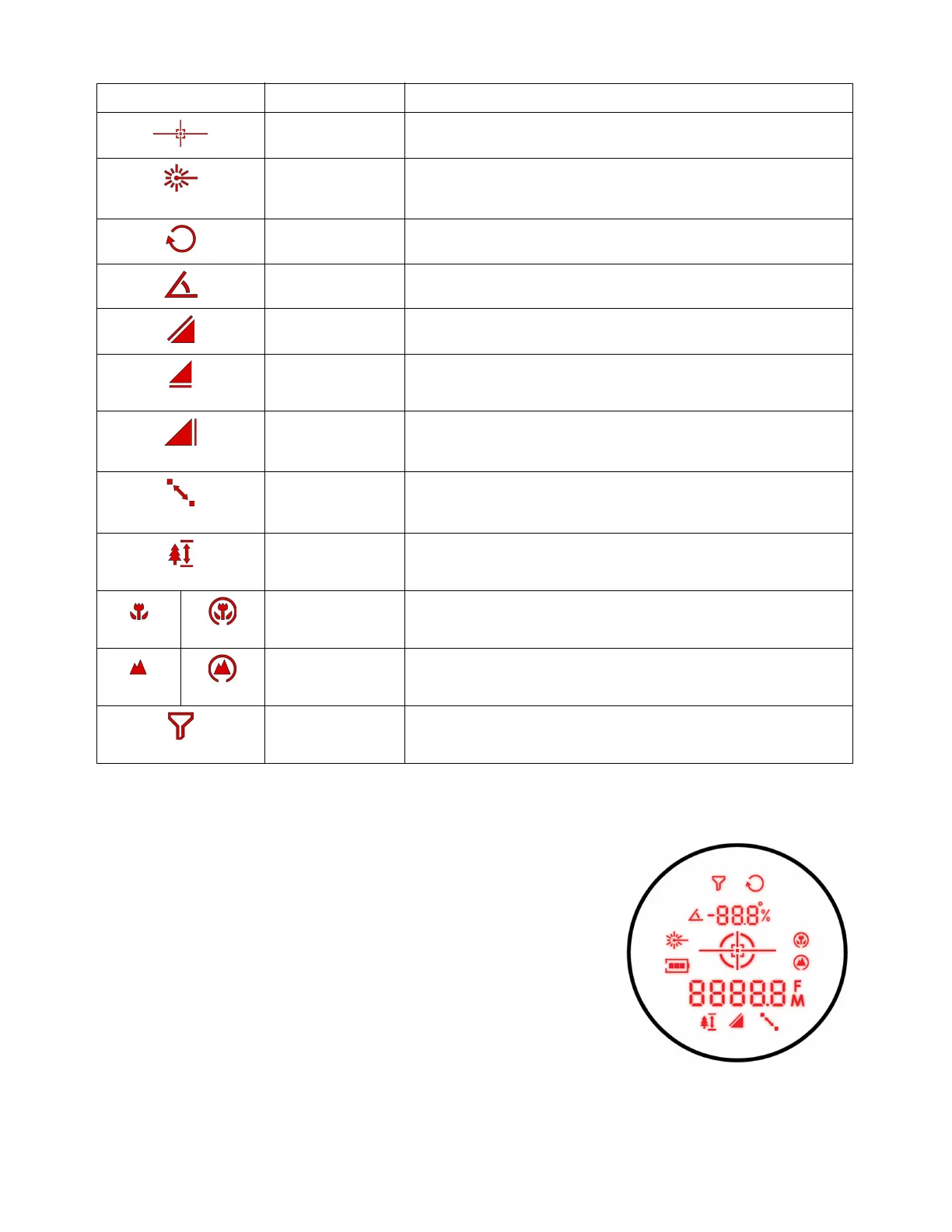

Display Icons Description Definition
