2D Missing Line Routine
The 2D Missing Line Routine calculates distances and angles to describe the relationship between two points in
two-dimensional space (connecting vector). This routine is ideal for remote slope determinations and changes in
elevation from one location.
The simple routine prompts you to take two shots to targets: “Shot 1" and “Shot 2". The TruPulse L2 uses the results
to calculate values between the two points: slope distance, inclination, horizontal distance, and vertical distance
from Shot 1 to Shot 2.
• Slope Distance: Length of the missing line.
• Inclination between point #1 and point #2.
• Horizontal Distance: Horizontal component of the missing line.
• Vertical Distance: Change in elevation between point #1 and point #2.
NOTE See 2D Missing Line Routine Workflow on Page 19.
2D Missing Line Tips:
• Position yourself where shot 1 and 2 are made looking in the same direction with a clear line of site to both targets.
• The Vertical Distance Missing Line calculated value will always be accurate no matter which direction
shot 1 and 2 are taken.
• If Shot 1 is longer and higher than Shot 2, the VD value will be negative.
= Measured
= Calculated

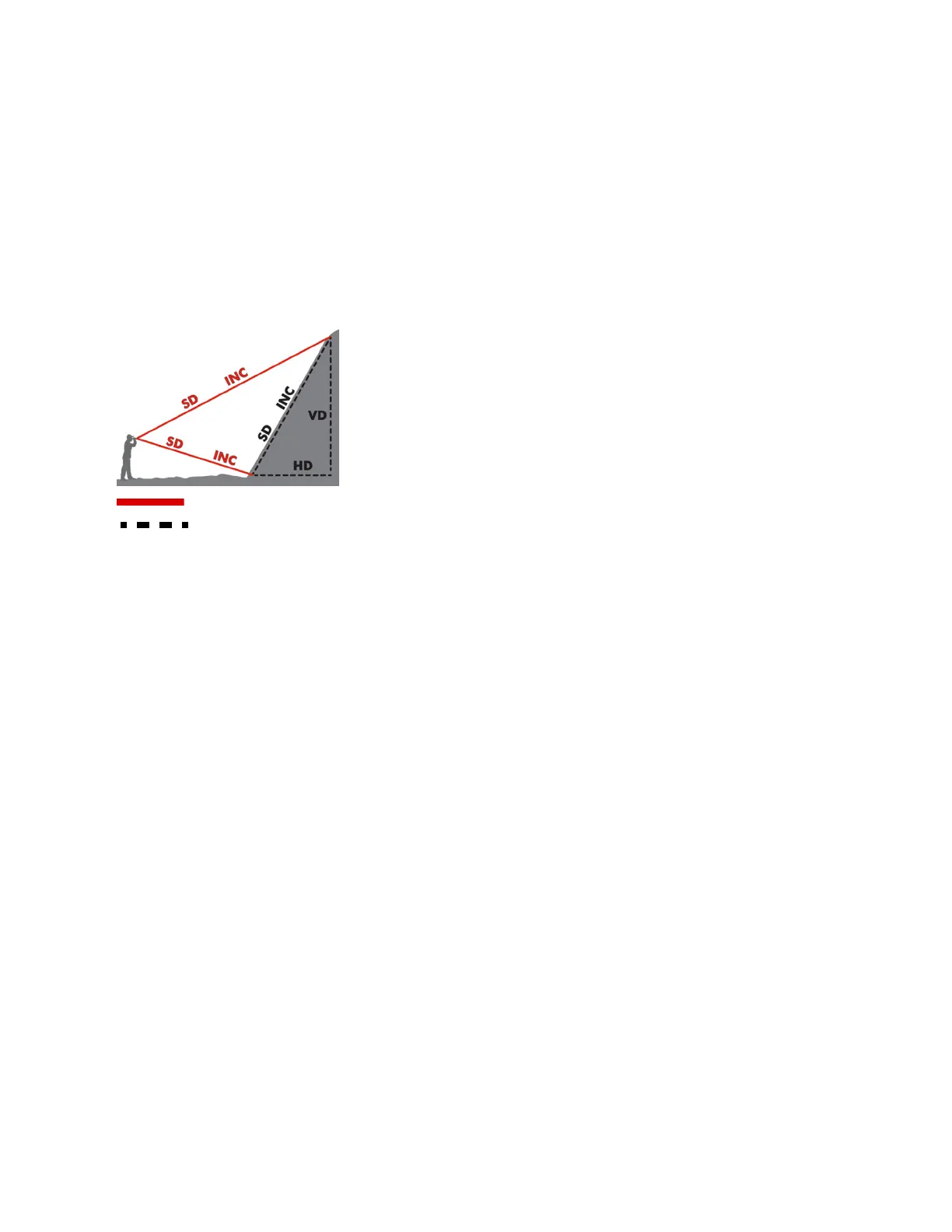

Figure 18
1. Press Up or Down Buttons to navigate to the Missing Line routine.
• “Shot.1”, Missing Line, Inclination, and Horizontal Distance icons
are displayed.
2. Aim where you have a clear line of sight at target, press-and-hold fire
button.
• The laser indicator will be displayed.
• When the measurement is acquired the Shot.1 results will flash and
be displayed.
3. Unit auto sequence to "Shot.2" displayed.
4. Aim where you have a clear line of sight at target to the seconds target,
press-and-hold fire button.
• The laser indicator will be displayed. When the measurement is
acquired Shot.2 results will flash and be displayed.
5. Unit auto sequences to the calculated Horizontal Distance & Inclination
values will flash and be displayed.
6. Press the Up arrow to scroll through the Slope and Vertical calculated
values from shot 1 to shot 2. P
• Press FIRE button to return to step 1.
• Press Down arrow to re-measure the Shot.2,
• Continue to press Down arrow to return to step 1.
